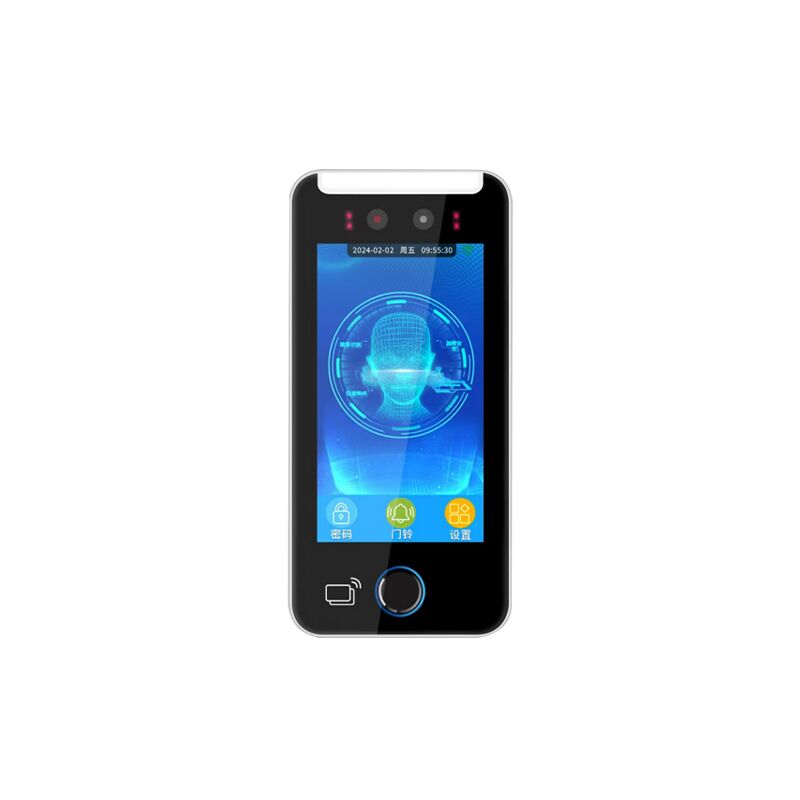

WR502 binocular face recognition terminal adopts wide dynamic high-definition face recognition camera, which can adapt to harsh environments such as strong light and weak light, and has the characteristics of fast recognition speed, high accuracy, and large list library capacity. It supports fingerprint door opening and clocking in. Users can quickly unlock the door and clock in with fingerprints to ensure safe and convenient access management and attendance management. It can be used with application management systems such as face site real-name management system, face access control attendance management system, visitor management system, etc. It is perfectly suitable for complex application scenarios such as communities, campuses, hospitals, scenic spots, hotels, shopping malls, corporate office buildings, public service places, construction sites, etc. that require temperature monitoring, identity recognition and access control.
| Shenyuan | 12V 2A |
| Operating temperature | -20℃-60℃ |
| Storage temperature | -20℃-60℃ |
| Power consumption | 10W（MAX） |
| Installation method | Wall Mounting |
| Protection level | IP54 |
| Device size | 175*83*15mm |
The WR502 Binocular Face Recognition Terminal combines ultra-fast facial recognition and high-precision fingerprint scanning in one powerful device.
Engineered with a wide dynamic HD camera, it delivers 99.9% accuracy even in challenging lighting (direct sunlight/low light), while supporting 10,000+ face templates and 5,000+ fingerprints for large-scale deployments.It is ideal for offices, schools, hospitals, construction sites, and public venues.
FAQ
Q: Why Choose WR502?
A: 1.Military-Grade Security – Anti-spoofing liveness detection + encrypted data storage
2.Plug-and-Play Setup – Easy integration with existing security infrastructure
3.Scalable for Smart Ecosystems – IoT-ready for future upgrades
| Screen: | |
| Size | 5-inch IPS LCD screen |
| Resolution | 480×854 |
| Touchscreen | support |
| Configuration: | |
| CPU | High-performance AI processor |
| NPU | Independent computing power 0.8T |
| Operating system | Linux |
| Storage capacity | EMMC 8GB |
| Network Module | Ethernet, wireless (Wi-Fi), 4G network (optional) |
| Audio | 2W/8Ω |
| Card reader | IC/ID card reader (optional) |
| System functions: | |
| Face database | 5000 faces |
| Attendance record | 100,000 |
| 1:N face recognition | Support |
| Liveness detection | Support |
| Stranger detection | Support |
| Recognition distance | 50-150cm |
| Recognition speed | <1 second |
| Recognition rate | 99.99% |
| UI interface configuration | Support |
| Device remote upgrade | Support |
| API interface | Device management, personnel/photo management, communication records, system settings |
| Deployment method | Support public cloud deployment, private deployment, LAN/stand-alone use |
| Camera: | |
| Resolution | Dual 100w pixels |
| Type | Binocular camera |
| Aperture | F2.2 |
| Focus distance | 50-150cm |
| White balance | Automatic |
| Fill light | LED/infrared dual fill light |
 |
 |
 |
|
Library/dormitory door |
Site/factory |
Campus entrance and exit |
 |
 |
 |
|
Scenic area entrance and exit |
Park commuting attendance |
Office building access control |
The WR502 Binocular Face Recognition Terminal combines ultra-fast facial recognition and high-precision fingerprint scanning in one powerful device.
Engineered with a wide dynamic HD camera, it delivers 99.9% accuracy even in challenging lighting (direct sunlight/low light), while supporting 10,000+ face templates and 5,000+ fingerprints for large-scale deployments.It is ideal for offices, schools, hospitals, construction sites, and public venues.
FAQ
Q: Why Choose WR502?
A: 1.Military-Grade Security – Anti-spoofing liveness detection + encrypted data storage
2.Plug-and-Play Setup – Easy integration with existing security infrastructure
3.Scalable for Smart Ecosystems – IoT-ready for future upgrades
| Screen: | |
| Size | 5-inch IPS LCD screen |
| Resolution | 480×854 |
| Touchscreen | support |
| Configuration: | |
| CPU | High-performance AI processor |
| NPU | Independent computing power 0.8T |
| Operating system | Linux |
| Storage capacity | EMMC 8GB |
| Network Module | Ethernet, wireless (Wi-Fi), 4G network (optional) |
| Audio | 2W/8Ω |
| Card reader | IC/ID card reader (optional) |
| System functions: | |
| Face database | 5000 faces |
| Attendance record | 100,000 |
| 1:N face recognition | Support |
| Liveness detection | Support |
| Stranger detection | Support |
| Recognition distance | 50-150cm |
| Recognition speed | <1 second |
| Recognition rate | 99.99% |
| UI interface configuration | Support |
| Device remote upgrade | Support |
| API interface | Device management, personnel/photo management, communication records, system settings |
| Deployment method | Support public cloud deployment, private deployment, LAN/stand-alone use |
| Camera: | |
| Resolution | Dual 100w pixels |
| Type | Binocular camera |
| Aperture | F2.2 |
| Focus distance | 50-150cm |
| White balance | Automatic |
| Fill light | LED/infrared dual fill light |
|
|
|
|
Library/dormitory door |
Site/factory |
Campus entrance and exit |
|
|
|
|
Scenic area entrance and exit |
Park commuting attendance |
Office building access control |
