Highlights:
(1) RK3288 (Cortex-A17) 4 cores;
(2) 4 dual-screen display modes can be selected, including (LVDS+EDP)/(EDP+EDP)/(LVDS+MIPI)/(EDP+MIPI);
(3) Stable Android7.1 system, providing rich custom APIs to facilitate customer application development;
(4) Rich peripheral interfaces, 5 USB ports, 6 serial ports (configurable as 4 RS232 and 2 TTL);
(5) Support onboard PCIE-4G;

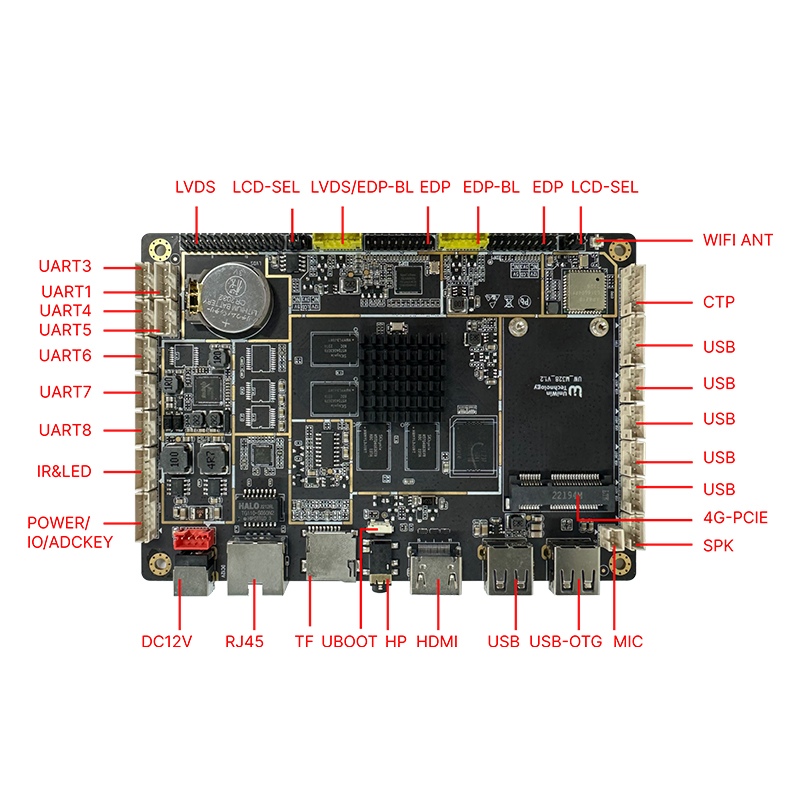

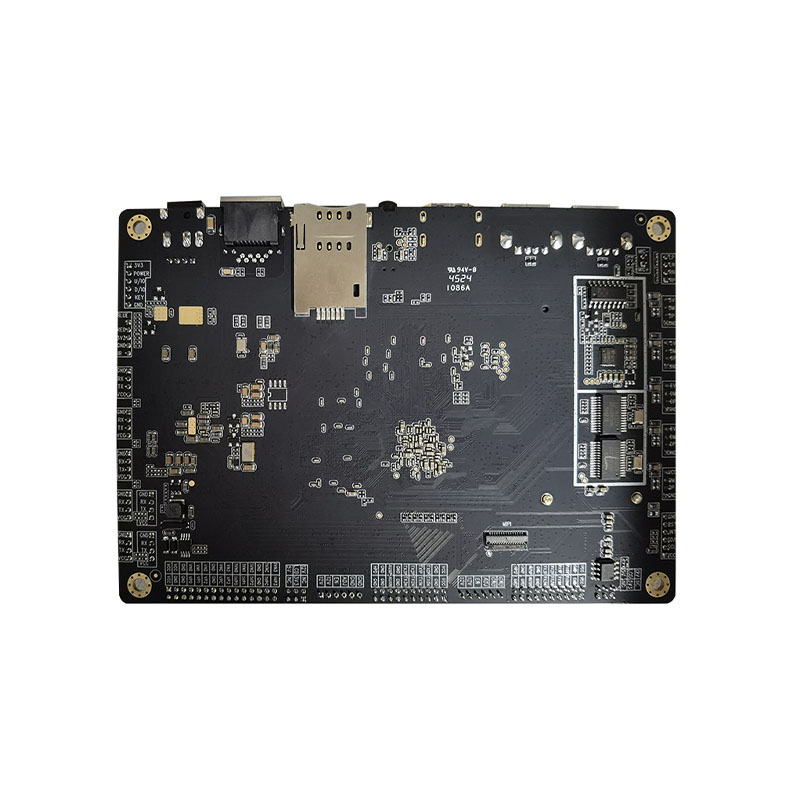

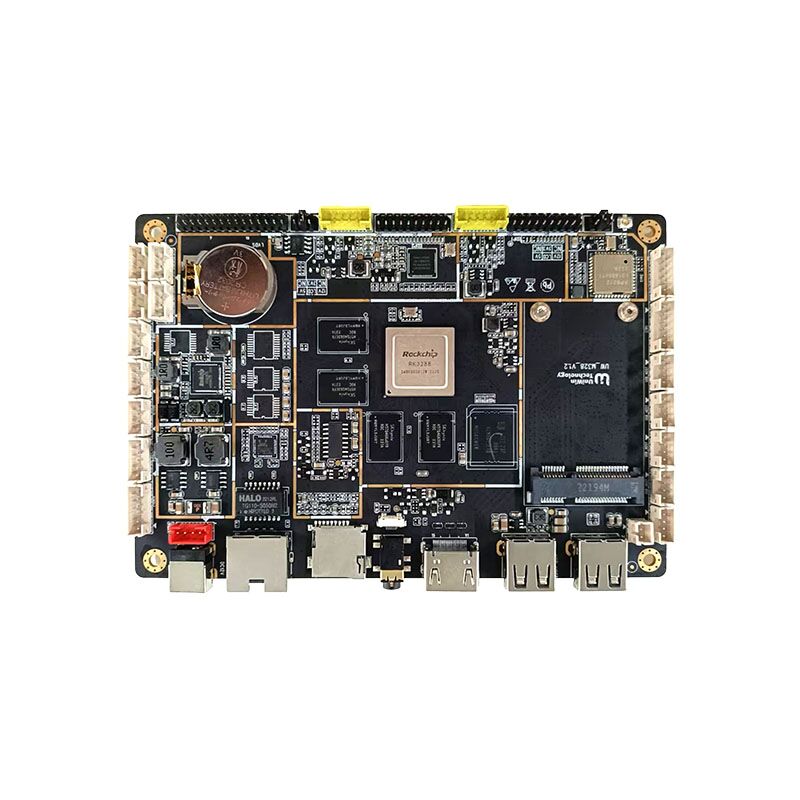

Rockchip RK3288 Industrial Board M328 is High-Performance Dual-Screen Solution.
Robust 4-core CPU(Cortex-A17 ) is for demanding embedded applications and this board can support flexible Dual-Display Options which is ideal for digital signage, kiosks, and control systems.
FAQ
Q: which solutions is ideal for M328?
A: 1.Interactive kiosks
2.Industrial control systems
3.Digital signage
4.Smart retail & hospitality solutions
| Operating system | Android 7.1/10.0 |
| CPU | Rockchip RK3288, quad-core ARM Cortex A17 1.8 GHz |
| GPU | Quad-core ARM Mali-T764 MP |
| Memory (DDR) | DDR3 1GB/2GB/3GB/4GB (labeled 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| External memory card | Support up to 128GB |
|
Display Interface |
1*LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Supports maximum resolution 1920×1080, supports 7″-100″ display |
| 2*EDP interface (single channel 6 or 8 bits). Supports maximum resolution 1920×1080 7″-100″ display | |
| 1*Support HDMI interface, 4K high-definition output | |
| 1*MIPI interface (single 8-bit). Supports maximum resolution of 1920×1080, 3.5″-13″ display | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (supports multi-point resistive touch, multi-point capacitive touch) Supports USB infrared, resistive, capacitive touch screen |
|
Audio |
Dual speaker interface, 8Ω 2W*2/4Ω 3W*2 |
| Built-in 3.5 headphone jack with 4 sections supports headset function | |
| 3G/4G | Support 4g, onboard 4g-PCIE seat |
| USB | 7*USB HOST (2 onboard, 5 external) |
| Serial Port | 3*TTL (1 channel is the default Debug port) 4*RS232 (optional) |
| IO | Support external power button, external button board or light board, with multiple available interrupt IO ports |
|
Network |
RJ45 standard interface, 100M Ethernet network |
| Equipped with Bluetooth + wifi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support Bluetooth 4.0 protocol, can support Bluetooth 4.2 protocol (optional) | |
| Power supply | DC12V/3A (4PIN2.0 socket 12V power supply) |
| Size | 148mm x102mm x11mm |
 |
 |
 |
|
New Retail |

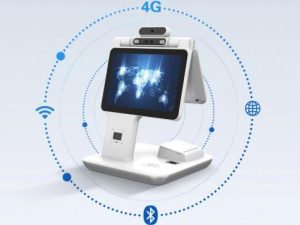

Android all-in-one machine |
Cash register |
 |
 |
 |
|
Electronic class sign |

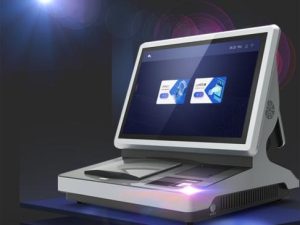

Visitor Machine |
Face recognition express locker |
