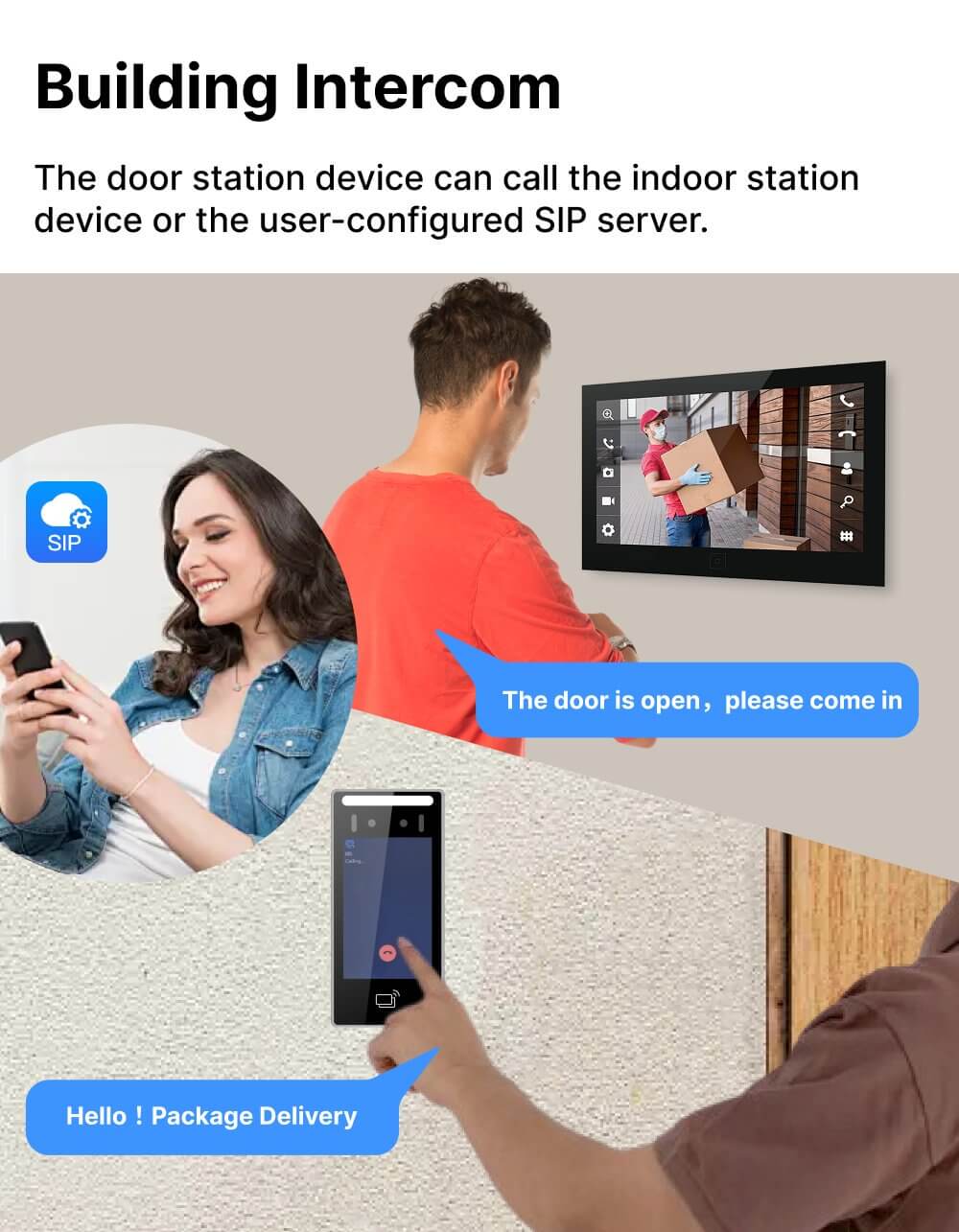

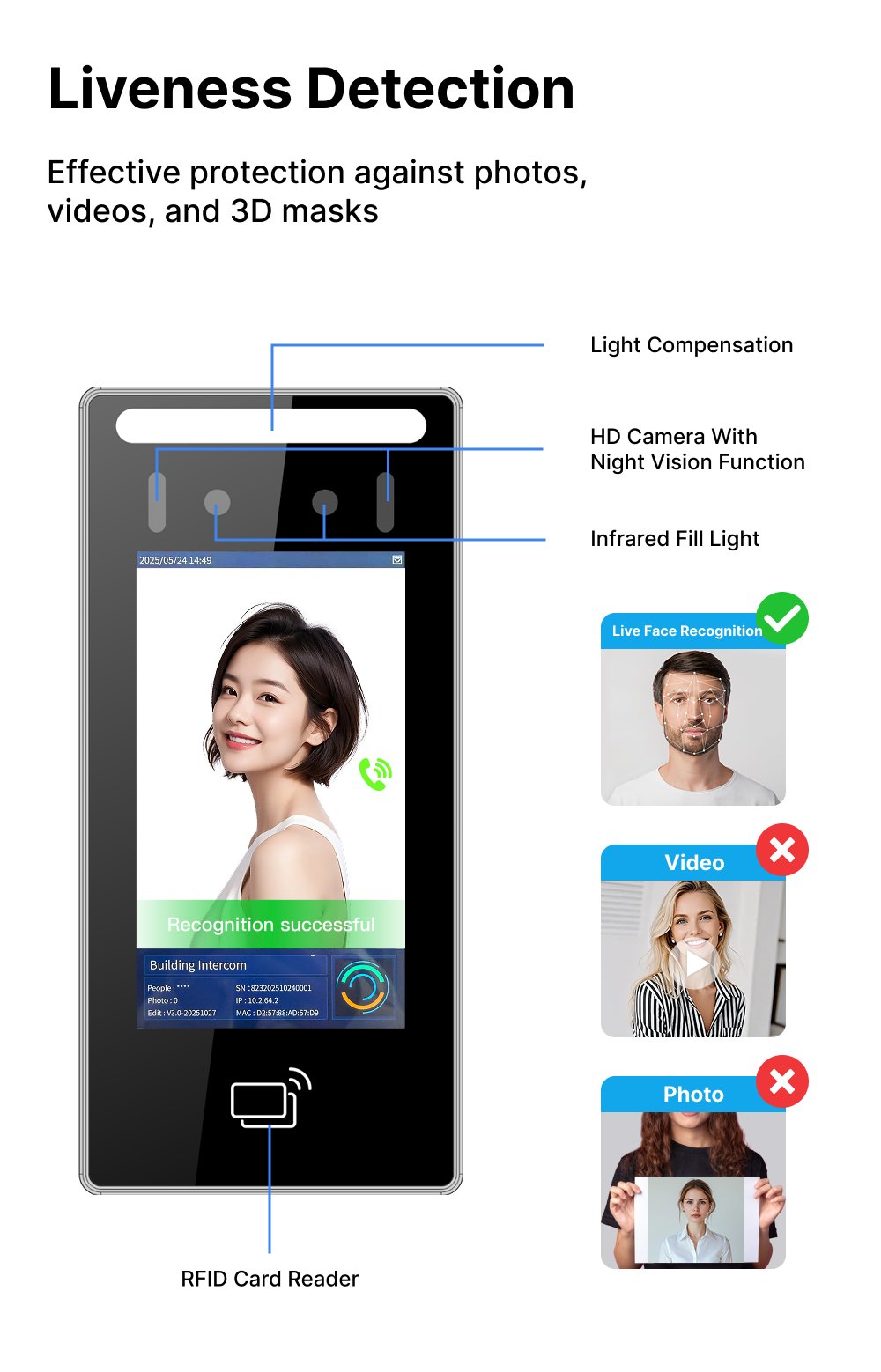

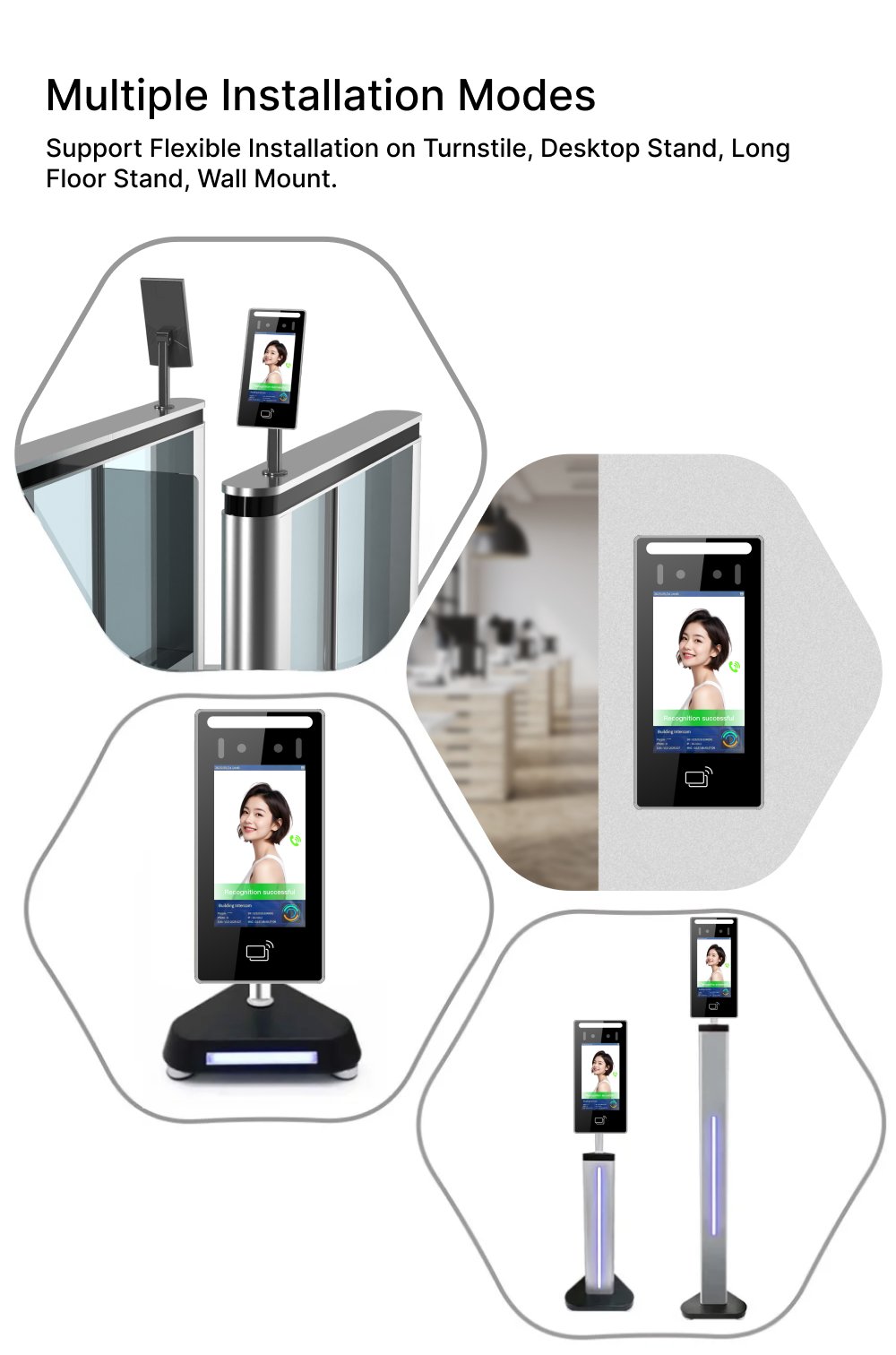

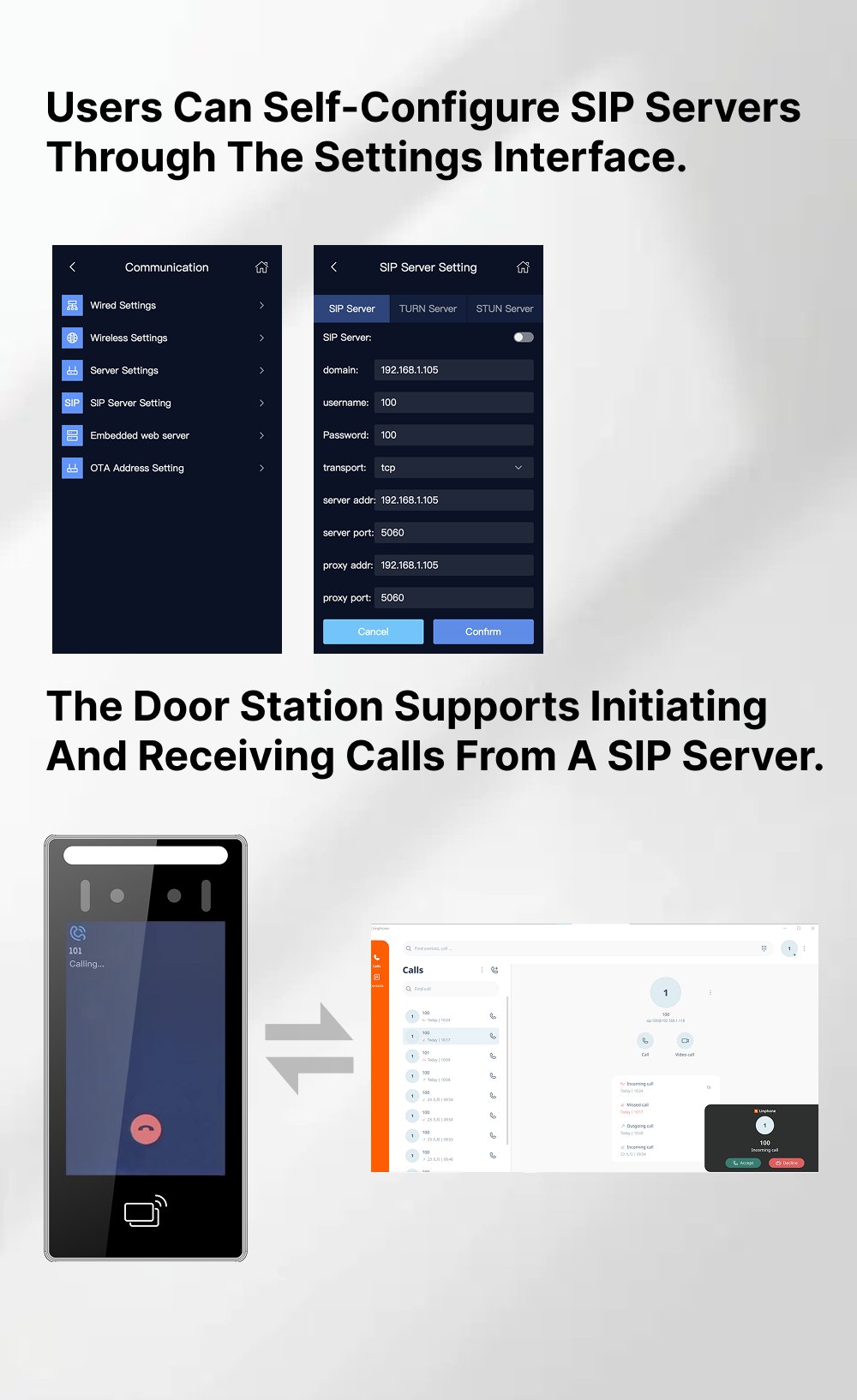

The WO523M is an advanced 5-inch SIP video intercom and high-capacity face recognition terminal designed for secure and versatile access control. It features a large, clear HD IPS touchscreen and supports multiple authentication methods, including facial recognition (with a standard 20,000 face capacity,), passcode entry, and IC/RFID card access. Equipped with liveness detection to prevent spoofing, it reliably performs in various lighting conditions and adapts to facial changes. The device also functions as a full SIP video intercom for individual or group calling and can be integrated with a user-configured SIP server. With an IP55 waterproof rating and flexible installation options for turnstiles, walls, and desktops, it is suitable for large-scale scenarios such as business parks, schools, and government units.
WO523M Specification
8-Inch SIP Video Intercom & High-Capacity Face Recognition Terminal
Face Recognition
Technical Specifications
Display & Hardware
| Parameter | Specification |
| Screen Size | 5.0-inch IPS LCD |
| Resolution | 480×854 pixels |
| Touchscreen | Capacitive touch support |
| Processor | Dual-core AI processor |
| NPU | 1.0T independent computing power |
| OS | Linux |
| Storage | 8GB/16GB/32GB optional (default 8GB) |
| Memory | Built-in DDR3L 256MB |
Camera Specifications
| Parameter | Specification |
| Camera Type | Dual-lens wide dynamic camera |
| Resolution | Dual 2MP |
| Aperture | F2.2 |
| Focus Distance | 50-150cm |
| Fill Light | LED + infrared dual fill light |
| Night Vision | Supported |
Network & Connectivity
| Parameter | Specification |
| Wired Network | Ethernet |
| Wireless Network | Wi-Fi (2.4GHz supported) |
| Cellular Network | 4G module (optional) |
| Audio Output | 2W/8Ω speaker |
| Audio Input | Built-in microphone |
Recognition Performance
| Parameter | Specification |
| Face Capacity | 20,000 |
| Attendance Records | 200,000 |
| Recognition Distance | 0.5-1.5 meters |
| Recognition Speed | <1 second |
| Recognition Rate | ≥99.99% |
| Adaptation | Glasses, masks, hats, makeup supported |
Other Specifications
| Parameter | Specification |
| Power supply | DC12V 2A |
| Power consumption | 24W (MAX) |

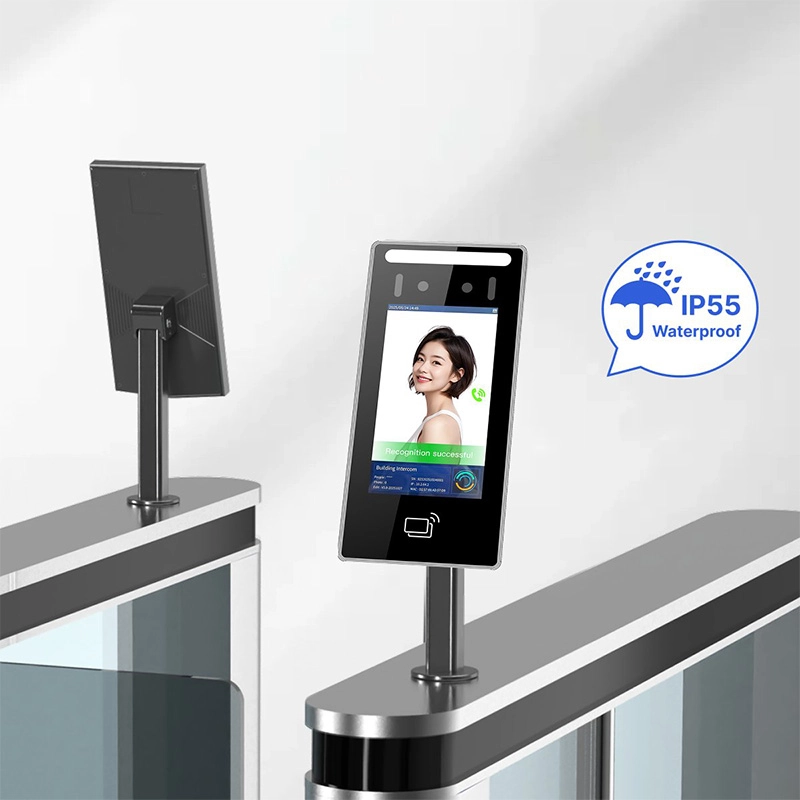

| Protection Rating | IP55 |
| Operating Temperature | -20°C ~ 70°C |
| Installation | Wall Mounting |

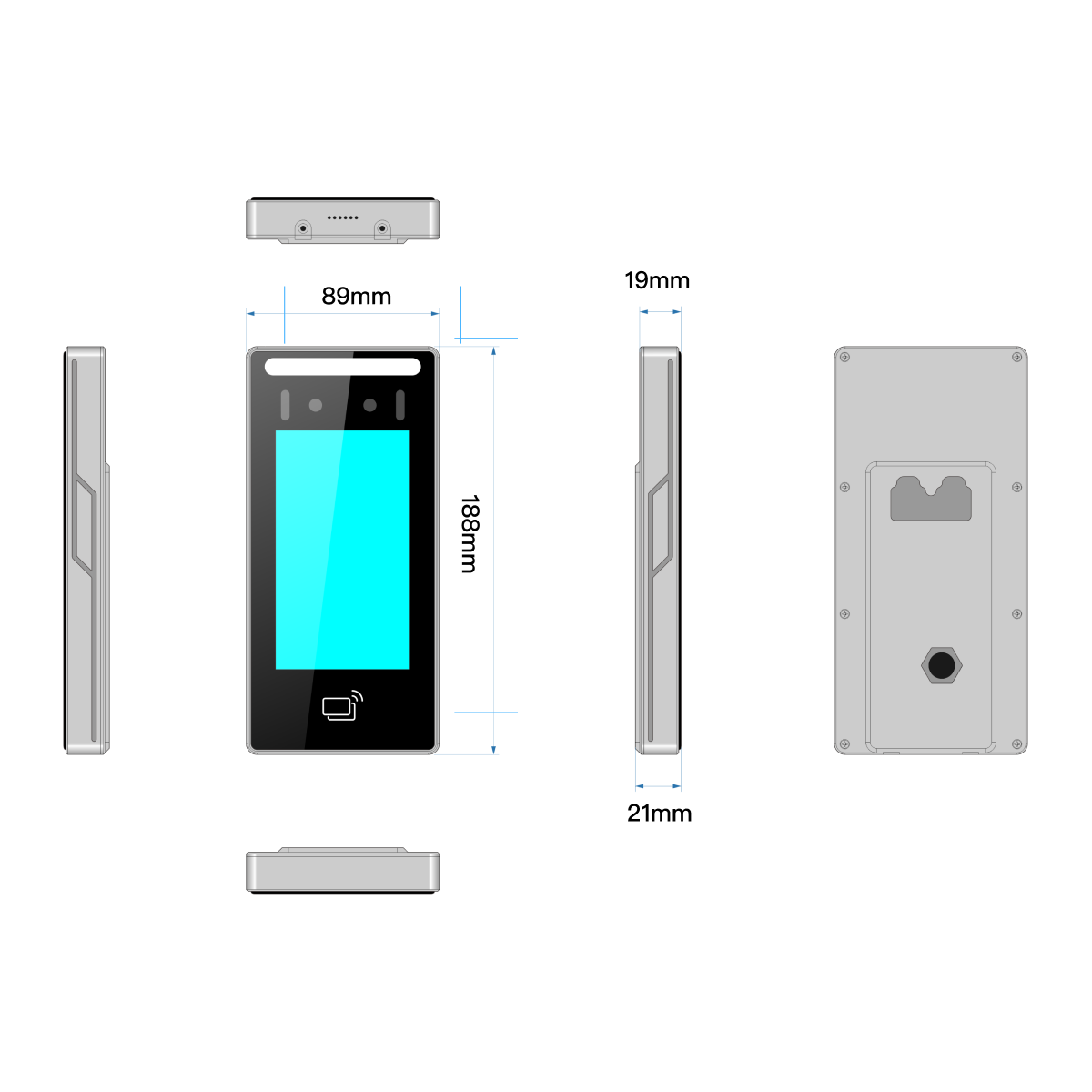

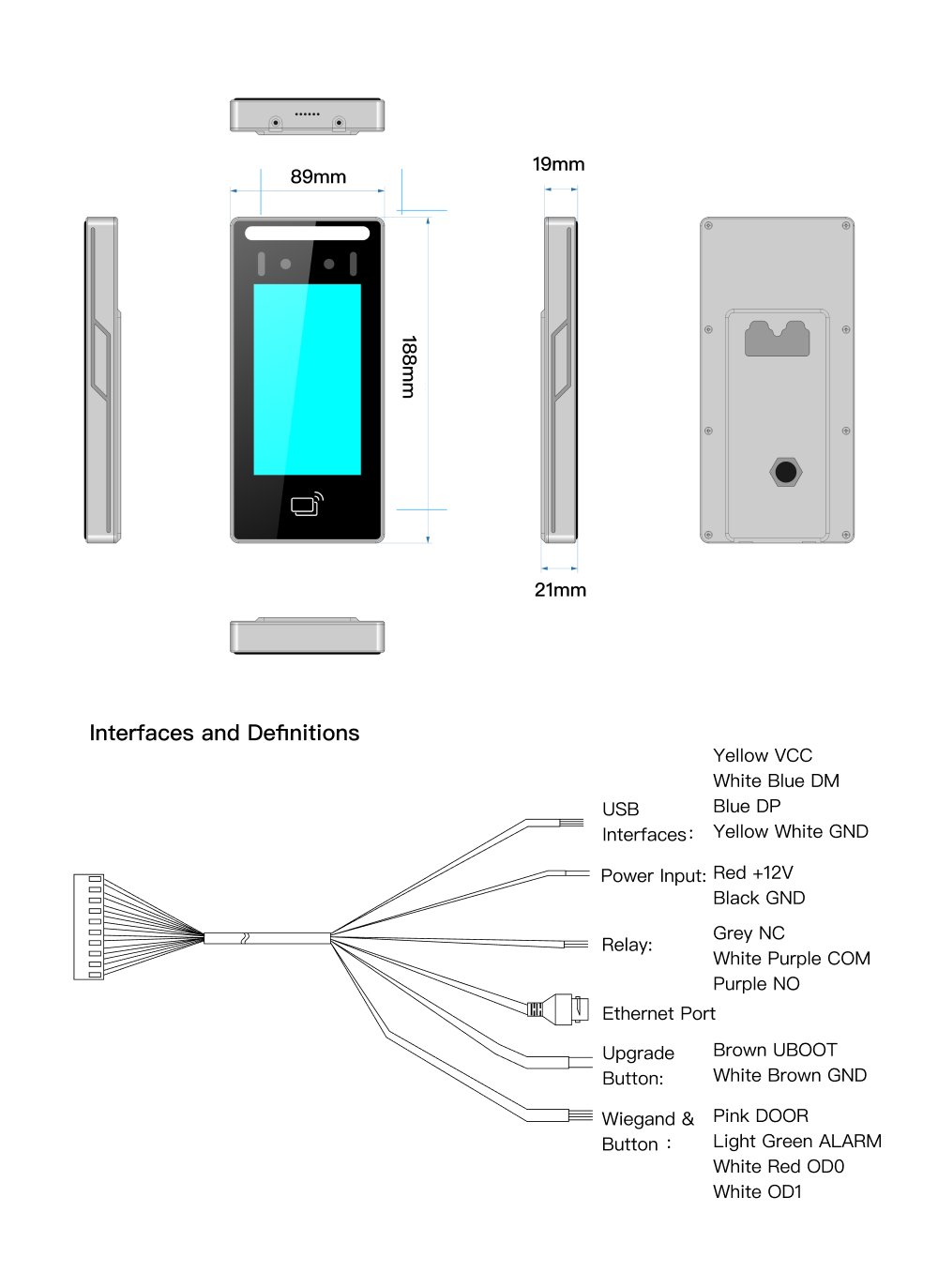

| Device size | 89*188*19mm |
 |
 |
 |
|
School |
Enterprise Park |
Apartment Community |
