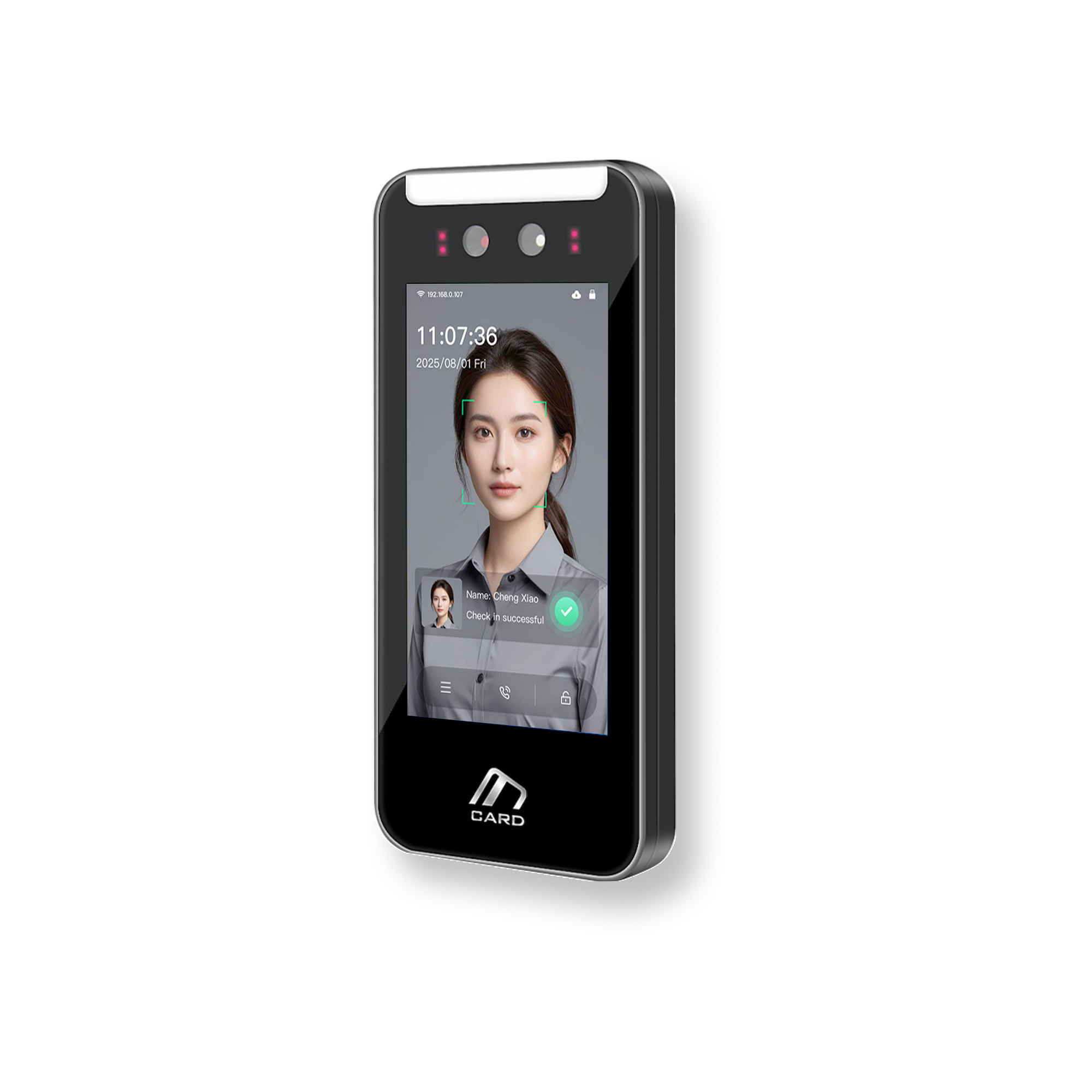

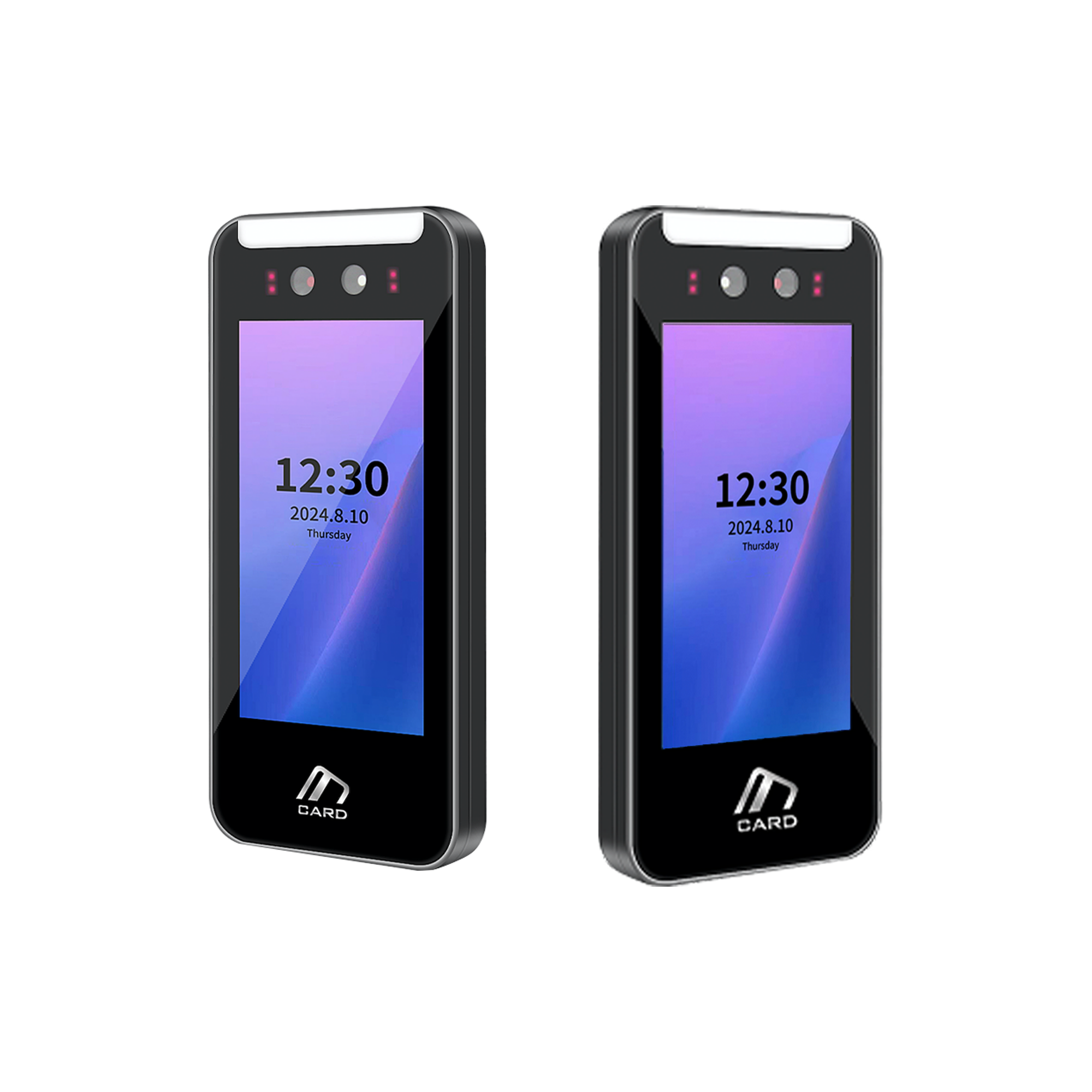

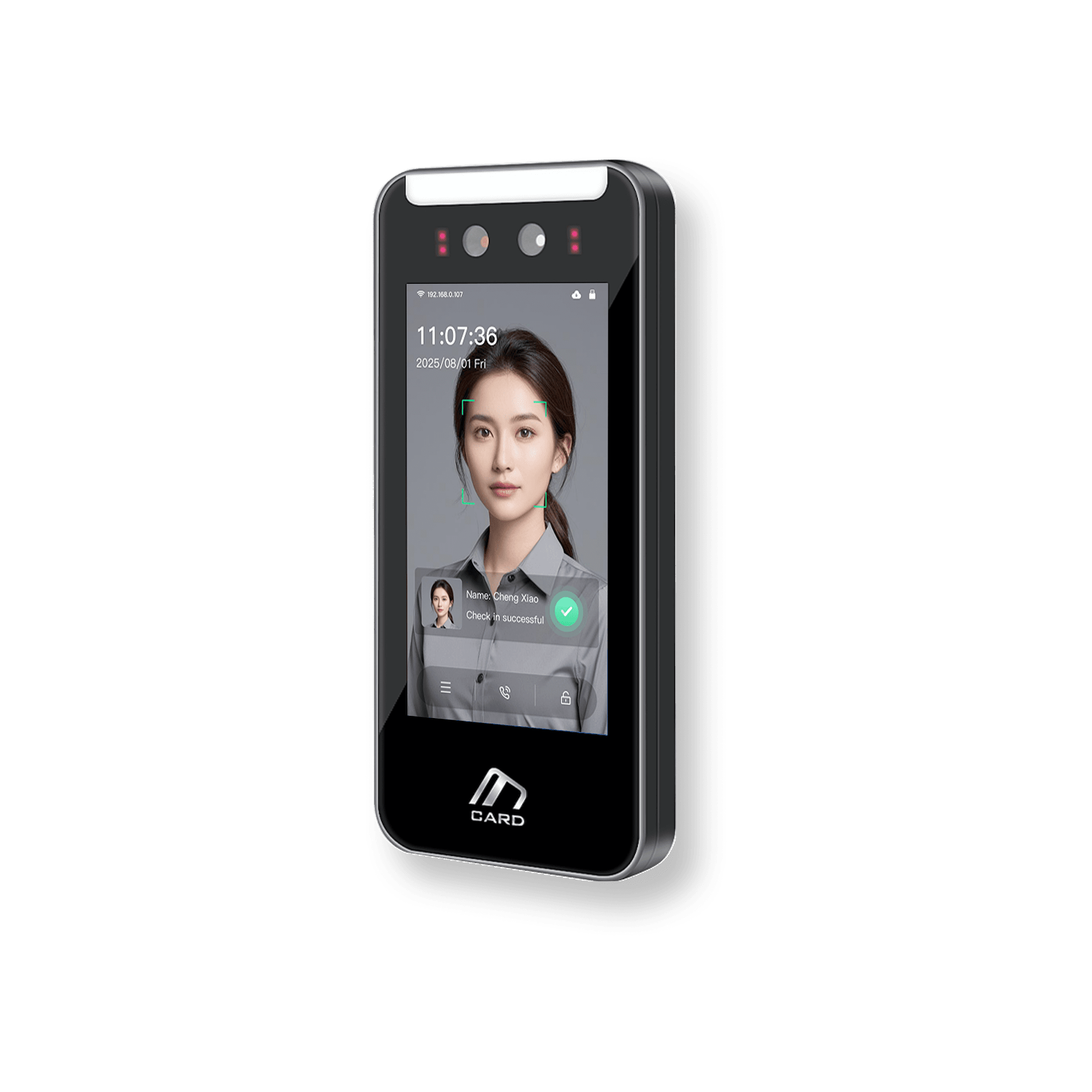

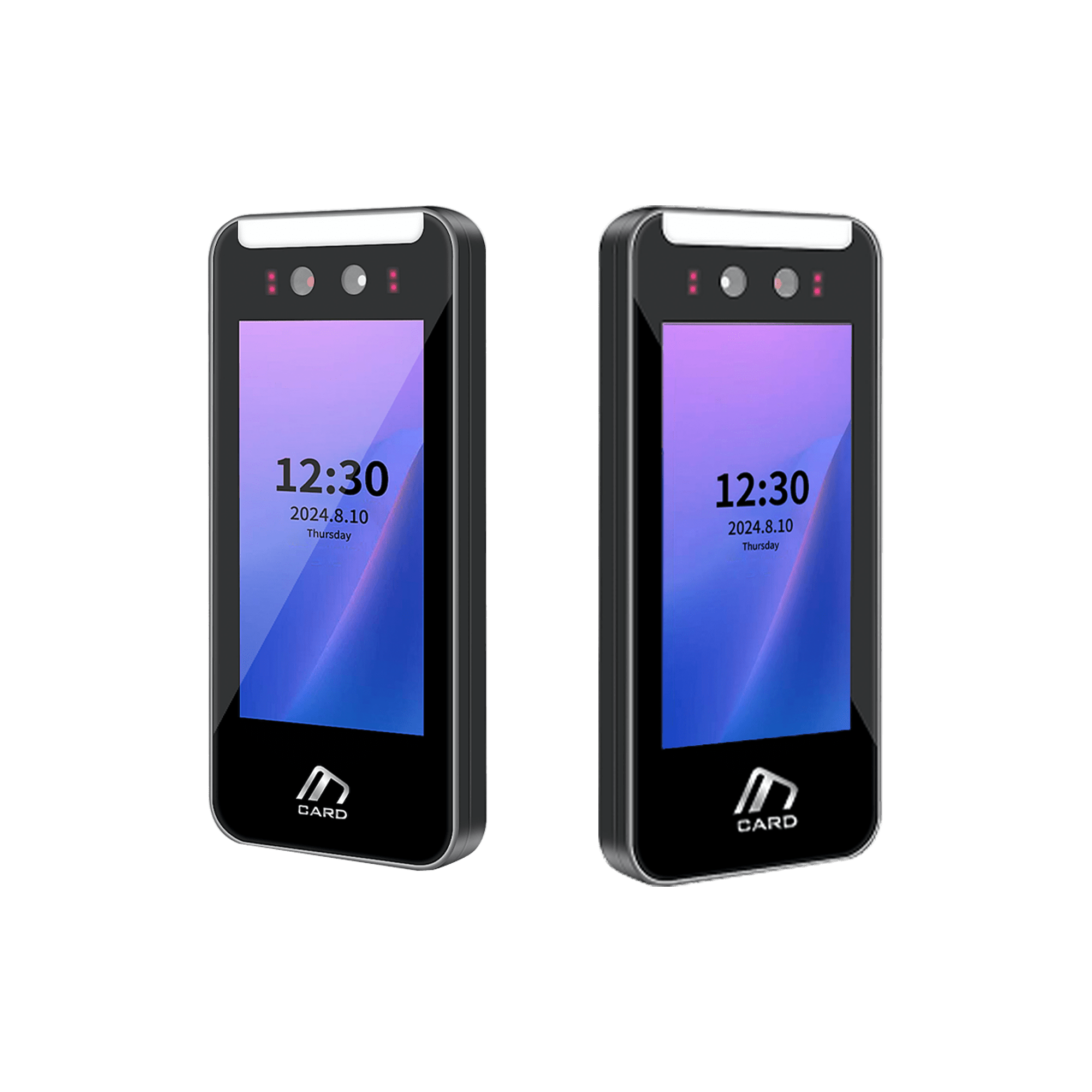

WO501 is a state-of-the-art, all-in-one terminal designed for modern access control and time attendance management. It leverages advanced AI deep learning algorithms to deliver fast and accurate facial recognition, even in challenging lighting conditions. Equipped with a robust 5-inch IPS touchscreen, dual cameras, and full-duplex video intercom capabilities, it serves as a secure gateway for office buildings, factories, gated communities, and other high-traffic facilities. It seamlessly integrates access control, video verification, and attendance logging into a single, sleek device.
WO501 Specification

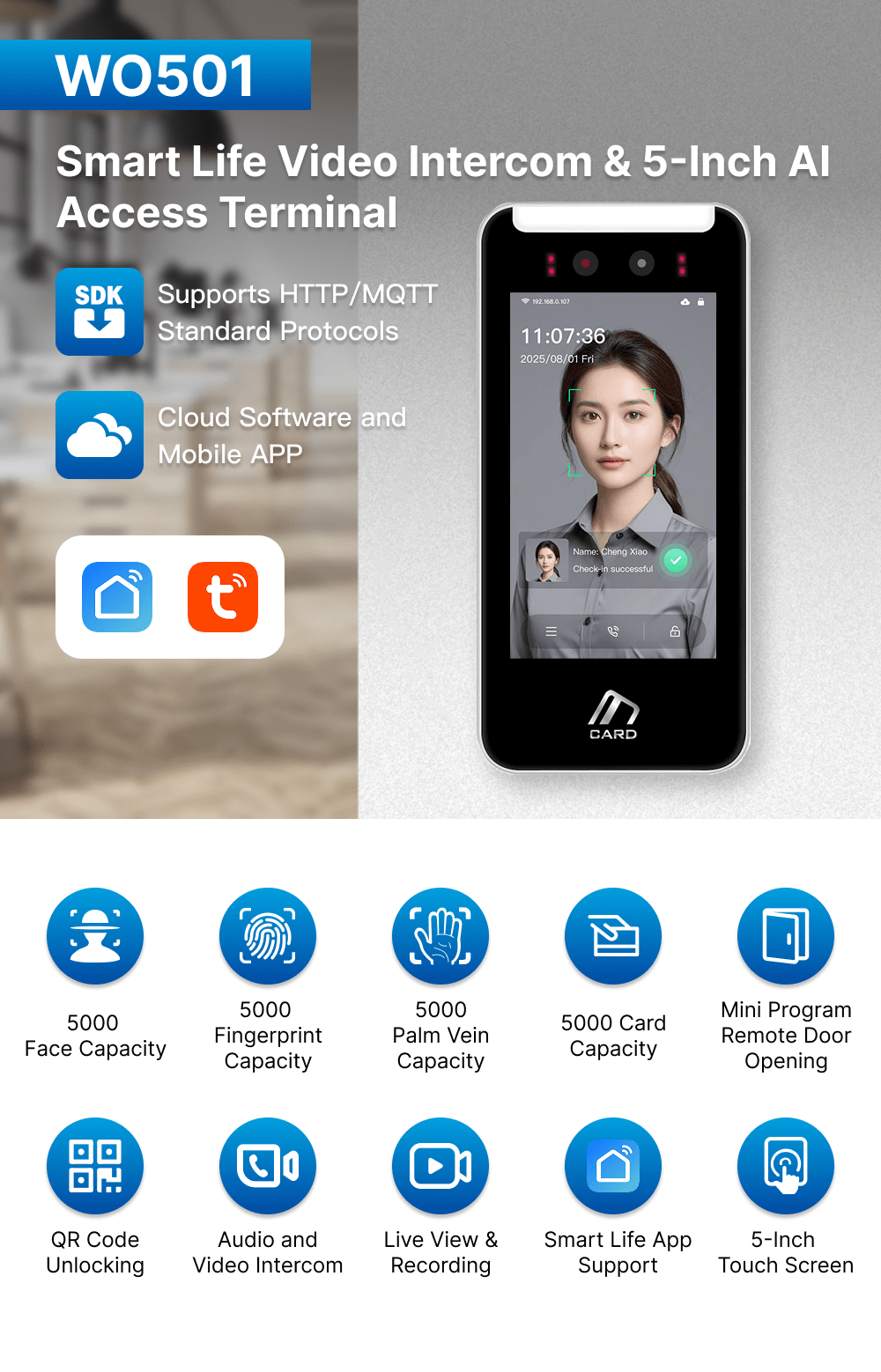

Smart Life Video Intercom & 5-Inch AI Access Terminal
Face Recognition
Technical Specifications
Display & Hardware
| Parameter | Specification |
| Screen Size | 5.0-inch IPS LCD |
| Resolution | 480×854 pixels |
| Touchscreen | Capacitive touch support |
| Processor | High-performance AI processor |
| NPU | 0.8T independent computing power |
| OS | Linux system |
| Storage | 8G eMMC |
Camera Specifications
| Parameter | Specification |
| Camera Type | Binocular camera |
| Resolution | 1.0 megapixel |
| Aperture | F2.2 |
| Focus Distance | 50-150cm |
| Fill Light | LED + infrared dual fill light |
| Night Vision | Supported |
Network & Connectivity
| Parameter | Specification |
| Wired Network | 10/100M Ethernet |
| Wireless Network | Wi-Fi (2.4GHz supported) |
| Cellular Network | 4G module (optional) |
| Audio Output | 2W/8Ω speaker |
| Audio Input | Built-in microphone |

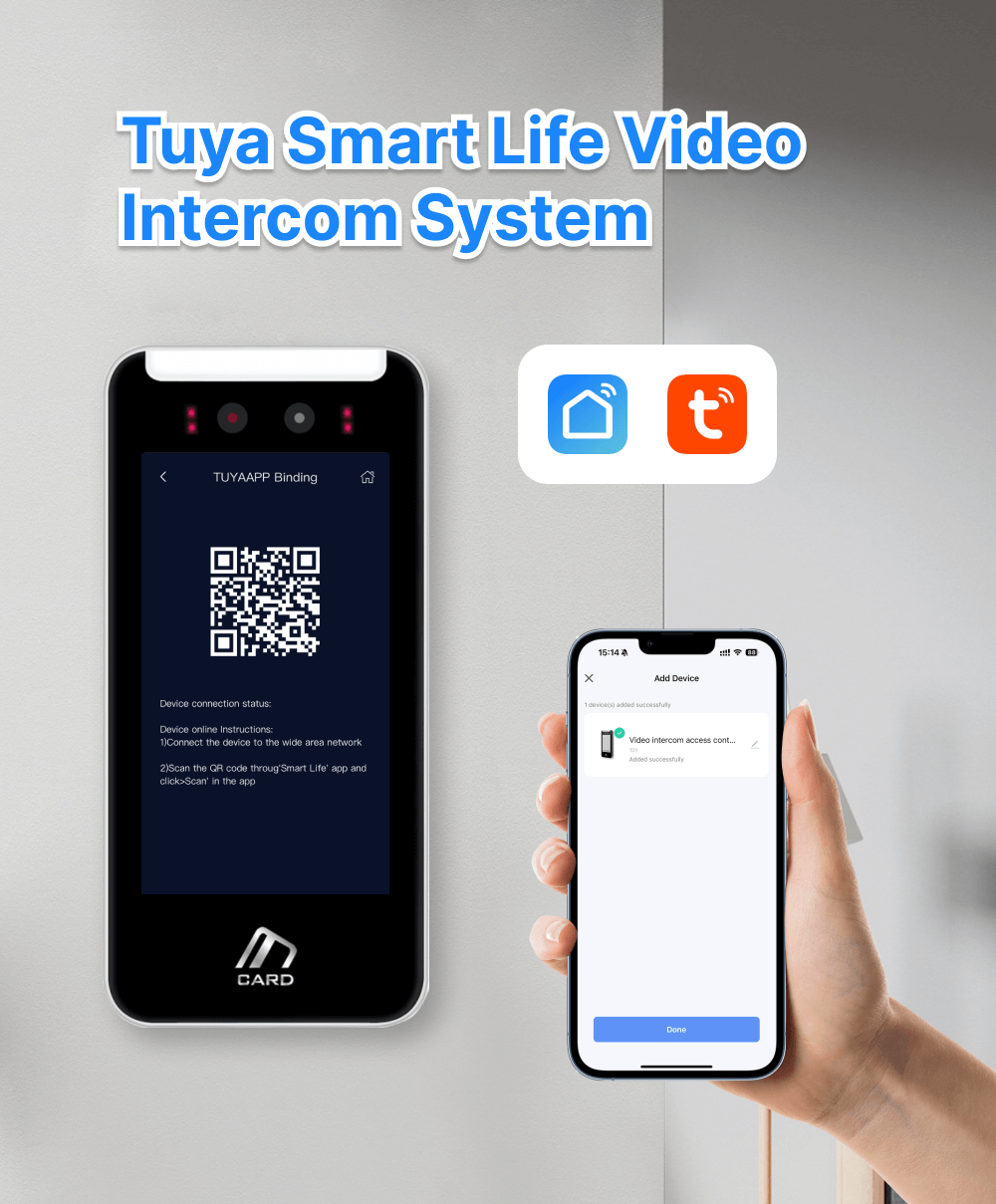

| Tuya Cloud | Full ecosystem integration |

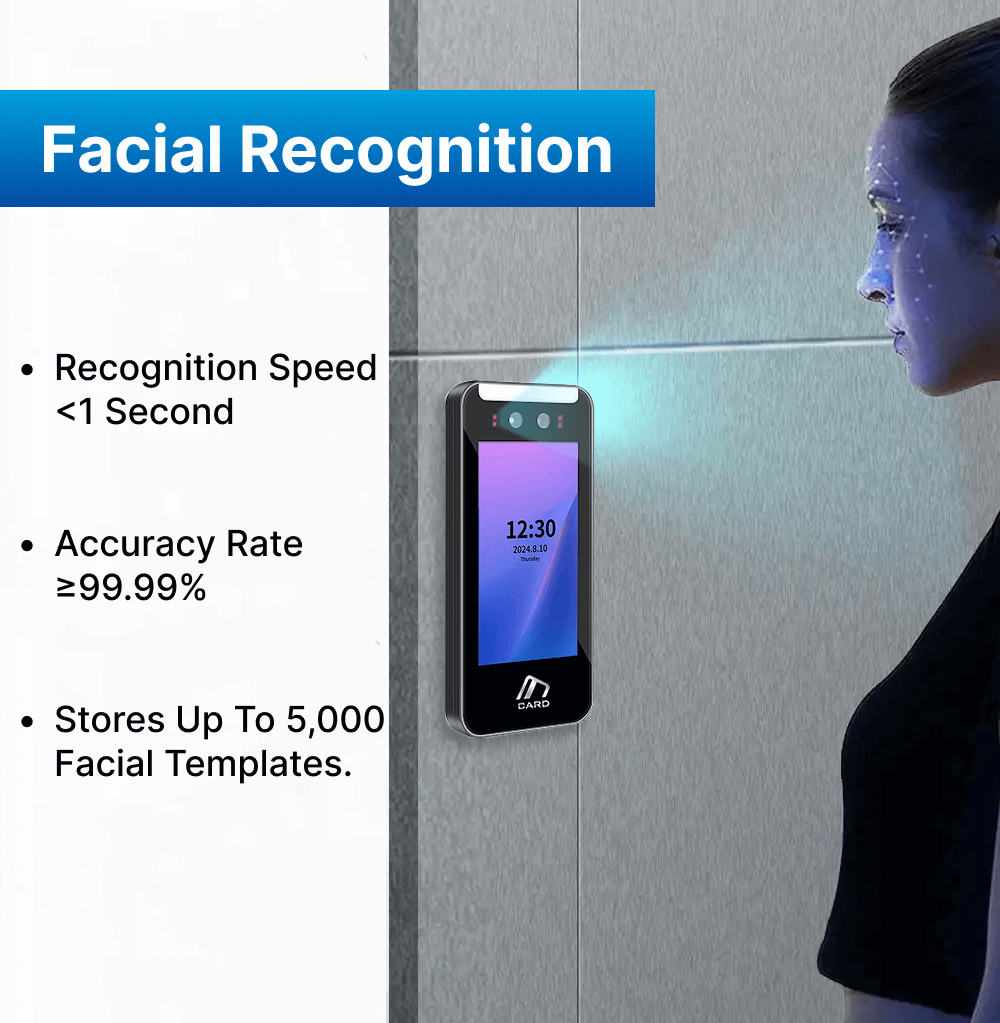

Recognition Performance
| Parameter | Specification |
| Face Capacity | 5,000 faces |
| Attendance Records | 100,000 entries |
| Recognition Distance | 0.5-1.5 meters |
| Recognition Speed | <1 second |
| Recognition Rate | ≥99.99% |
| Adaptation | Glasses, masks, hats, makeup supported |
Other Specifications
| Parameter | Specification |
| Power supply | DC12V（±10%） |
| Power consumption | 10W（MAX） |

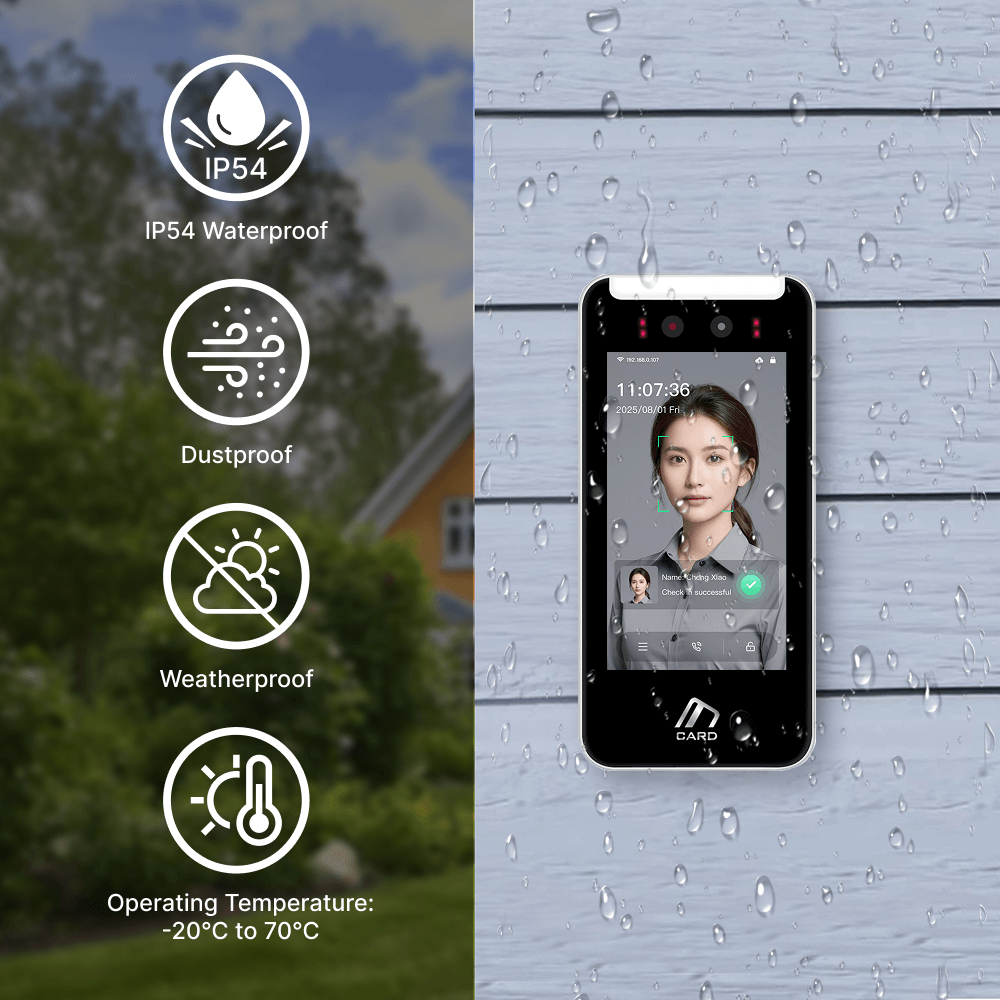

| Protection Rating | IP54 dust and water resistant |
| Operating Temperature | -20°C ~ 70°C |
| Installation | Wall Mounting |

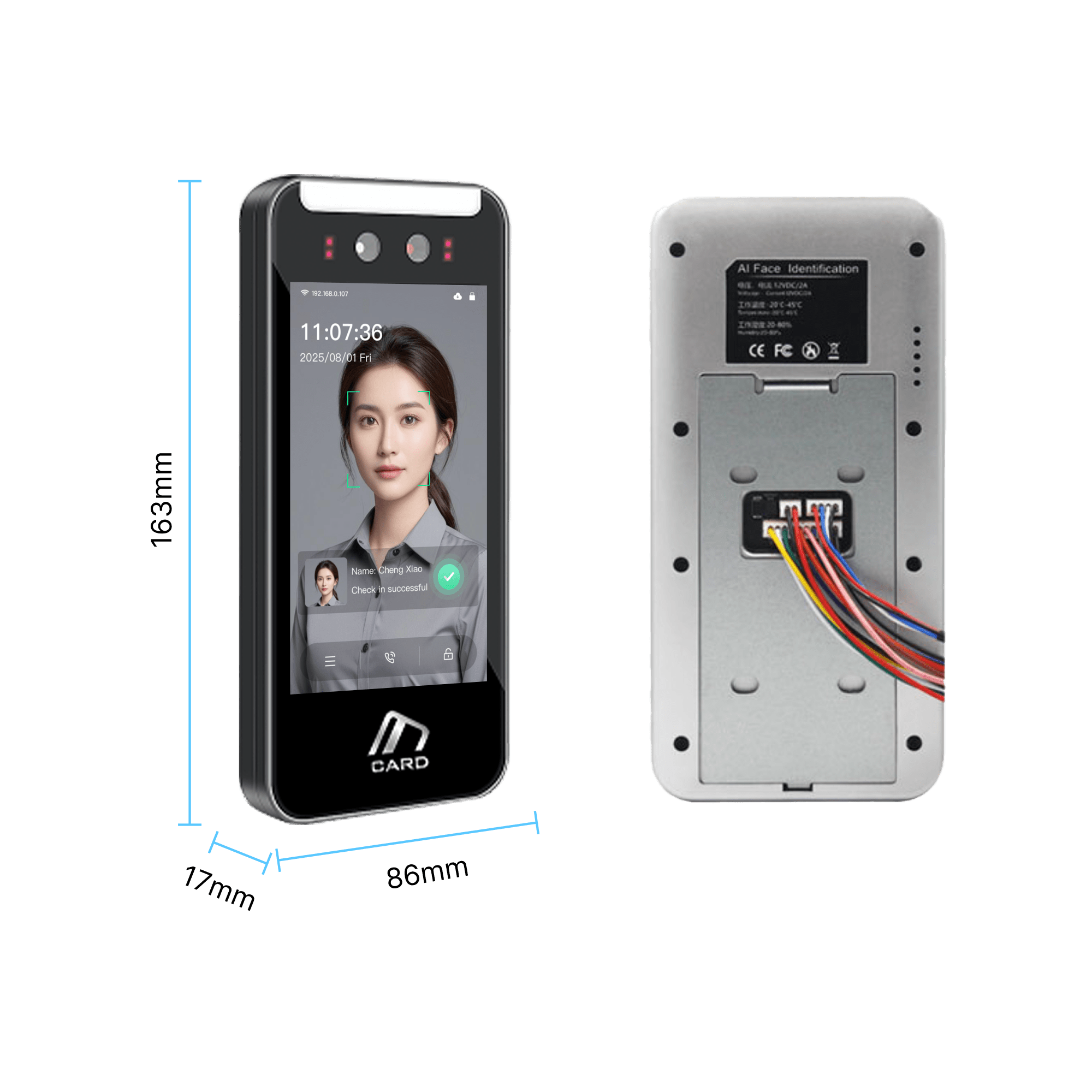

| Device size | 163*86*17mm |
| Equipment weight | 0.8（kg） |

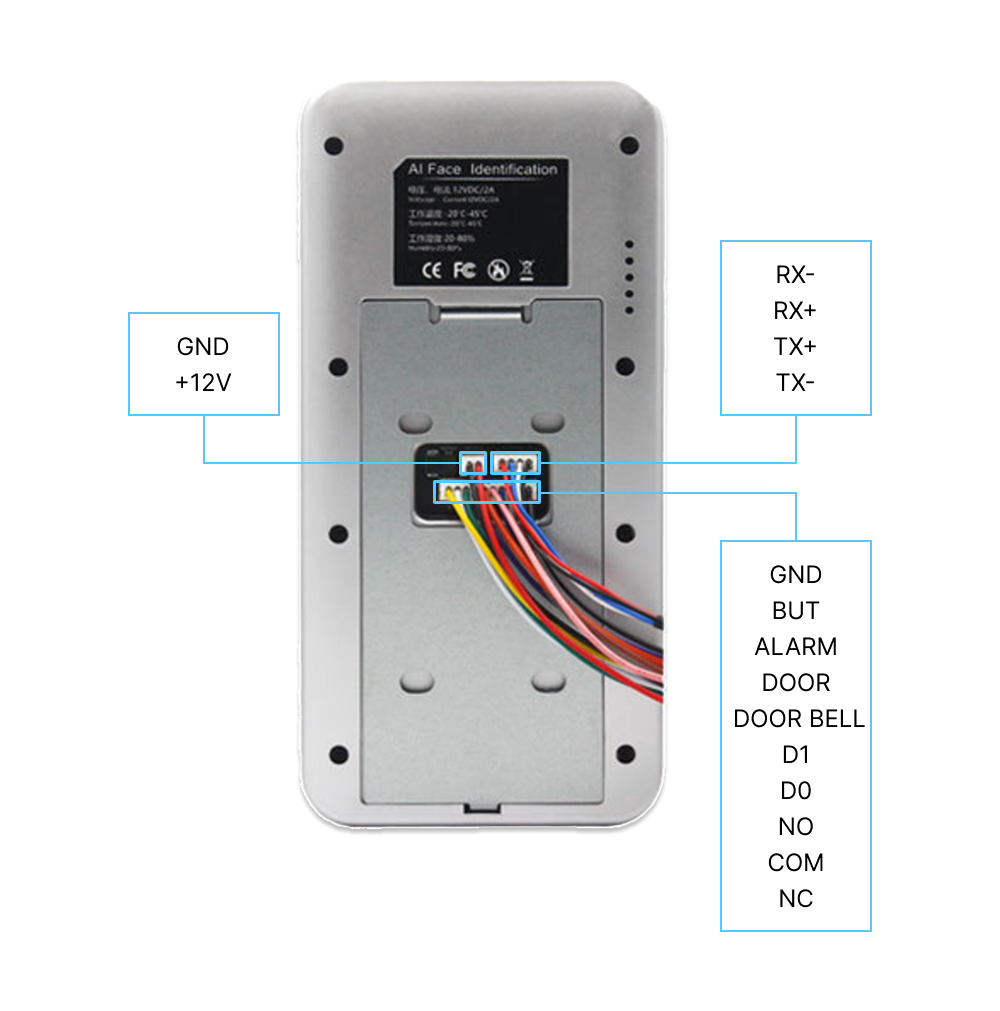

Installation & Interfaces
Note: Cable and interface definitions (interfaces may vary slightly between production batches)
 |
 |
 |
|
Library/dormitory door |
Site/factory |
Campus entrance and exit |
 |
 |
 |
|
Scenic area entrance and exit |
Park commuting attendance |
Office building access control |
