Highlights
(1) Highly cost-effective, dynamic face recognition, supports up to 2,000 face databases
(2) Multiple ways to open the door (card/face/password/fingerprint/palmprint, etc.)
(3) Support relay and Wiegand input and output, multiple sets of standard docking protocols (http/websocket/mqtt)
(4) Support mini-program remote door opening
(5) Support customized development of differentiated products (hardware/system/application/management platform and mini-program)
(6) Support SIP and private protocol video intercom;

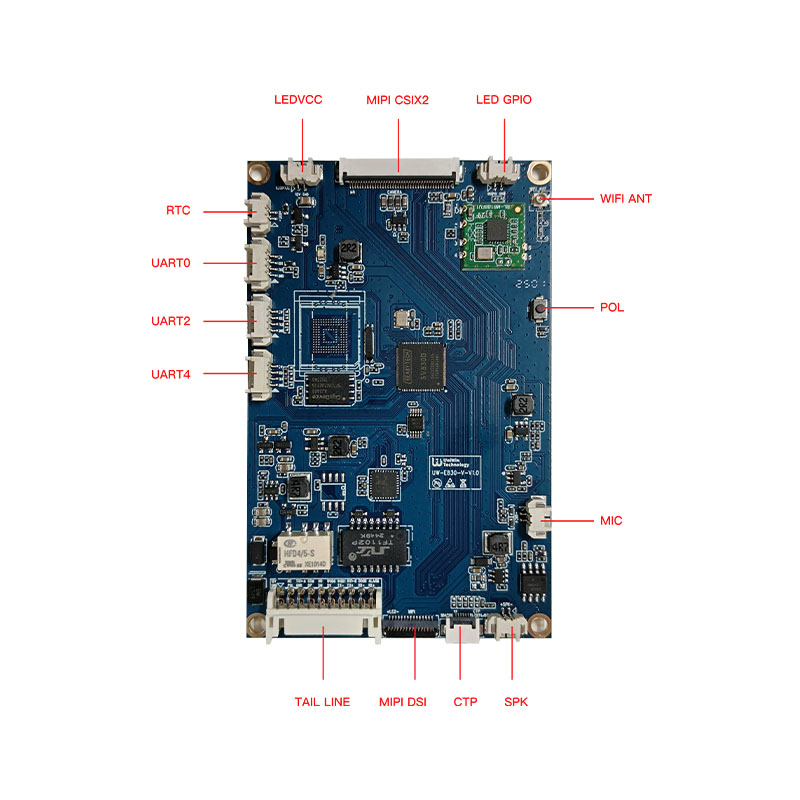

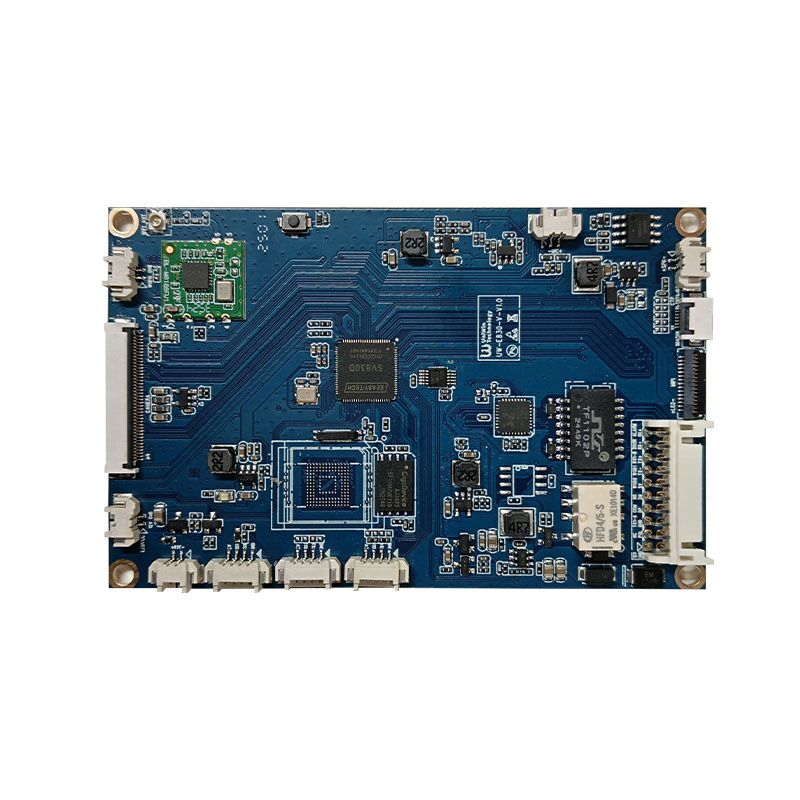

Face Recognition Motherboard E830-V is a cost-optimized for entry-level Intelligent Access Control Solution.Dynamic face recognition can support up to 2,000 faces with high-speed matching.Flexible authentication via face, card, password, fingerprint, or palmprint as multi-mode entry.
It is budget-friendly without compromising on smart access control capabilities and ideal for small to mid-sized deployments with reliable performance.
FAQ
Q: As cost-optimized access control solution, what is the difference in function with other EEASYTECH solution.
A: Apart from different CPU with different power, E830-V supports up to 2000 faces and others are 5000 faces.
| Operating system | Linux |
| CPU | Single-Core Arm Cortex-A7 CPU + RISC-V CPU |
| Memory | Built-in DDR2 512Mb 16-bit |
| Built-in storage | SPI NAND or EMMC 8GB/16GB/32GB optional (default label 1Gb SPI NAND) |
| Display interface | MIPI interface, supports maximum resolution 1920×1200@60HZ |
| Display voltage | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree rotation |
| Touch screen | 1*I2C (support multi-point capacitive touch) |
| Audio | Built-in amplifier, supports 2W/8Ω speakers |
| Support MIC, 1 microphone interface | |
| NPU | Built-in convolutional neural network accelerator NPU, 0.5T computing power |
| USB | 1*USB_OTG |
| Serial port | 3 TTL (1 of which is compatible with RS485) |
| IO | 1-way Wiegand IN/OUT Onboard relay, multiple IOs available |
| Network | 100M Ethernet interface, support Ethernet |
| Equipped with WIFI module, supports Wi-Fi 802.11b/g/n protocol | |
| Face database | Support 2000 face databases |
| Power supply | DC12V/2A |
| Dimensions | 95.4mmX60.9mmX10mm |
 |
 |
 |
|
Hotels and B&Bs |
Residential area |
School |
 |
 |
 |
|
Gate channel |
Office Building |
Villa |
