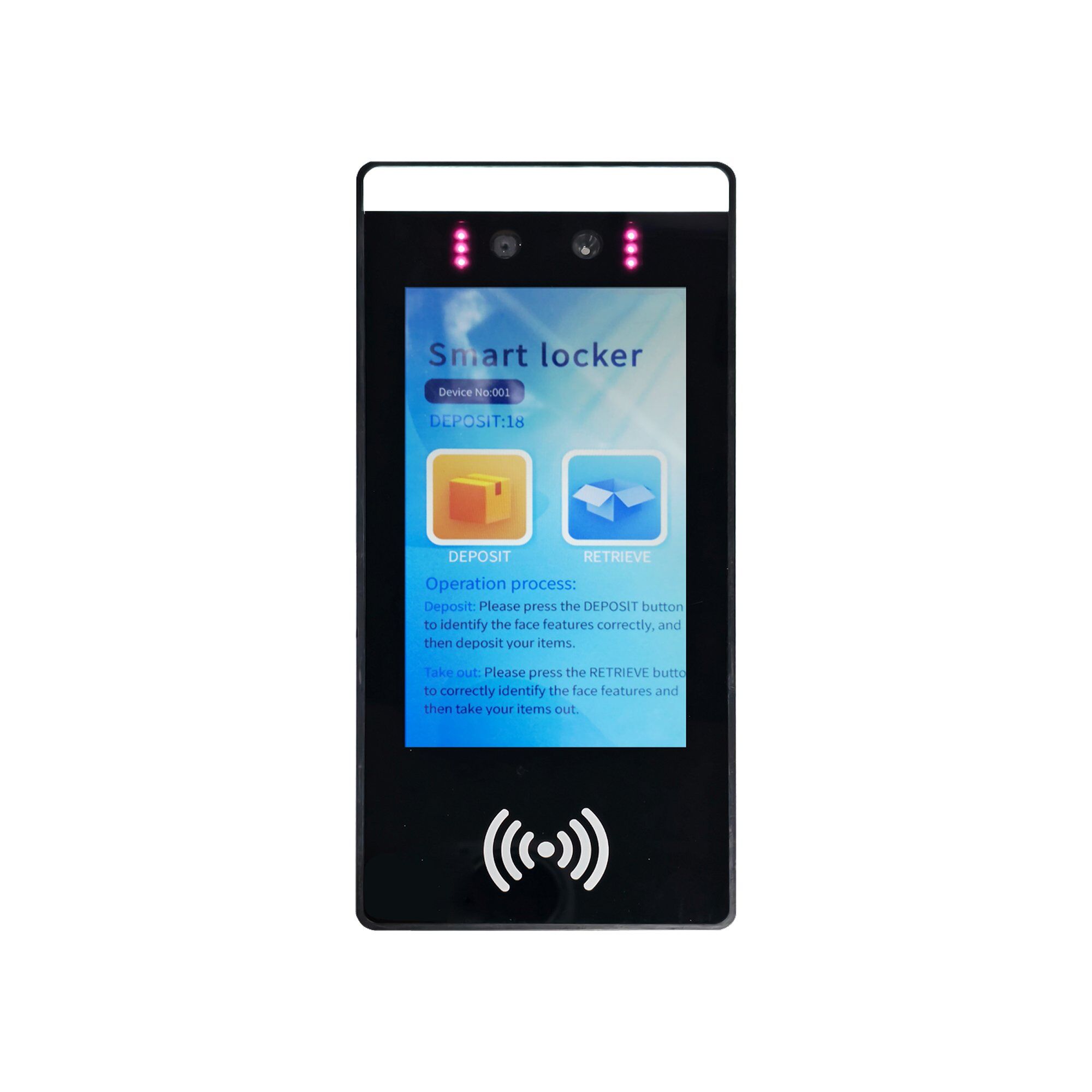

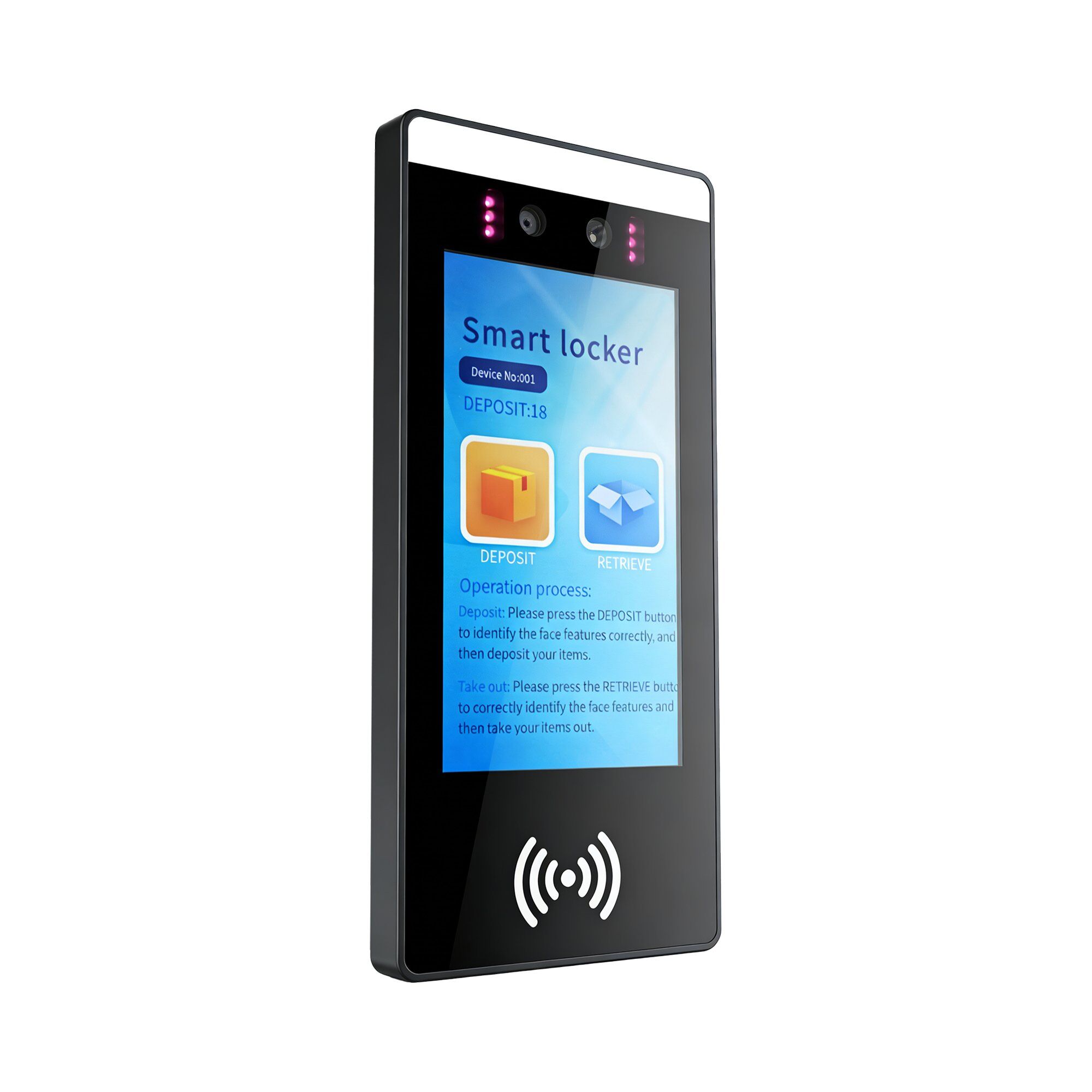

The WR711 is a state-of-the-art, 7-inch AI face recognition terminal engineered for intelligent locker systems in high-traffic public environments such as shopping malls, airports, tourist attractions, and fitness centers.
It delivers versatile and secure access through multiple verification methods, featuring rapid (<1 second) and highly accurate (≥99.99%) facial recognition with active liveness detection to prevent spoofing, alongside support for fingerprint, password, QR code, and IC/RFID card authentication. The system enables flexible remote management, allowing for single-door or batch unlocking, multi-locker assignment per user, mid-process retrieval, and configurable billing options (time-based or per-use). Driven by a dual-core AI processor with a dedicated NPU, it supports scalable storage for up to 20,000 facial templates and 200,000 attendance records. With comprehensive connectivity (Wi-Fi, Ethernet, optional 4G) and a compact, wall-mountable design, the WR711 offers a reliable, user-friendly, and easily expandable smart storage solution.
WR711 Specification
7-inch Face Recognition Locker System
Recognition Terminal
Face Recognition
Technical Specifications
Display & Hardware
| Parameter | Specification |
| Screen Size | 7.0-inch IPS LCD |
| Resolution | 1024×600 pixels |
| Touchscreen | Capacitive touch support |
| Processor | Dual-core AI processor |
| NPU | 0.6T independent computing power |
| OS | Linux |
| Storage | 8GB/16GB/32GB optional (default 8GB) |
Camera Specifications
| Parameter | Specification |
| Camera Type | Dual-lens wide dynamic camera |
| Resolution | Dual 2MP |
| Aperture | F2.2 |
| Focus Distance | 50-150cm |
| Fill Light | LED + infrared dual fill light |
| Night Vision | Supported |
Network & Connectivity
| Parameter | Specification |
| Wired Network | Ethernet |
| Wireless Network | Wi-Fi (2.4GHz supported) |
| Cellular Network | 4G module (optional) |
| Audio Output | 2W/8Ω speaker |
| Audio Input | Built-in microphone |
Recognition Performance
| Parameter | Specification |
| Face Capacity | 50,000 (20,000 scalable) |
| Attendance Records | 200,000 |
| Recognition Distance | 0.5-1.5 meters |
| Recognition Speed | <1 second |
| Recognition Rate | ≥99.99% |
| Adaptation | Supports wearing glasses, masks, hats, and makeup |
Other Specifications
| Parameter | Specification |
| Power supply | DC12V 2A |
| Power consumption | 24W (MAX) |
| Operating Temperature | -20°C ~ 70°C |
| Installation | Wall Mounting |

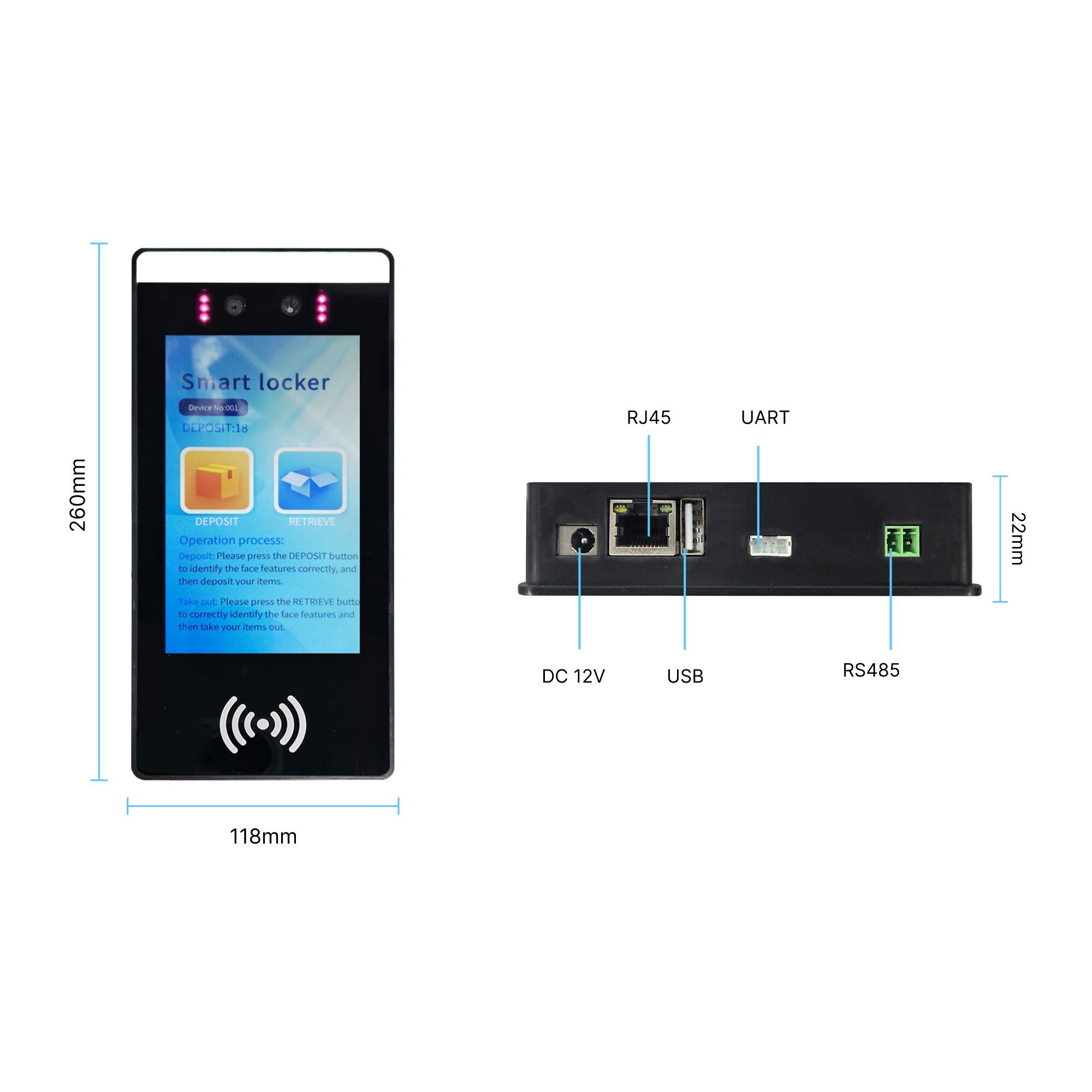

| Device size | 118*260*22mm |
| Equipment weight | 1.35（kg） |
 |  |  |
| Airport, Station | Shopping Malls , Supermarkets | Scenic Spots, Amusement Park |
|
|
| |
