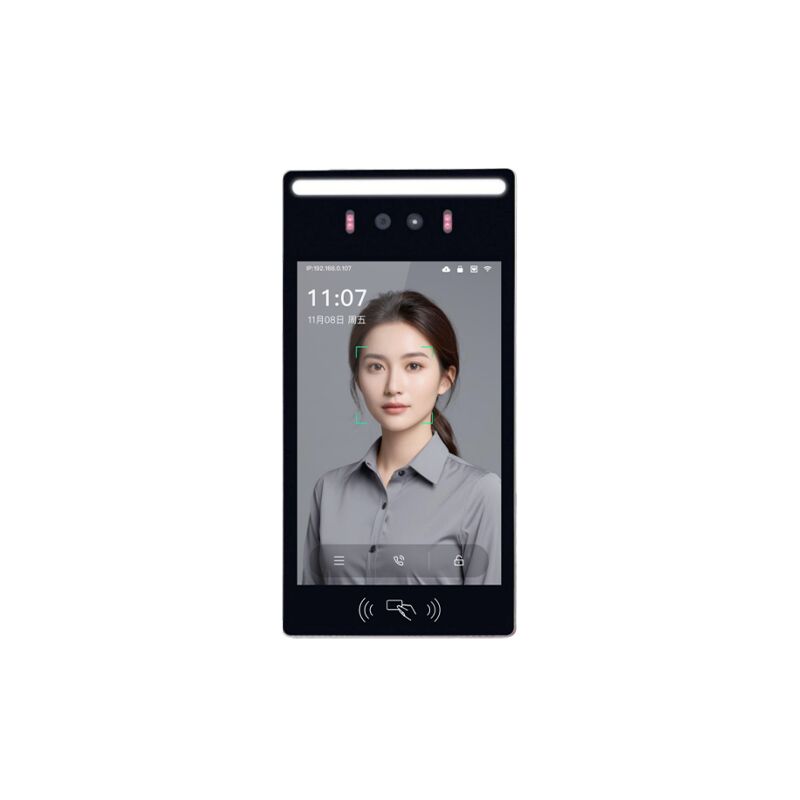

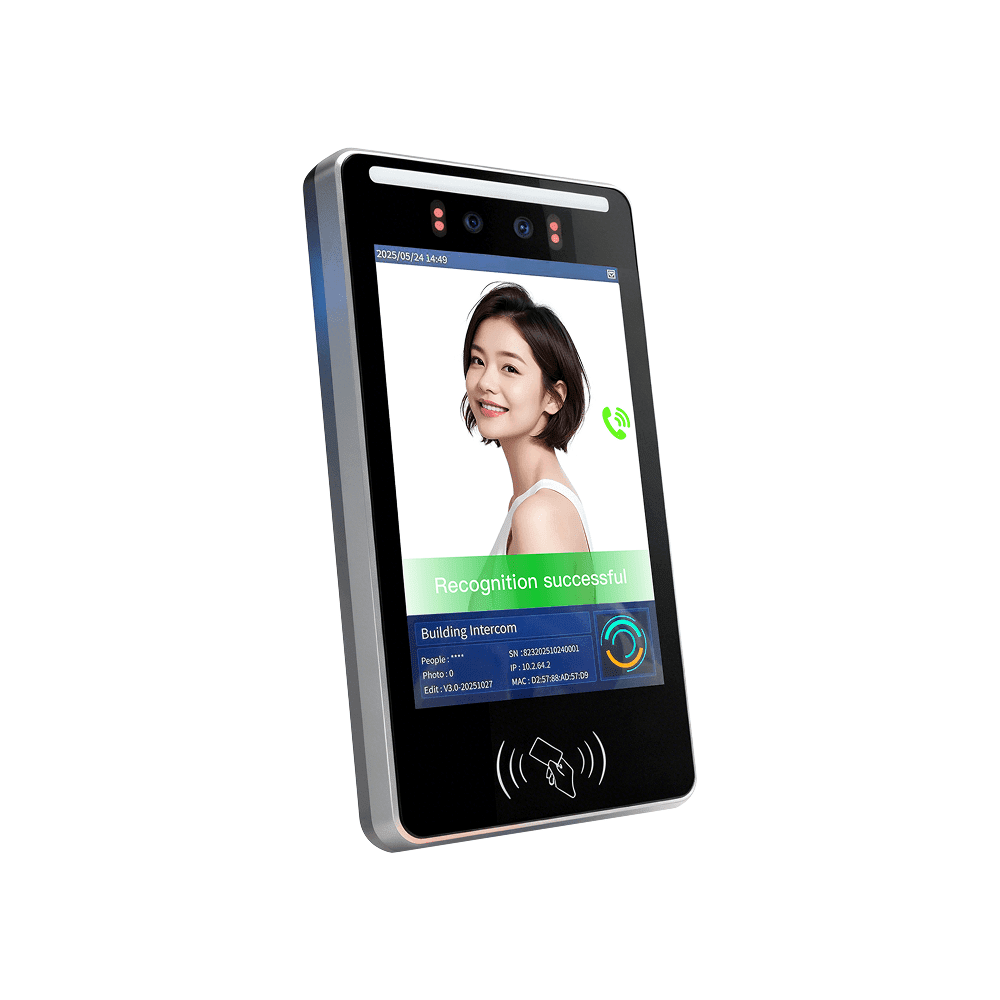

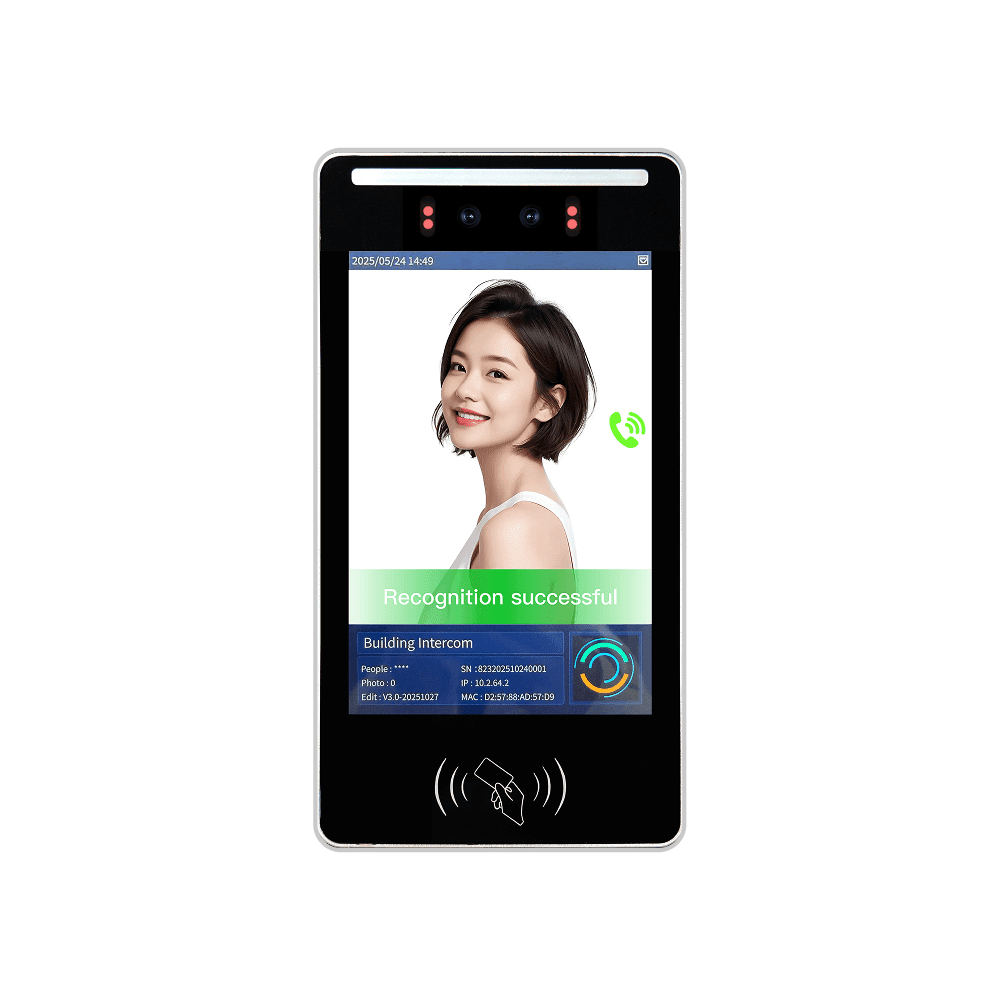

The 8-inch binocular door machine is an intelligent access control device that integrates wide dynamic RGB+IR binocular cameras. It supports audio and video intercom based on the SIP protocol, one-to-one and one-to-many (group or single call), multiple unlocking methods and advanced recognition technology, providing users with efficient and safe access management solutions. Focusing on the core life scenes of users, it extends smart applications such as building intercom, smart access control, and security monitoring from indoors to outdoors, providing an integrated smart experience. The device uses advanced wide dynamic technology to ensure clear image capture under various lighting conditions. It is suitable for residential areas, office buildings, schools, hospitals and other places.
| Power supply | DC12V（±10%） |
| Operating temperature | -20℃-70℃ |
| Storage temperature | -20℃-70℃ |
| Power consumption | 24W（MAX） |
| Installation | Wall Mounting |

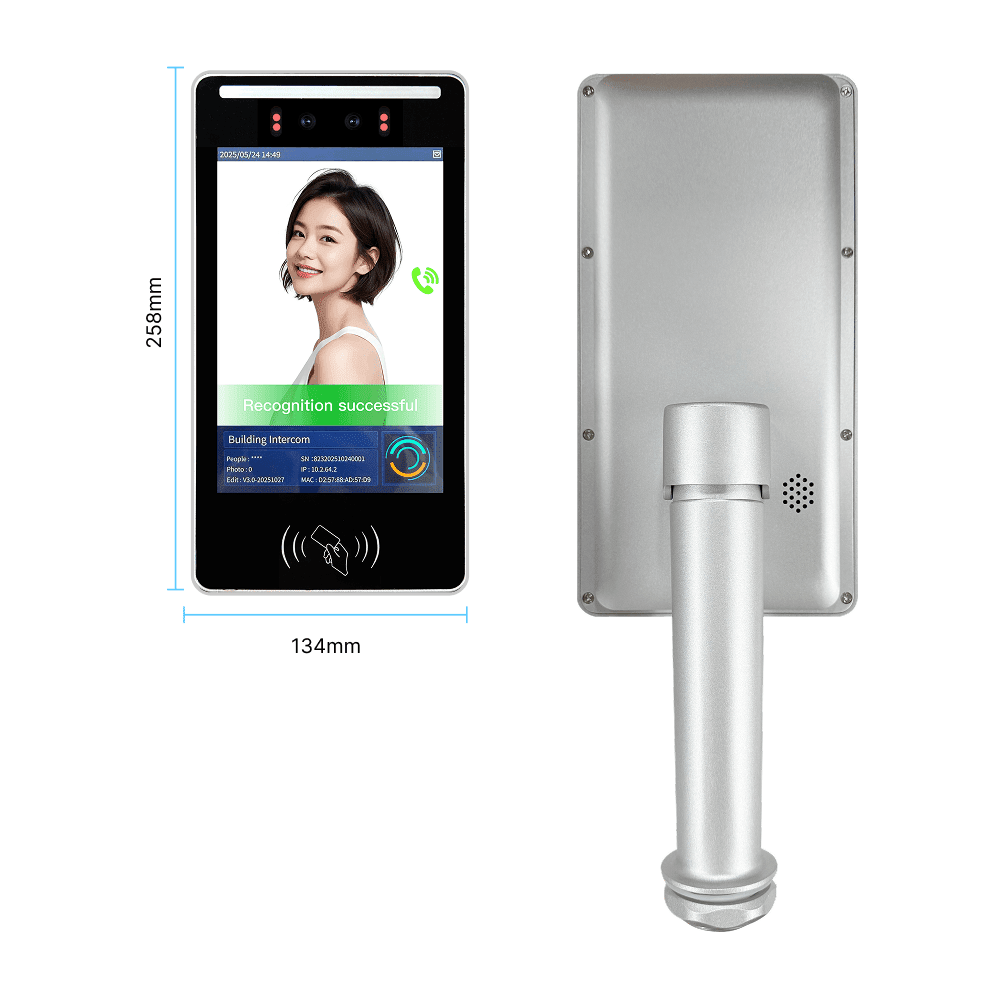

| Device size | 218*116*22mm |
| Protection level | IP54 |

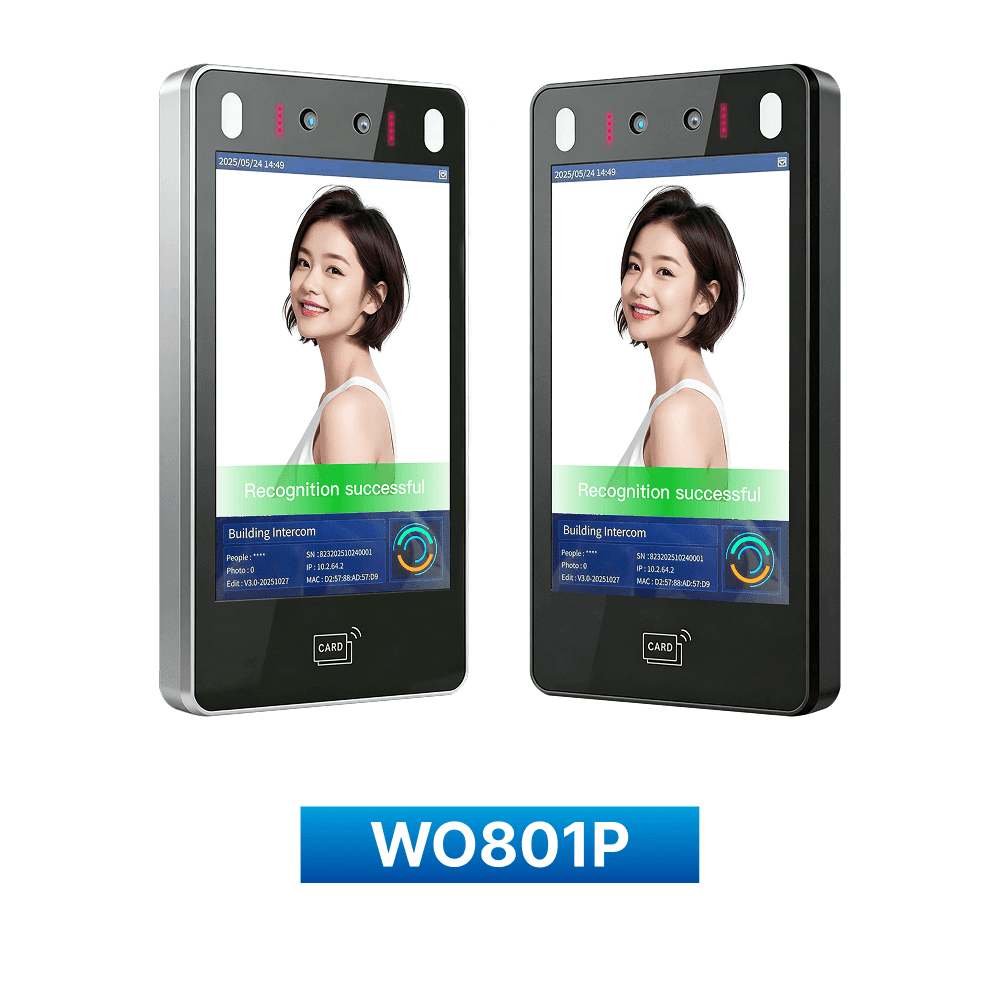

The WO801 is advanced 8-inch binocular door terminal which integrates cutting-edge wide dynamic RGB+IR dual cameras with SIP-based communication, delivering unmatched security and convenience for modern spaces.
Professional-grade wide dynamic technology ensures crystal-clear imaging in all lighting conditions and full SIP protocol support for flexible audio/video intercom.
It is right time to upgrade to intelligent access control that combines superior security with user convenience – perfect for demanding professional environments!
FAQ
Q: What is the cooperation mode?
A: OEM/ODM mode; finished products and SKD mode all is welcome.
| Screen: | |
| Size | 8-inch IPS LCD screen |
| Resolution | 800×1280 |
| Touchscreen | support |
| Configuration: | |
| CPU | High-performance AI processor |
| NPU | Independent computing power 1T |
| Operating system | Linux |
| Storage capacity | EMMC 8GB |
| Network Module | Ethernet, wireless (Wi-Fi), 4G network (optional) |
| Audio | 2W/8Ω speaker |
| Card reader | IC/ID card reader (optional) |
| System functions: | |
| Face database | 5000 faces |
| Audio and video intercom | Support |
| Attendance record | 100,000 |
| 1:N face recognition | Support |
| Liveness detection | Support |
| Stranger detection | Support |
| Recognition distance | 50-150cm |
| Recognition speed | <1 second |
| Recognition rate | 99.99% |
| UI interface configuration | Support |
| Device remote upgrade | Support |
| API interface | Device management, personnel/photo management, communication records, system settings |
| Deployment method | Support public cloud deployment, private deployment, LAN/stand-alone use |
| Camera: | |
| Resolution | Dual 200w pixels |
| Type | Binocular camera |
| Aperture | F2.2 |
| Focus distance | 50-150cm |
| White balance | Automatic |
| Fill light | LED/infrared dual fill light |
 |
 |
 |
|
Library/dormitory door |

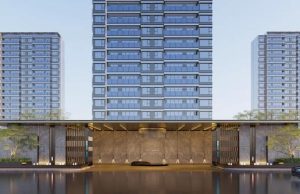

Residential area |
Campus entrance and exit |
 |
 |
 |
|
Hospital |
Shopping Mall |
Office building access control |
The WO801 is advanced 8-inch binocular door terminal which integrates cutting-edge wide dynamic RGB+IR dual cameras with SIP-based communication, delivering unmatched security and convenience for modern spaces.
Professional-grade wide dynamic technology ensures crystal-clear imaging in all lighting conditions and full SIP protocol support for flexible audio/video intercom.
It is right time to upgrade to intelligent access control that combines superior security with user convenience – perfect for demanding professional environments!
FAQ
Q: What is the cooperation mode?
A: OEM/ODM mode; finished products and SKD mode all is welcome.
| Screen: | |
| Size | 8-inch IPS LCD screen |
| Resolution | 800×1280 |
| Touchscreen | support |
| Configuration: | |
| CPU | High-performance AI processor |
| NPU | Independent computing power 1T |
| Operating system | Linux |
| Storage capacity | EMMC 8GB |
| Network Module | Ethernet, wireless (Wi-Fi), 4G network (optional) |
| Audio | 2W/8Ω speaker |
| Card reader | IC/ID card reader (optional) |
| System functions: | |
| Face database | 5000 faces |
| Audio and video intercom | Support |
| Attendance record | 100,000 |
| 1:N face recognition | Support |
| Liveness detection | Support |
| Stranger detection | Support |
| Recognition distance | 50-150cm |
| Recognition speed | <1 second |
| Recognition rate | 99.99% |
| UI interface configuration | Support |
| Device remote upgrade | Support |
| API interface | Device management, personnel/photo management, communication records, system settings |
| Deployment method | Support public cloud deployment, private deployment, LAN/stand-alone use |
| Camera: | |
| Resolution | Dual 200w pixels |
| Type | Binocular camera |
| Aperture | F2.2 |
| Focus distance | 50-150cm |
| White balance | Automatic |
| Fill light | LED/infrared dual fill light |
|
|
|
|
Library/dormitory door |
Residential area |
Campus entrance and exit |
|
|
|
|
Hospital |
Shopping Mall |
Office building access control |
