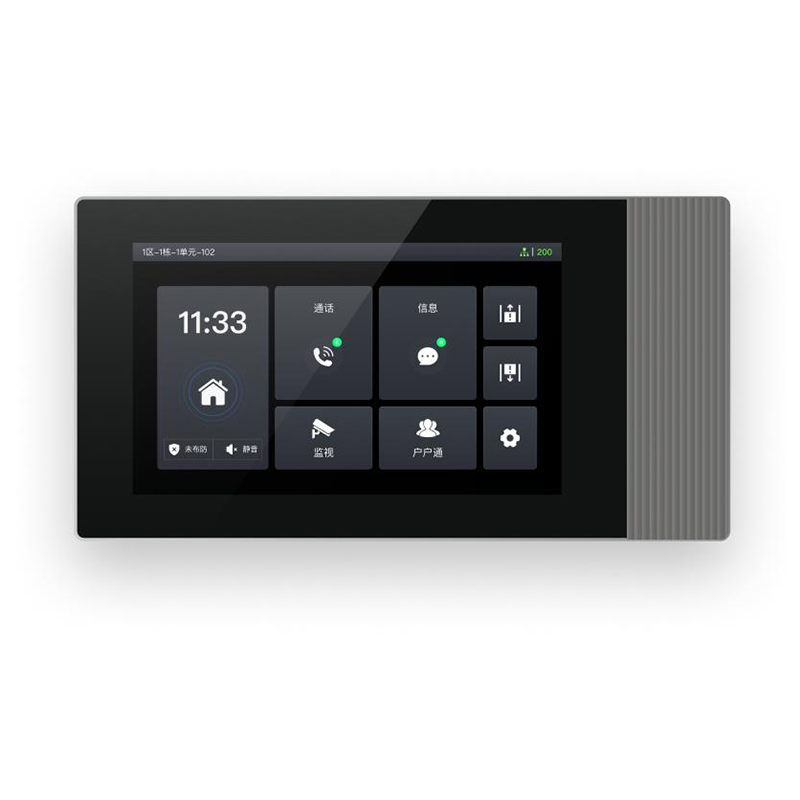

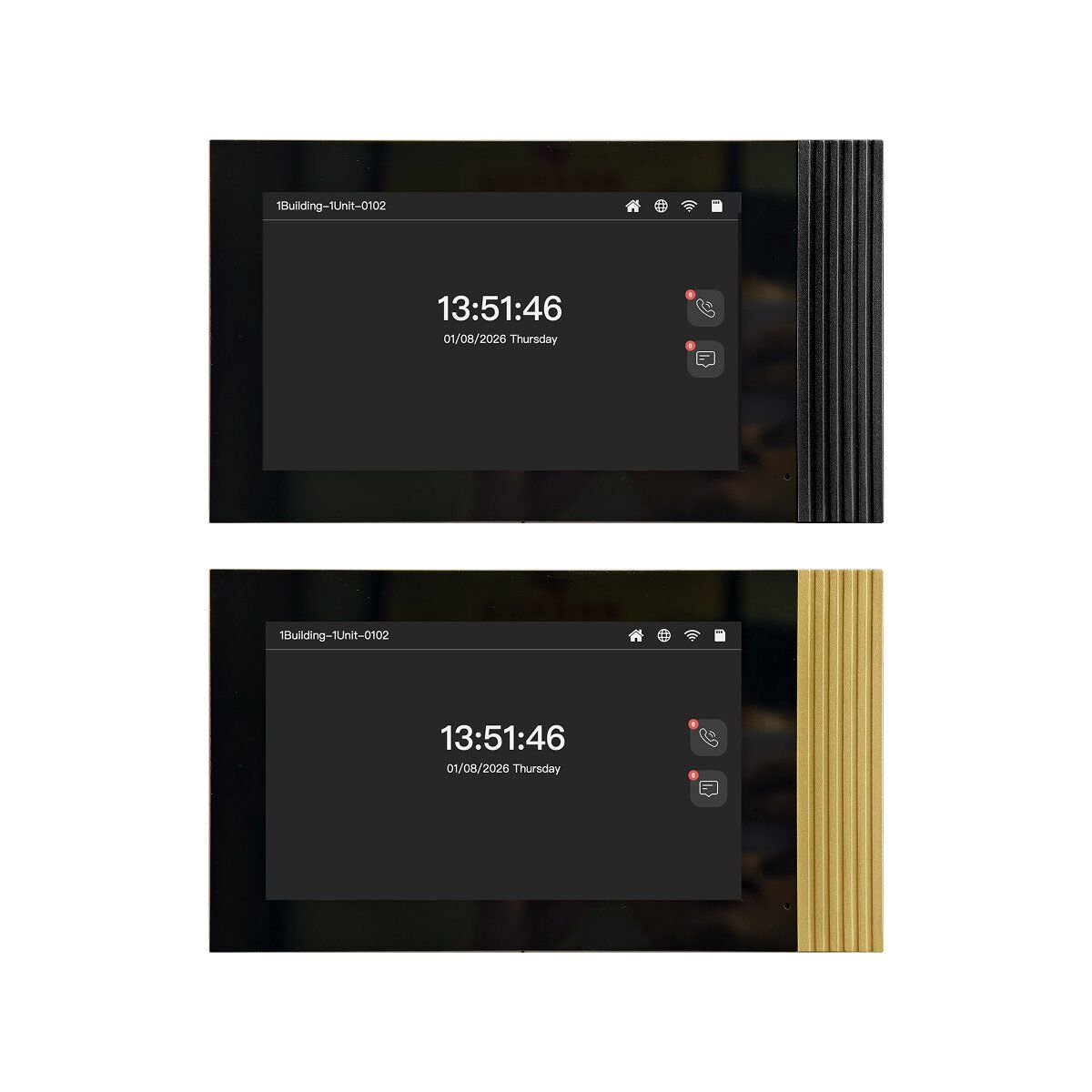

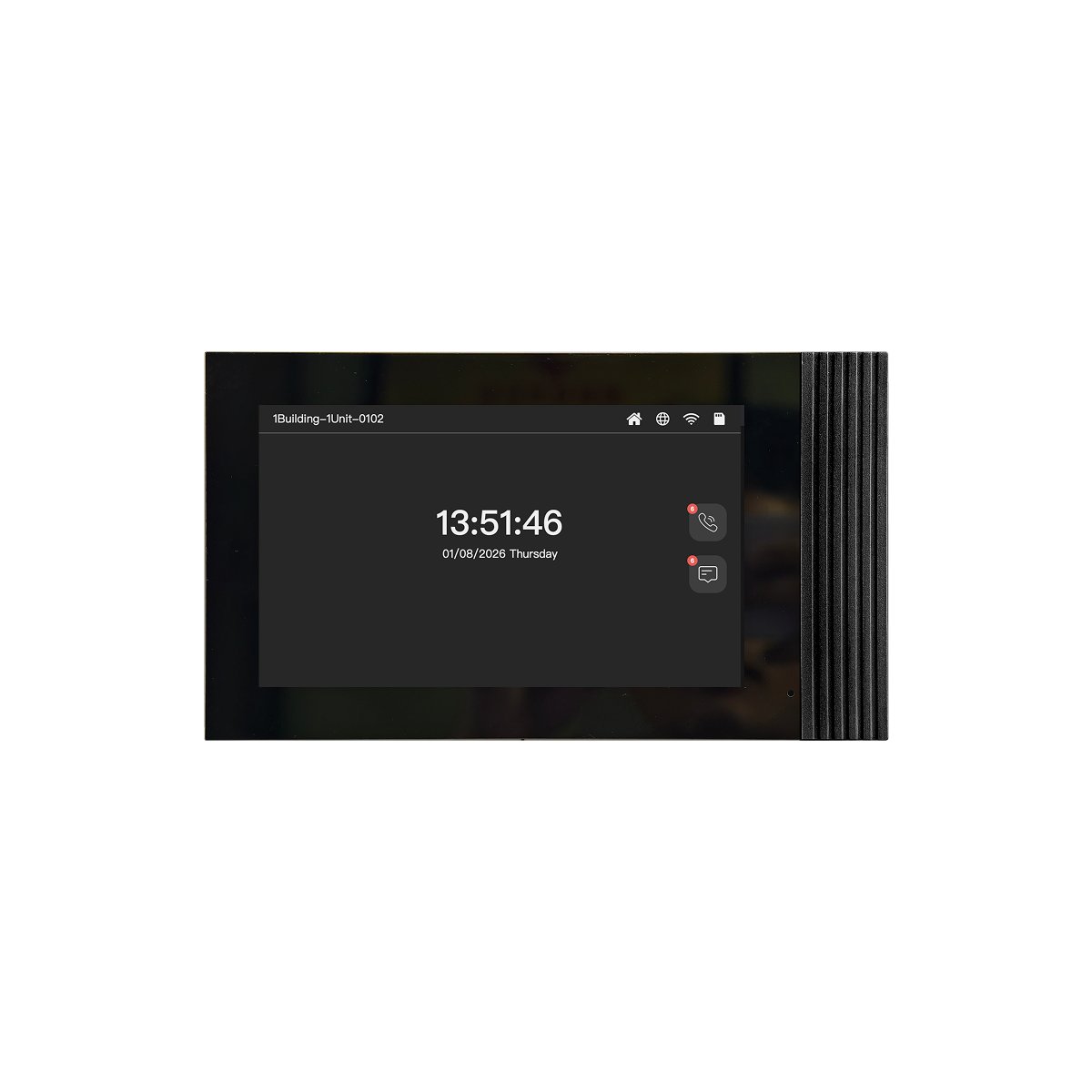

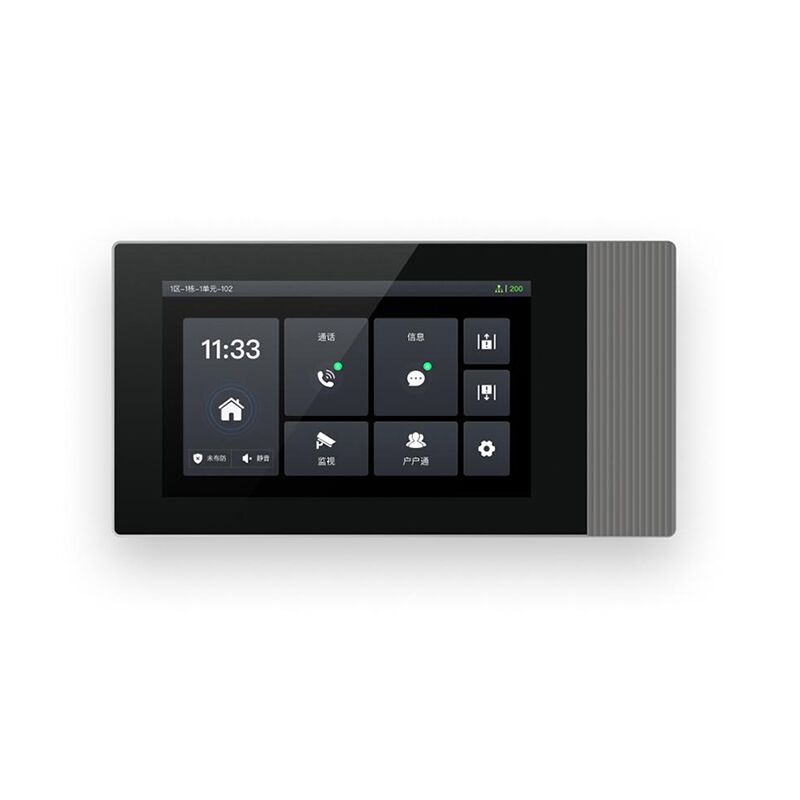

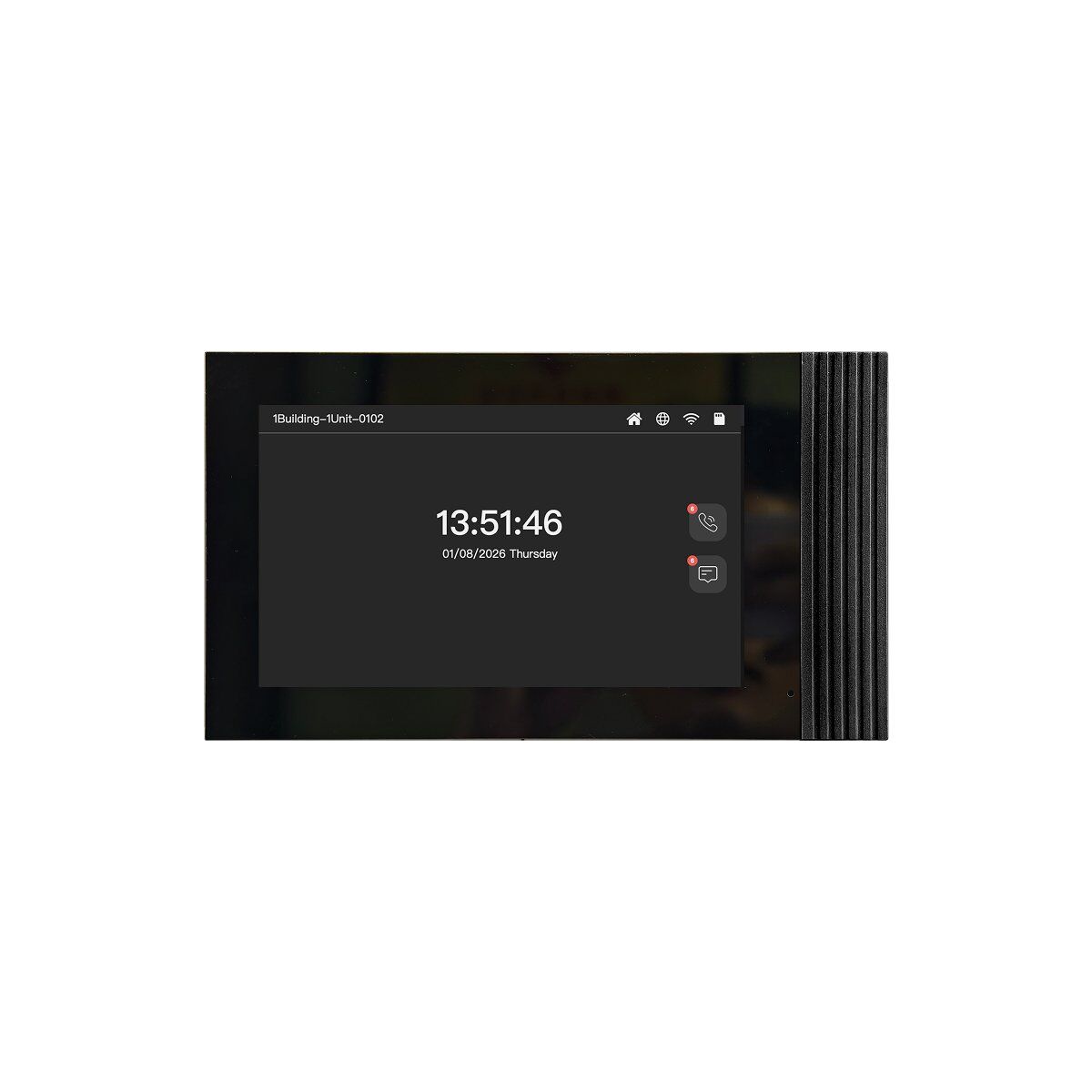

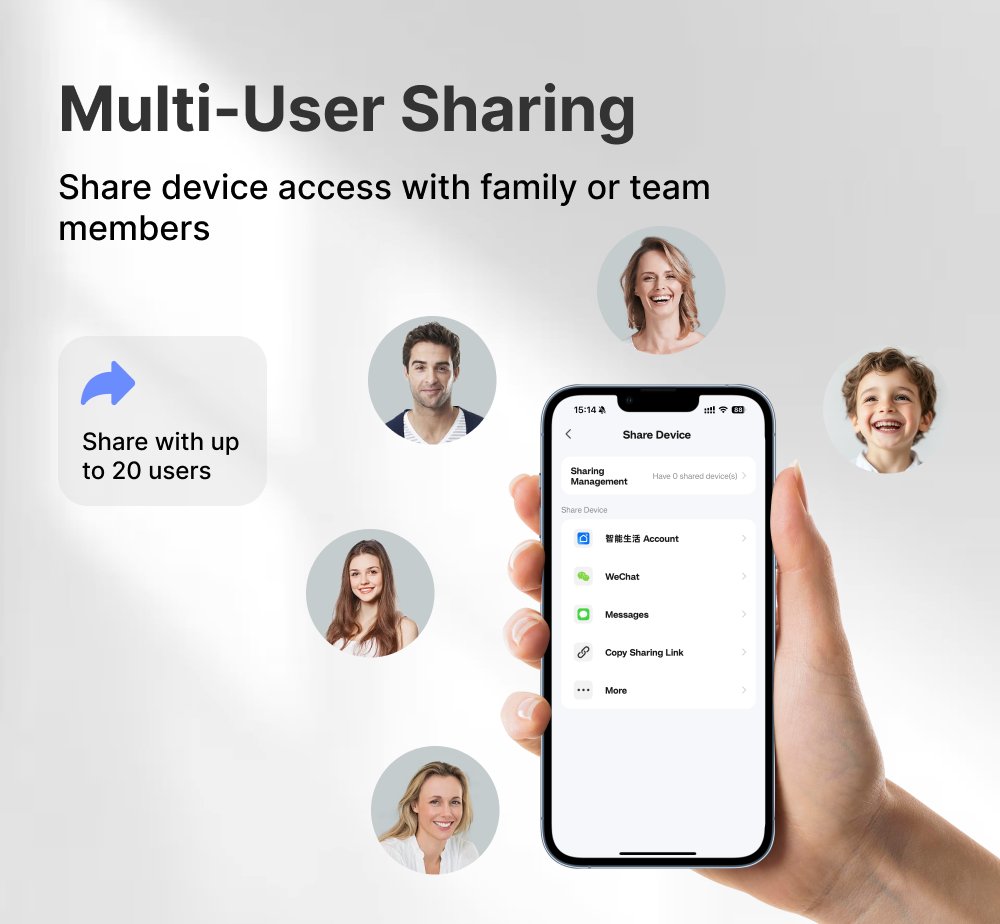

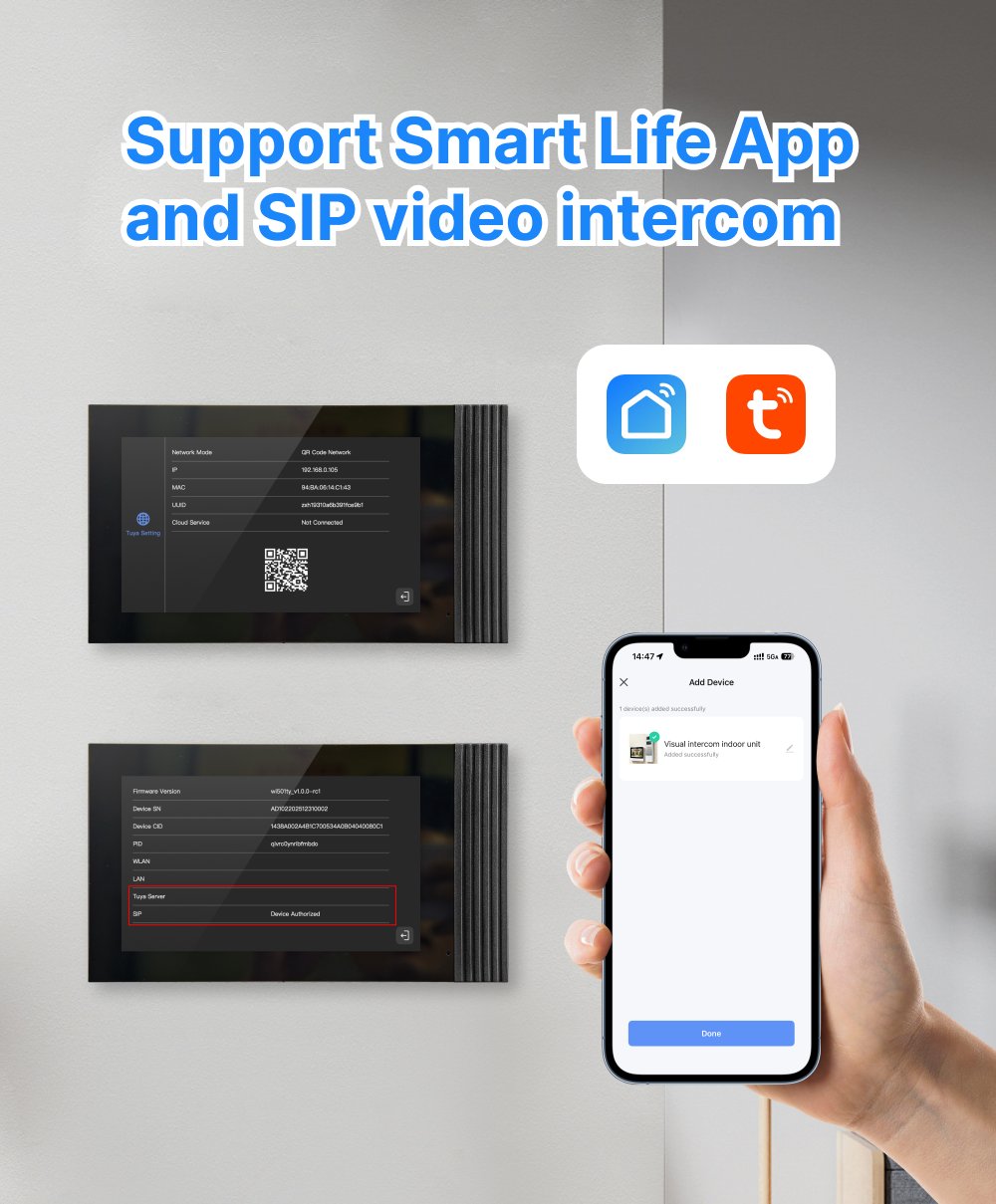

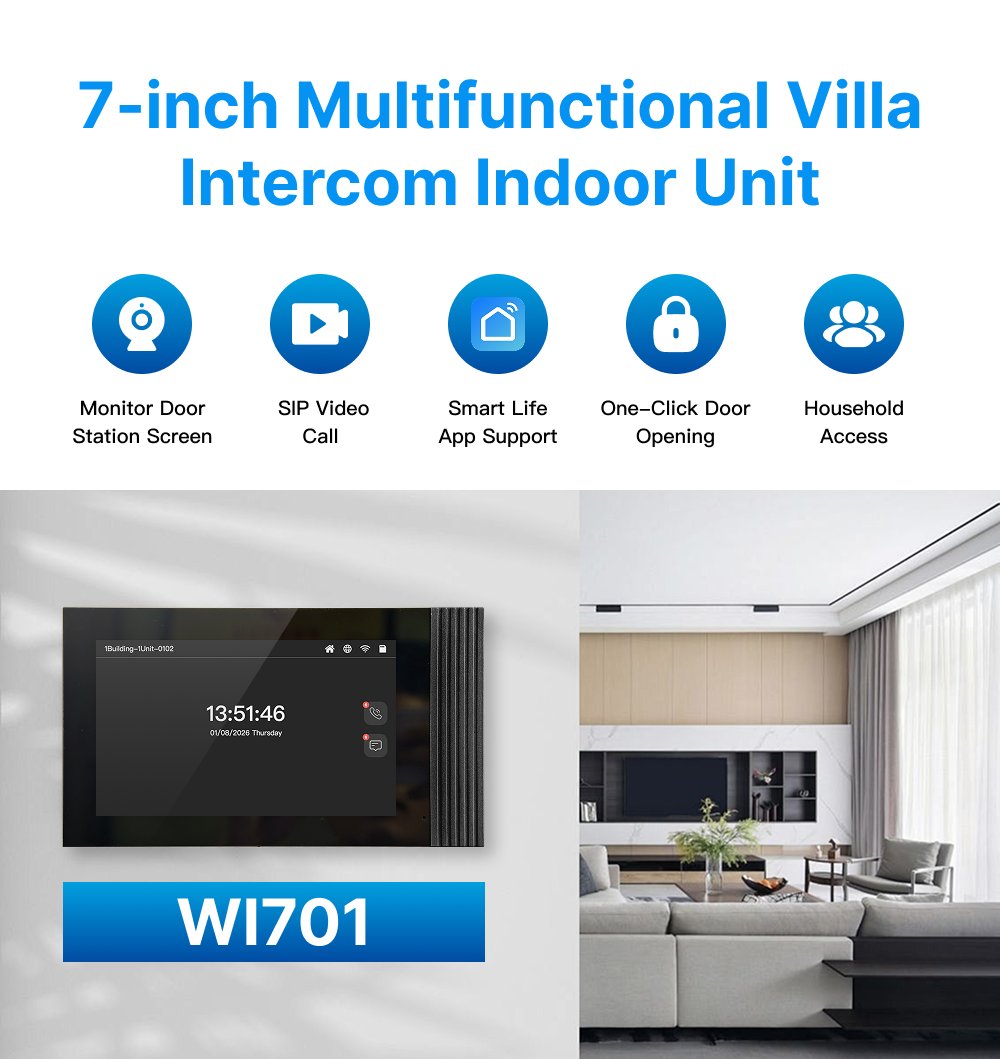

The W1701 7-inch Multifunctional Villa Intercom Indoor Unit is a comprehensive security and communication solution for modern residences and commercial spaces. Featuring a vibrant 7-inch IPS display, it provides real-time HD video monitoring of your doorway, ensuring 24/7 security. With integrated SIP support, users can engage in clear two-way video calls directly from the door station to the indoor unit or via the Smart Life app. The convenient one-click remote door unlocking adds seamless access control. The system supports multi-user sharing for up to 20 individuals, enabling easy access management for families or teams. Its household intercom function facilitates communication between different floors, while the Do Not Disturb mode ensures privacy when needed. Designed for versatility, the W1701 is ideal for villas, apartments, offices, and hotels.
WI701 Specification
7-inch Multifunctional Villa Intercom Indoor Unit
Technical Specifications
Screen
| Parameter | Specification |
| Screen Size | 7.0-inch IPS LCD |
| Resolution | 1024×600 pixels |
| Touchscreen | High-Sensitivity Capacitive Touchscreen |
Configuration
| Parameter | Specification |
| CPU | XBurst® 2, 1.2 GHz dual-core processor |
| OS | Linux5.10 |
| Memory | Built-in 64MB DDR2 |
| Network Module | RJ45 standard interface, 100 Mbps Ethernet interface |
| Operating Memory | 16MB NOR Flash |
System Functions
| Parameter | Specification |
| Video Call | Two-Way Video Capability |
| Information | Supports Voice, Image, SMS, and Other Information |
| Elevator Call | Supported |
| Security Alarm | Supported |
| Household intercom | Supports ( 8-Channel Wired Defense Zones) |
| Call Management Center | Supported |
Conventional Parameters
| Parameter | Specification |
| Power Supply | 12V 2A |
| Operating Temperature Range | -10°C-60°C |
| Storage Temperature | -20°C-70°C |
| Power Consumption | 20W（MAX） |
| Installation Method | Wall-mounted installation |

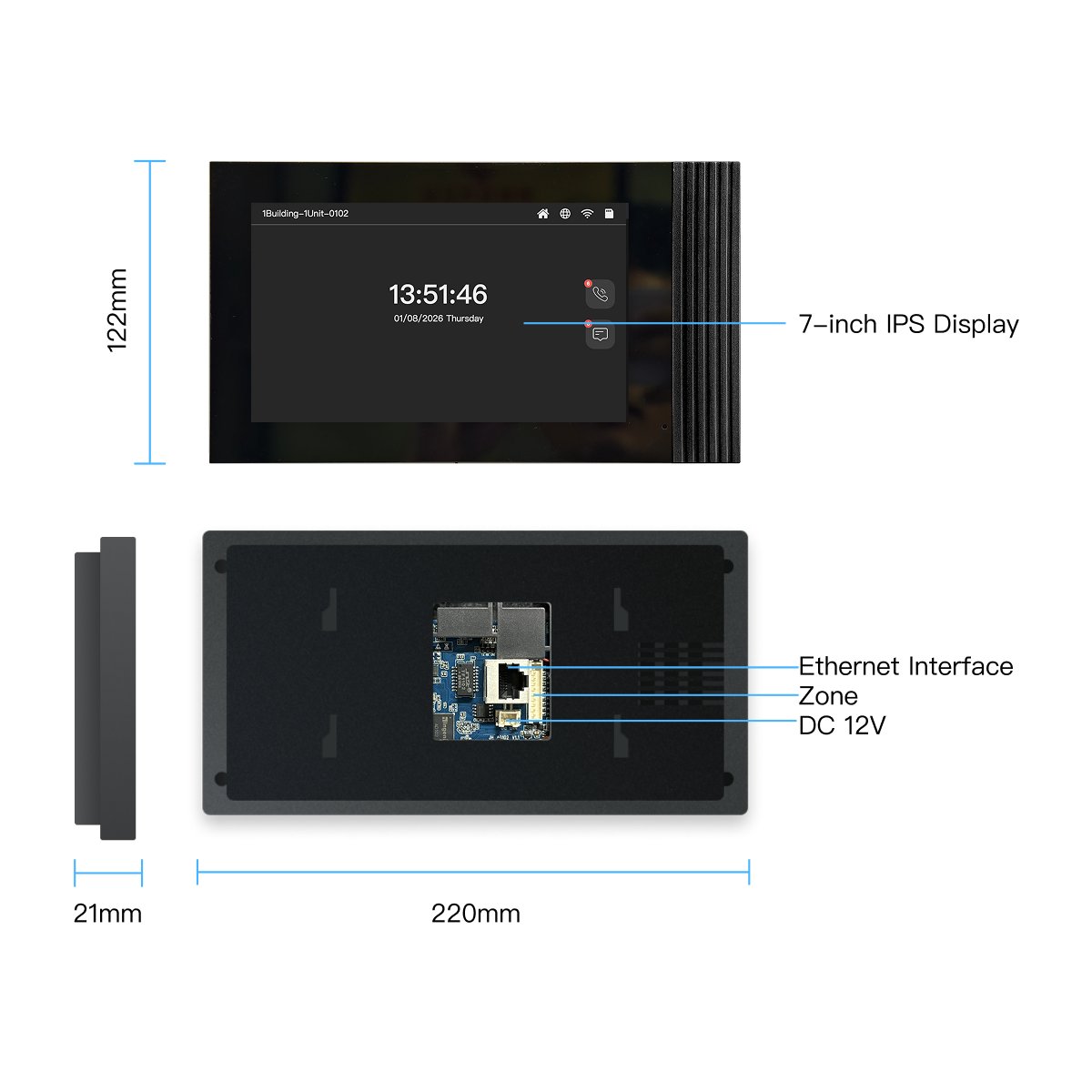

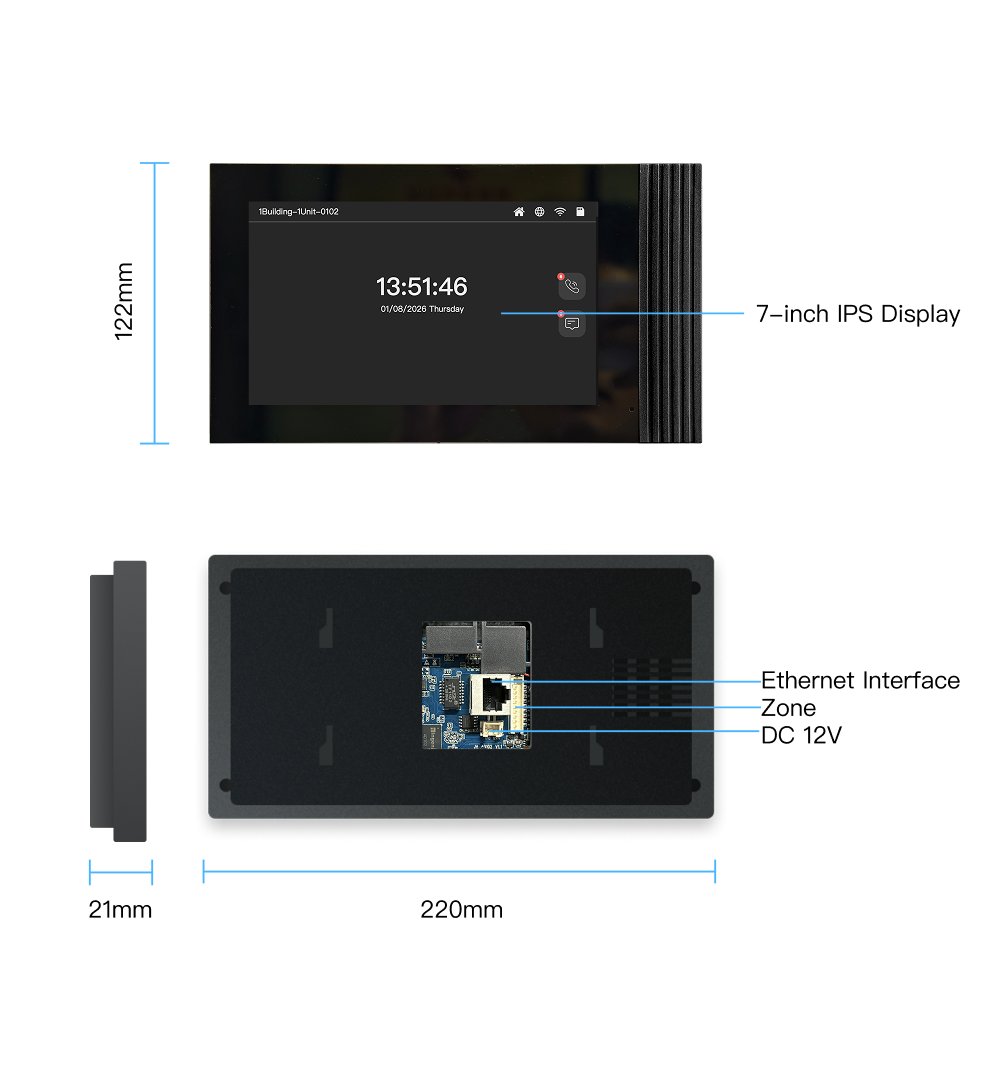

| Device Dimensions | 220*122*21mm |
 |  |  |
| Apartment | Hotel | Villa |
WI701 Specification
7-inch Multifunctional Villa Intercom Indoor Unit
Technical Specifications
Screen
| Parameter | Specification |
| Screen Size | 7.0-inch IPS LCD |
| Resolution | 1024×600 pixels |
| Touchscreen | High-Sensitivity Capacitive Touchscreen |
Configuration
| Parameter | Specification |
| CPU | XBurst® 2, 1.2 GHz dual-core processor |
| OS | Linux5.10 |
| Memory | Built-in 64MB DDR2 |
| Network Module | RJ45 standard interface, 100 Mbps Ethernet interface |
| Operating Memory | 16MB NOR Flash |
System Functions
| Parameter | Specification |
| Video Call | Two-Way Video Capability |
| Information | Supports Voice, Image, SMS, and Other Information |
| Elevator Call | Supported |
| Security Alarm | Supported |
| Household intercom | Supports ( 8-Channel Wired Defense Zones) |
| Call Management Center | Supported |
Conventional Parameters
| Parameter | Specification |
| Power Supply | 12V 2A |
| Operating Temperature Range | -10°C-60°C |
| Storage Temperature | -20°C-70°C |
| Power Consumption | 20W（MAX） |
| Installation Method | Wall-mounted installation |
| Device Dimensions | 220*122*21mm |
| | |
| Apartment | Hotel | Villa |
