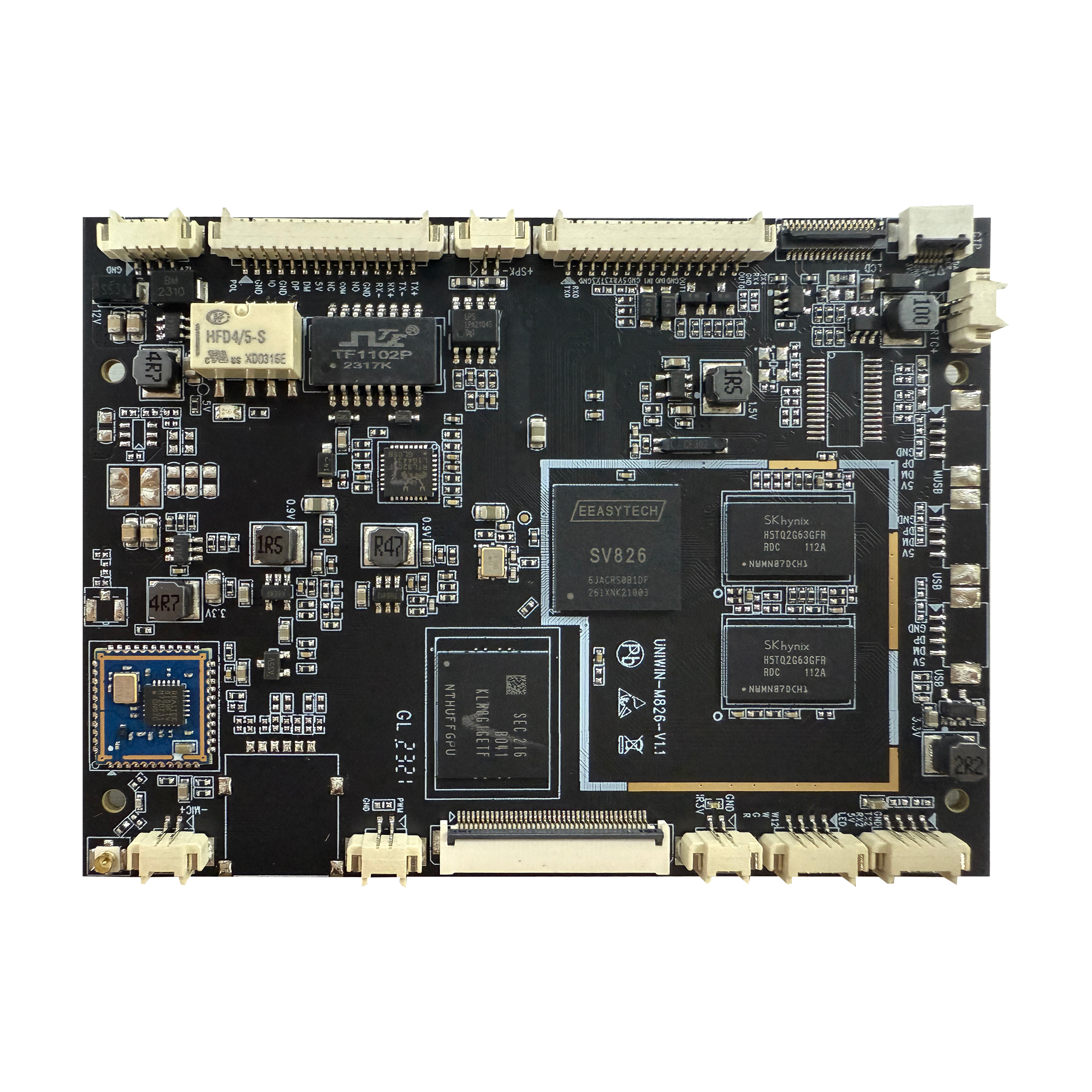

The AI-Powered Access Control Linux Motherboard M826 is a high-performance Linux motherboard designed for AI-powered face recognition access control and attendance systems. Built around the EEASYTECH SV826 dual-core ARM Cortex-A7 processor (1.5GHz) and a 1.5TOPS NPU accelerator, it delivers lightning-fast, accurate facial authentication with dual-camera liveness detection to prevent spoofing.
It is ideal for smart cities, offices, and residential complexes, and it merges AI precision with robust expandability.

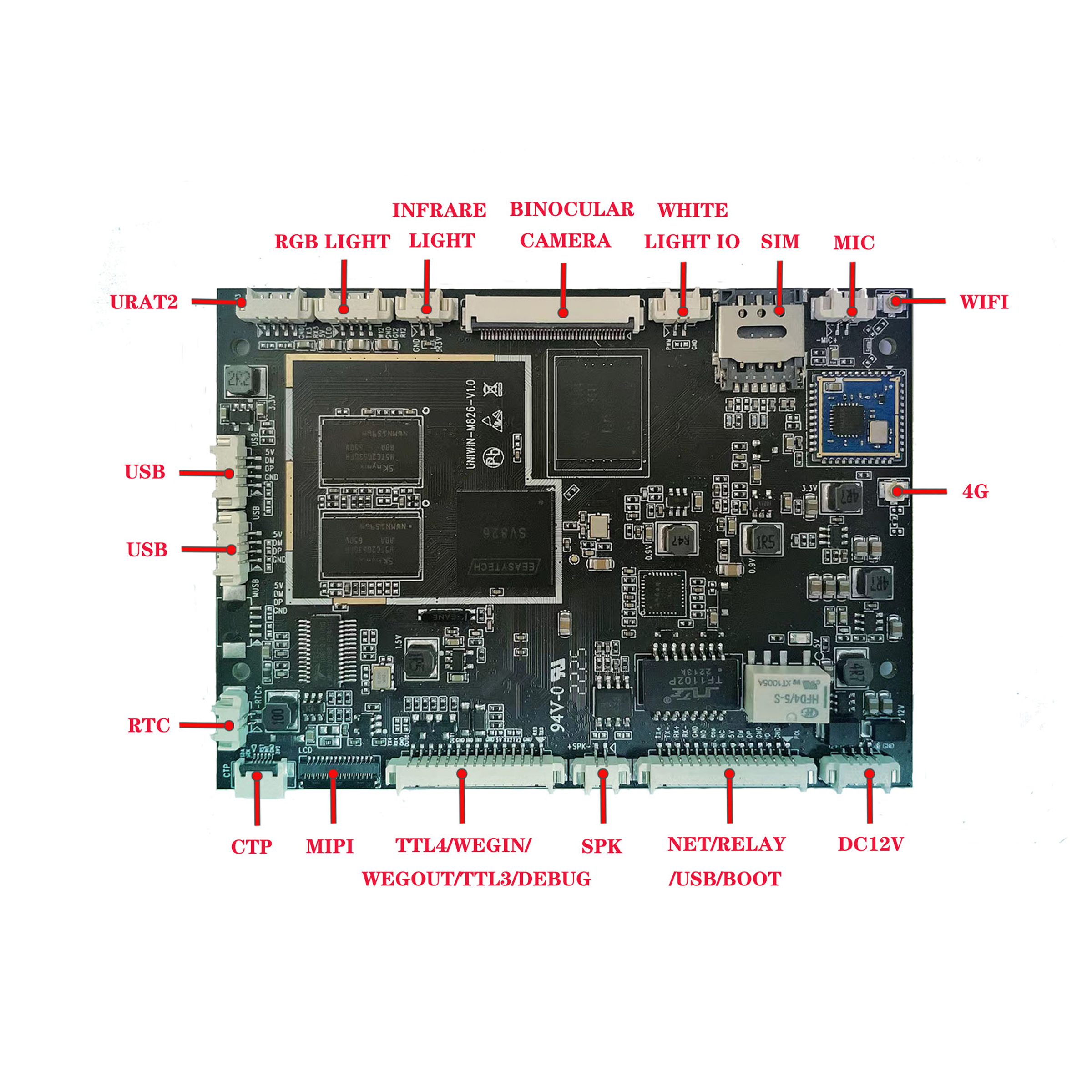

| Operating system | Linux |
| CPU | EEASYTECH SV826 Dual-core ARM Cortex-A7 1.5GHz |
| Memory (DDR) | DDR3 512MB/1GB/2GB optical (default: 512MB) |
| Storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| Display Interface | MIPI, up to 1920×1200 |
| Display voltage | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (support multi-point capacitive touch) |
| Audio | Supports MIC, 1 microphone interface |
| Built-in amplifier, supports 2W 8Ω speaker | |
| NPU | Built-in convolutional neural network accelerator NPU, 1.5T computing power |
| 3G/4G | Support 4G (optional) |
| USB | 3*USB（USB OTG Function） |
| Serial Port | 3*TTL (Wiegand IN/OUT, Relay) |
| IO | Supports door open button connection |
| Network | 100Mbps Ethernet port, supports Internet access |
| Equipped with WiFi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support 4G (optional) | |
| Face database | Support 50000 face databases |
| Power supply | DC12V/2A |
| Size | 95.4mmx70mmx8mm |
 |
 |
 |
|

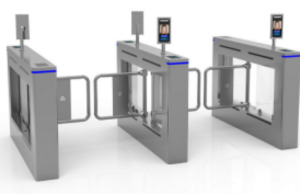

Barrier gate passage |
school |
office building |
 |
||
|
Intelligent door cabinet |
The AI-Powered Access Control Linux Motherboard M826 is a high-performance Linux motherboard designed for AI-powered face recognition access control and attendance systems. Built around the EEASYTECH SV826 dual-core ARM Cortex-A7 processor (1.5GHz) and a 1.5TOPS NPU accelerator, it delivers lightning-fast, accurate facial authentication with dual-camera liveness detection to prevent spoofing.
It is ideal for smart cities, offices, and residential complexes, and it merges AI precision with robust expandability.
| Operating system | Linux |
| CPU | EEASYTECH SV826 Dual-core ARM Cortex-A7 1.5GHz |
| Memory (DDR) | DDR3 512MB/1GB/2GB optical (default: 512MB) |
| Storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| Display Interface | MIPI, up to 1920×1200 |
| Display voltage | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (support multi-point capacitive touch) |
| Audio | Supports MIC, 1 microphone interface |
| Built-in amplifier, supports 2W 8Ω speaker | |
| NPU | Built-in convolutional neural network accelerator NPU, 1.5T computing power |
| 3G/4G | Support 4G (optional) |
| USB | 3*USB（USB OTG Function） |
| Serial Port | 3*TTL (Wiegand IN/OUT, Relay) |
| IO | Supports door open button connection |
| Network | 100Mbps Ethernet port, supports Internet access |
| Equipped with WiFi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support 4G (optional) | |
| Face database | Support 50000 face databases |
| Power supply | DC12V/2A |
| Size | 95.4mmx70mmx8mm |
|
|
|
|
Barrier gate passage |
school |
office building |
|
||
|
Intelligent door cabinet |
