Highlights:
(1) M358 uses Rockchip RK3568 (Cortex-A55x4) quad-core processor, equipped with Android11 system, main frequency up to 2.0GHz, supports 0.8T computing power, super performance;

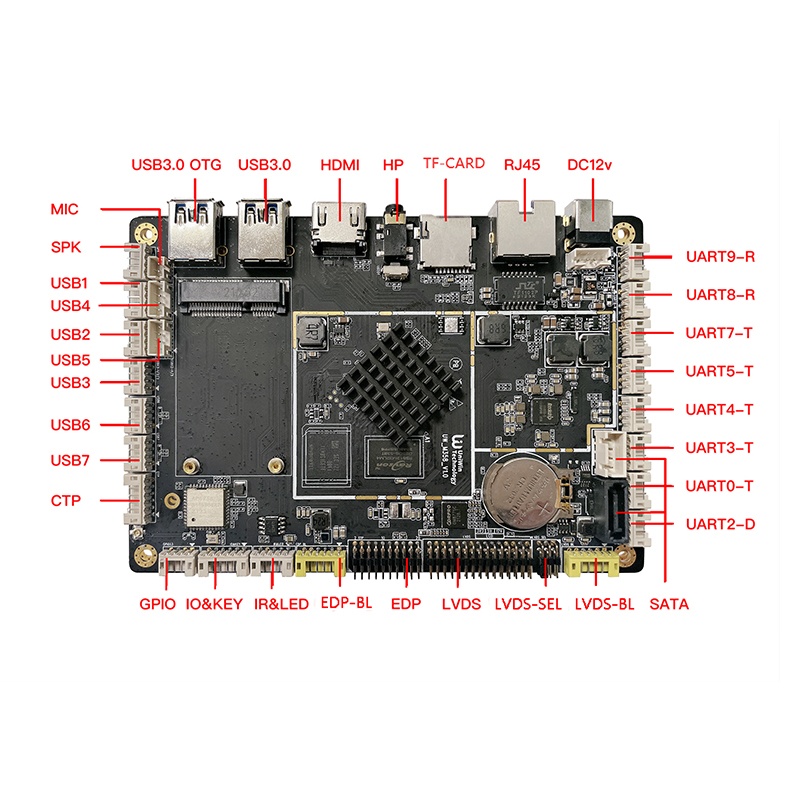

(2) Supports EDP/HDMI2.0/MIPI/LVDS multi-screen display;
(3) Rich expansion interfaces, 7 serial ports, 9 USB ports, TF card, PCIE, SATA and other expansion interfaces;
(4) 6-layer immersion gold PCB board, industrial-grade component selection to meet the requirements of complex, harsh, industrial control environment;
(5) Supports multiple operating systems (Android/Linux/kylin/Tongxin UOS/etc.);
Industrial AIoT Motherboard M358 is powered by RK3568 Quad-Core (Cortex-A55 @ 2.0GHz) with 0.8TOPS NPU which accelerat AI workloadsand and Android 11 Optimized for AI applications with enhanced stability.
With 4K Ultra HD resolution for crisp industrial HMI and digital signage,M358 support Quad-Screen Output.It is the preferred model of industrial-grade AI computing motherboard.
FAQ
Q: Why this M358 Stands Out?
A: 1.Superior Computing – 0.8TOPS NPU outperforms CPU-only solutions
2.Multi-Screen Flexibility – Drive up to 4 displays simultaneously
3.Rugged Construction – Built for harsh industrial environments
4.Future-Ready – Supports Android/Linux/KylinOS/UOS
| Operating system | Android 11 |
| CPU | Quad-core 64-bit Cortex-A55, with a maximum frequency of 2.0GHz and supports 0.8T computing power |
| GPU | Mali-G52 |
| Memory (DDR) | LPDDR4 2GB/4GB/8GB (label 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB/64GB/128GB/256GB optional (label 8GB) |
| External memory card | Maximum support 256GB |
| External Hard Drive | Support |
|
Display Interface |
1*LVDS interface (supports 6 or 8-bit single or dual channel), supports maximum resolution 1920×1080 |
| 1*EDP interface, supports maximum resolution 2560×1600 | |
| 1*MIPI interface, supporting maximum resolution 1920×1200 | |
| 1*HDMI interface, supports maximum resolution 4096×2160@60Hz | |
| Display voltage | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (supports multi-point resistive touch, multi-point capacitive touch)
Supports USB infrared, resistive, capacitive touch screen |
|
Audio |
Support MIC.1 microphone interface, support headphone microphone, support headphone output, built-in function, support 2-way 8Ω10W speakers |
| 3G/4G | Support 4G/5G PCIE interface module |
| USB | 9*USB HOST (2 onboard, 7 external) |
| Serial Port | 5*TTL (1 is the default Debug port) 2*RS232 |
|
Network |
RJ45 standard interface, 100M Ethernet interface, supports Ethernet |
| Equipped with Bluetooth + WIFI module, supports Wi-Fi 802.11a/b/g/n protocol | |
| Support Bluetooth 4.2 protocol, can support Bluetooth 4.2 protocol (OPTION) | |
| Power supply | DC12V3A (4PIN2.0 socket 12V power supply) |
| Size | 148mmx102mmx11mm |
 |
 |
 |
|
Advertising machine |
Cash register |
ID verification machine |
Industrial AIoT Motherboard M358 is powered by RK3568 Quad-Core (Cortex-A55 @ 2.0GHz) with 0.8TOPS NPU which accelerat AI workloadsand and Android 11 Optimized for AI applications with enhanced stability.
With 4K Ultra HD resolution for crisp industrial HMI and digital signage,M358 support Quad-Screen Output.It is the preferred model of industrial-grade AI computing motherboard.
