Highlights:
(1) Android 7.1/Android 10.0 operating system;
(2) Supports facial recognition payment camera;
(3) Rockchip3399 (Cortex-A72+Cortex-A53) 6-core architecture 2.0GHZ main frequency;
(4) Supports dual-screen display;
(5) Supports 4K full HD video decoding;
(6) 8-channel TTL serial communication, 5-channel USB port;

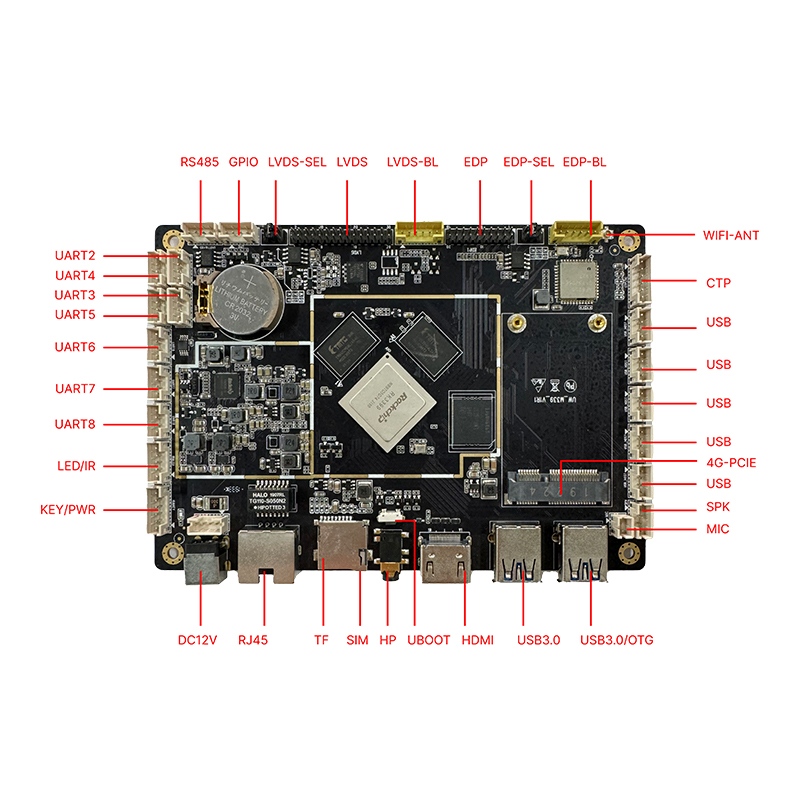

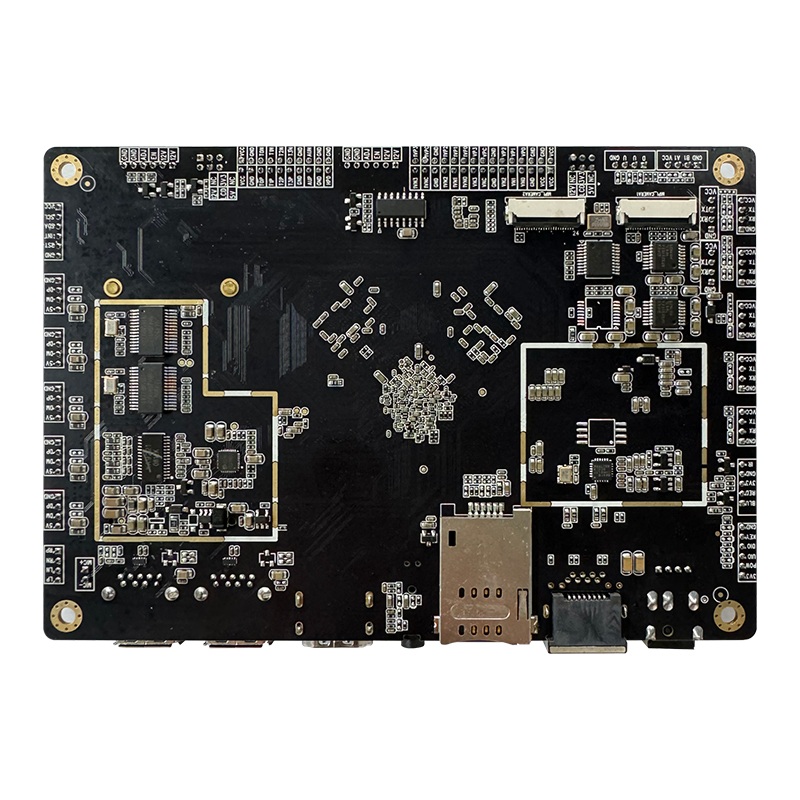

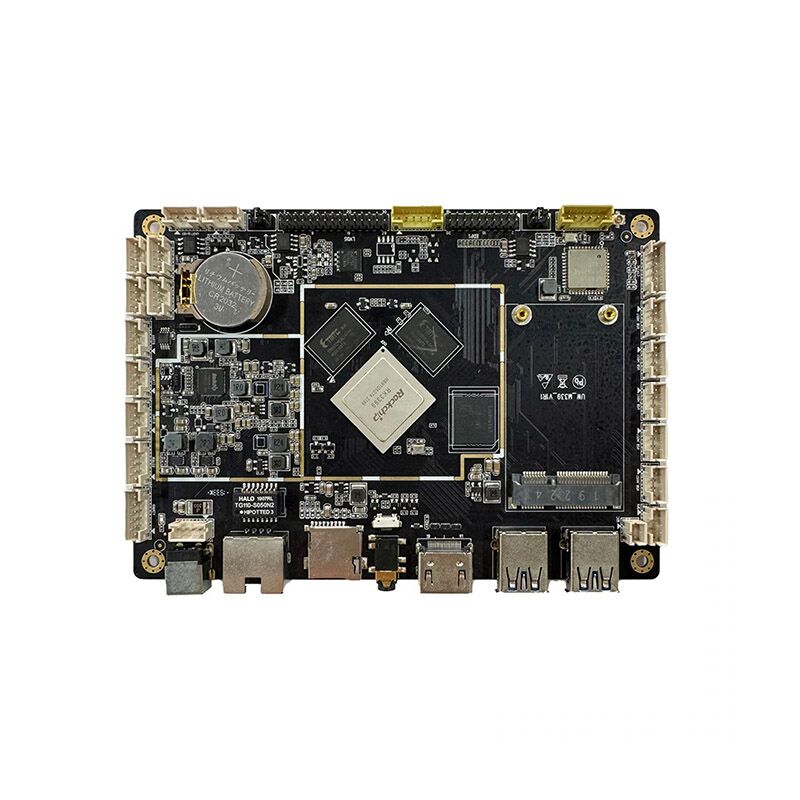

Rockchip RK3399 Industrial-Grade Motherboard M339 is AI-Powered Smart Terminal Solution.
Powered by Hexa-Core RK3399 (Dual Cortex-A72 + Quad Cortex-A53 @ 2.0GHz),M339 is premium performance for demanding applications.With 4K Ultra HD Decoding, it has smoothly playback of high-resolution content.
It has rich peripheral interfaces whihc support all gate equipment requirements.With multi-algorithm face recognition support, It is ideal for access control, attendance tracking, and facial payment systems.
FAQ
Q: Why this M339 stands out?
A: 1.Payment-ready – Complete facial recognition payment solution
2.Future-proof – 4K support with dual-display flexibility
3.Industrial strength – Robust processing with extensive I/O
4.Deployment-ready – Multiple OS options for easy integration
| Operating system | Android 7.1/10.0 |
| CPU | Rockchip RK3399 dual-core CortexA72, quad-core CortexA53, maximum frequency 2GHZ |
| GPU | Quad-core ARM Mali-T764 MP |
| Memory (DDR) | LPDDR4 1GB/2GB/3GB/4GB (labeled 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| External memory card | Support up to 128GB |
|
Display Interface |
1*LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Supports maximum resolution 1920×1080, supports 7-100″ display |
| 1*EDP interface (single channel 6 or 8 bits). Supports maximum resolution 1920×1080, 7″-100″ display | |
| 1*MIPI interface (single 8-bit). Supports maximum resolution 1920×1080 3.5″-13″ display | |
| 1*HDMI interface supports 1080P@60Hz, 4kxx2k@60Hz output | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*12C (supports multi-point resistive touch, multi-point capacitive touch)
Supports USB infrared, resistive, capacitive touch screen |
|
Audio |
Support headphone output, built-in amplifier, support 8Ω 10W*2 speakers |
| Support MIC, 1 microphone interface, support headphone microphone | |
| 3G/4G | Support 4g, onboard 4g-PCIE seat |
| USB | 7*USB HOST (2 onboard, 5 external) |
| Serial Port | 3*TTL (1 is the default Debug port) 4*RS232 1*485 (optional TTL) |
| IO | Support external power button, external button board or light board, with multiple available interrupt IO ports |
|
Network |
RJ45 standard interface, 100M Ethernet network |
| Equipped with Bluetooth + wifi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support Bluetooth 4.0 protocol, can support Bluetooth 4.2 protocol (optional) | |
| Power supply | DC12V/3A (4PIN2.0 socket 12V power supply) |
| Size | 148mm x102mm x11mm |
 |
 |
 |
|
New Retail |
Advertising machine |
Smart door lock |
