Highlights:
(1) RK3288 (Cortex-A17) 4 cores;
(2) Stable Android 7.1 system, providing rich custom APIs to facilitate customer application development;

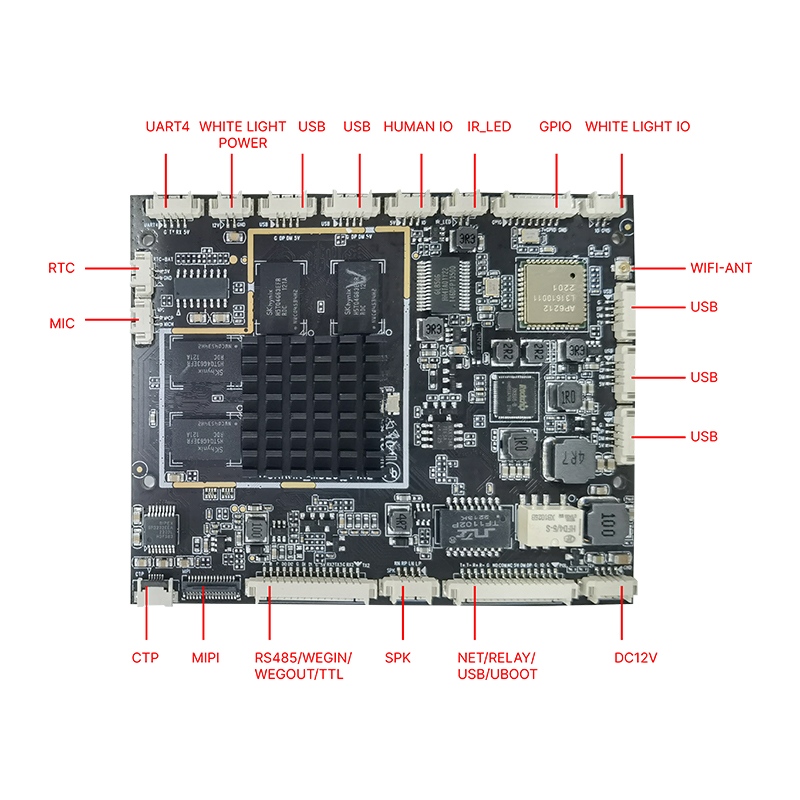

(3) Rich peripheral interfaces, 5 USB ports, 4 serial ports (2 TTL compatible 232 serial ports, 1 RS485 compatible TTL) and support for multiple GPIOs;
(4) Support for external 4G modules;
(5) Support for relay and Wiegand input and output;
(6) Commonly used in small and medium-sized all-in-one machines, wall-mounted, column-mounted, desktop and other forms;

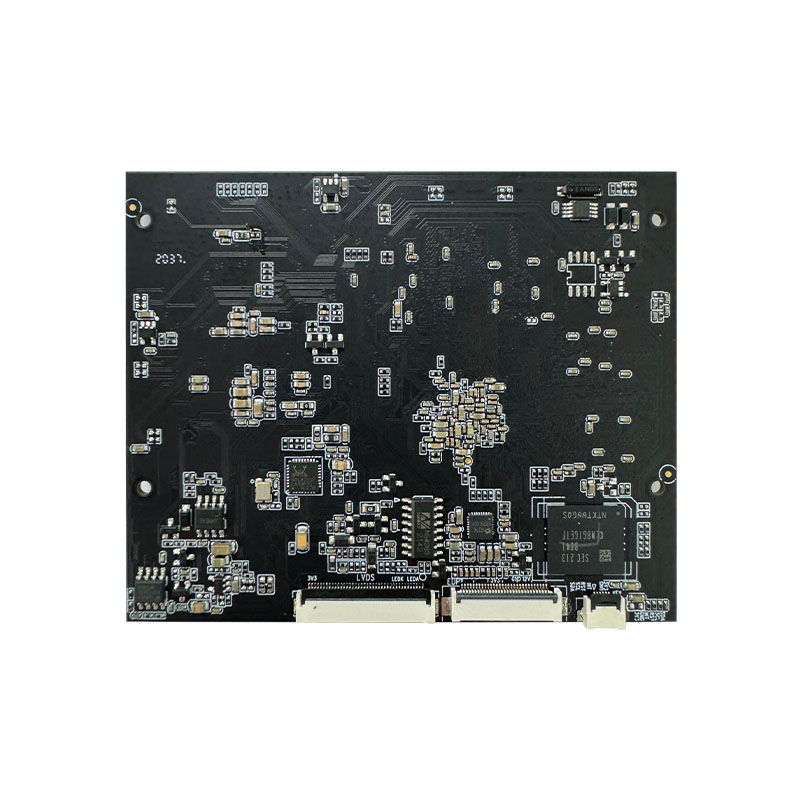

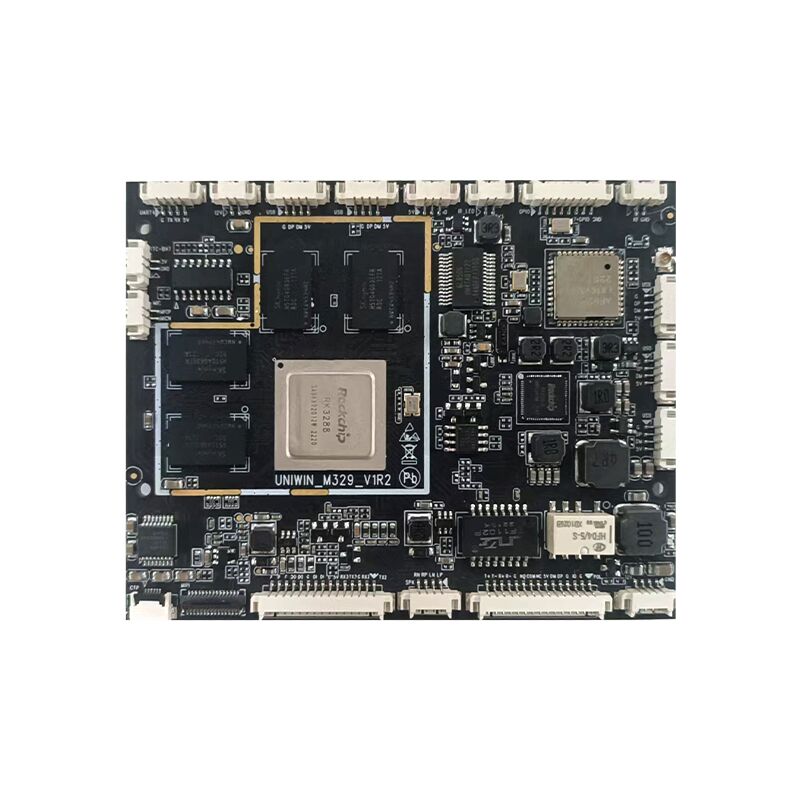

Rockchip RK3288 Industrial Motherboard M329 is Power & Versatility for Embedded Solutions.Powerd by Quad-core Cortex-A17 CPU and MALI-T760 MP4 GPU,M329 delivers smooth multitasking and reliable performance for industrial applications.Stable Android 7.1 OS is customizable platform with rich APIs for streamlined app development and fast deployment.
It is also ready for cellular connectivity expansion with 4G LTE module support.It is perfect for all-in-one solutions: wall-mounted, kiosk, desktop, or column installations.
FAQ
Q: Why choose M329?
A: 1.Industrial-grade reliability
2.High-performance processing
3.Flexible connectivity & expansion
4.Optimized for Android-based embedded applications
| Operating system | Android 7.1/10.0 |
| CPU | Rockchip RK3288, quad-core ARM Cortex A17 1.8 GHz |
| GPU | Quad-core ARM Mali-T764 MP |
| Memory (DDR) | DDR3 1GB/2GB/3GB/4GB (labeled 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| External memory card | Not supported |
|
Display Interface |
1*LVDS interface, supports maximum resolution 1366×768@60fps, supports 3.5″-13″ display |
| 1*EDP interface, supports maximum resolution 1920×1080 | |
| 1*MIPI interface, supports maximum resolution 1920×1080 3.5″-13″ display | |
| Onboard backlight | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*CTP 1*12C (supports multi-point resistive touch, multi-point capacitive touch)
Supports USB infrared, resistive, capacitive touch screen |
|
Audio |
1*4pin speaker interface, 8Ω 2W/4Ω 3W |
| Support MIC, 1 microphone interface | |
| 3G/4G | Support external USB interface 3G/4G module |
| USB | 6*USB HOST (one for OTG, 5 for external connection) |
| Serial Port | 3*TTL (1 of which is the default Debug port, 2 TTL compatible 232 serial communication interface), 1*485 (return to configure TTL) |
| IO | Supports human body sensing interface, can be connected to microwave module or light board, has multiple available interrupts 10 ports |
|
Network |
RJ45 standard interface, 100M Ethernet network |
| Equipped with Bluetooth + wifi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support Bluetooth 4.0 protocol, can support Bluetooth 4.2 protocol (optional) | |
| Power supply | DC12V/3A |
| Size | 95mmx76mm x9mm |
 |
 |
 |
|

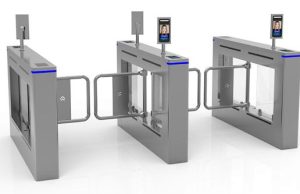

Gate channel |

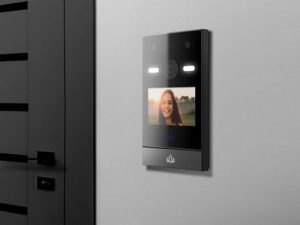

Dynamic face recognition equipment |

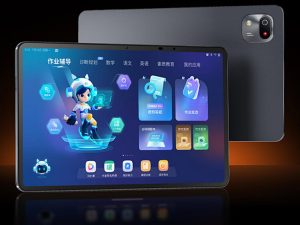

Campus electronic class sign |
 |
 |
|
|

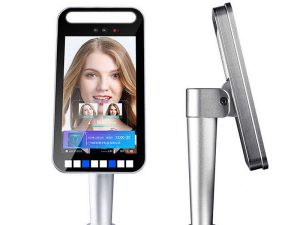

Smart access control |

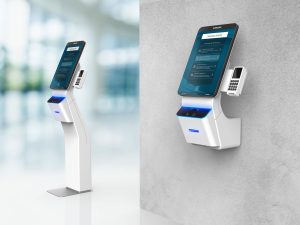

Visitor machine with ID card |
|
Rockchip RK3288 Industrial Motherboard M329 is Power & Versatility for Embedded Solutions.Powerd by Quad-core Cortex-A17 CPU and MALI-T760 MP4 GPU,M329 delivers smooth multitasking and reliable performance for industrial applications.Stable Android 7.1 OS is customizable platform with rich APIs for streamlined app development and fast deployment.
It is also ready for cellular connectivity expansion with 4G LTE module support.It is perfect for all-in-one solutions: wall-mounted, kiosk, desktop, or column installations.
FAQ
Q: Why choose M329?
A: 1.Industrial-grade reliability
2.High-performance processing
3.Flexible connectivity & expansion
4.Optimized for Android-based embedded applications
| Operating system | Android 7.1/10.0 |
| CPU | Rockchip RK3288, quad-core ARM Cortex A17 1.8 GHz |
| GPU | Quad-core ARM Mali-T764 MP |
| Memory (DDR) | DDR3 1GB/2GB/3GB/4GB (labeled 2GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| External memory card | Not supported |
|
Display Interface |
1*LVDS interface, supports maximum resolution 1366×768@60fps, supports 3.5″-13″ display |
| 1*EDP interface, supports maximum resolution 1920×1080 | |
| 1*MIPI interface, supports maximum resolution 1920×1080 3.5″-13″ display | |
| Onboard backlight | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*CTP 1*12C (supports multi-point resistive touch, multi-point capacitive touch)
Supports USB infrared, resistive, capacitive touch screen |
|
Audio |
1*4pin speaker interface, 8Ω 2W/4Ω 3W |
| Support MIC, 1 microphone interface | |
| 3G/4G | Support external USB interface 3G/4G module |
| USB | 6*USB HOST (one for OTG, 5 for external connection) |
| Serial Port | 3*TTL (1 of which is the default Debug port, 2 TTL compatible 232 serial communication interface), 1*485 (return to configure TTL) |
| IO | Supports human body sensing interface, can be connected to microwave module or light board, has multiple available interrupts 10 ports |
|
Network |
RJ45 standard interface, 100M Ethernet network |
| Equipped with Bluetooth + wifi module, supports Wi-Fi 802.11b/g/n protocol | |
| Support Bluetooth 4.0 protocol, can support Bluetooth 4.2 protocol (optional) | |
| Power supply | DC12V/3A |
| Size | 95mmx76mm x9mm |
|
|
|
|
Gate channel |
Dynamic face recognition equipment |
Campus electronic class sign |
|
|
|
|
Smart access control |
Visitor machine with ID card |
|
