Highlights:
(1) Quad-core Android system motherboard with the best cost-effectiveness;

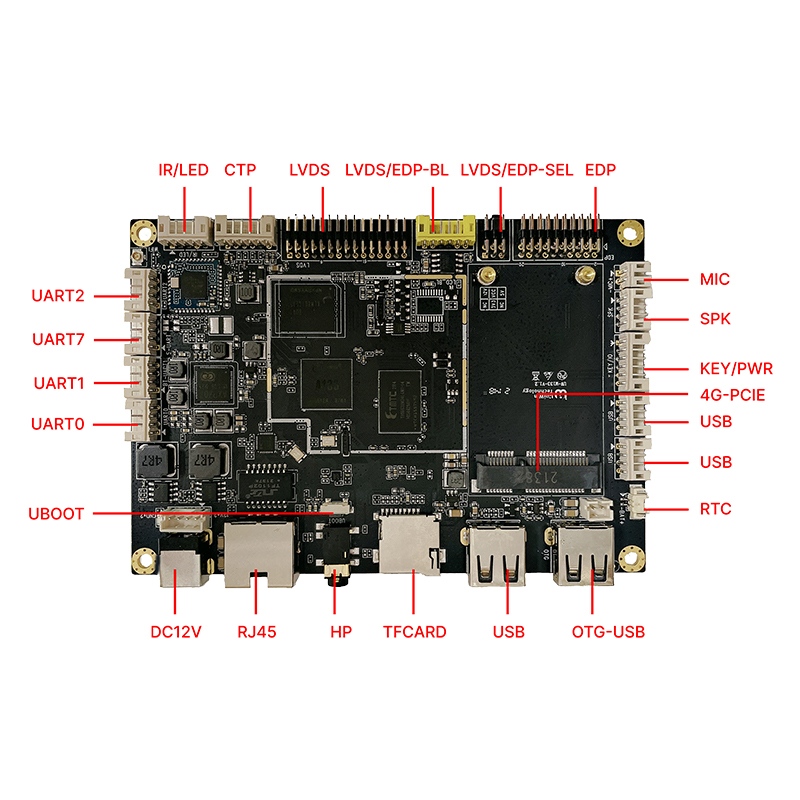

(2) Supports multiple screen modes such as LVDS/MIPI/RGB;
(3) 3 serial ports, 4 USB ports, TF card, SIM card slot, PCIE 4G/5G communication module and other expansion interfaces;
(4) Stable Android system, providing rich custom APIs to facilitate customer application development;
(5) 6-layer immersion gold PCB board and industrial-grade component selection to meet the requirements of complex, harsh and industrial control environments;
Industrial-Grade M133 Motherboard delivers robust performance for demanding applications through its 6-layer immersion gold PCB construction, ensuring enhanced durability and signal integrity. It provides comprehensive I/O interfaces to support flexible system expansion requirements.
The motherboard features a quad-core Arm® Cortex®-A53 CPU paired with a PowerVR GE8300 GPU, combining to deliver efficient parallel processing capabilities.
Multiple integrated computing units work in concert to enable superior multitasking performance.
With its optimized cost-performance ratio, the M133 serves as an ideal solution for entry-level industrial applications.
As a reference design platform, it offers reliable operation for cost-sensitive embedded systems while maintaining industrial-grade quality standards.
FAQ
Q: What is Industrial-Grade Motherboard M133 mainly uesd?
A: it is widely used in biometric and access control system, like Video Intercom, smart access control and smart storage cabinet etc.
Q: How can I order Industrial-Grade Motherboard M133?
A: You can reach us by Tel:+86 -15820426972 or by Email at violet.liu@uniwin-global.com or violetliu51@gmail.com.
| Operating system | Android10 |
| CPU | Allwinner A133, quad-core ARM Cortex A53 1.6 GHz |
| GPU | GE8300 |
| Memory (DDR) | LPDDR4 1GB (2GB optional, up to 4GB) |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
| External memory card | Support up to 128GB |
|
Display Interface |
1 LVDS interface (single channel, 6 or 8 bit dual channel) supports maximum resolution 1920×1080 |
| 1 EDP interface, supporting maximum resolution 1920×1080 | |
| 1 MIPI interface, supporting maximum resolution 1920×1080 | |
| Onboard backlight | Support 3.3V/5V/12V optional |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*12C (supports multi-point resistive touch, multi-point capacitive touch) Supports USB infrared, resistive, capacitive touch screen |
|
Audio |
Support MIC, 1 microphone interface, support headphone microphone |
| Support headphone output, built-in amplifier, support 2W*2 8 ohm speakers | |
| 4G/5G | Support 4g/5g onboard PCIE socket |
| USB | 2-way USB interface, two onboard TYPE-A interfaces |
| Serial Port | 3 TTL; can also be configured as 1 TTL or 2 RS232 |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
|
Network |
RJ45 standard interface, 100M Ethernet interface, support Ethernet
|
| Equipped with Bluetooth + WiFi module, supports Wi-Fi 802.11b/g/n protocol, default single WiFi (Bluetooth optional) | |
| Support Bluetooth 4.2 protocol, can support Bluetooth 4.2 protocol (OPTION) | |
| Power supply | DC12V3A (4PIN2.0 socket 12V power supply) |
| Size | 126mm×86.8mm×11mm |
 |
 |
 |
|
Building video intercom |
Smart Home |
Smart access control |
 |
 |
 |
|
Smart storage cabinet |
Smart Education |
Smart Healthcare |
