Highlights:
(1) Support SIP and private protocol video intercom;
(2) Support wired and wireless networks (WiFi and 4G);
(3) Dynamic face recognition, multiple door opening methods (card/face/password/fingerprint, etc.);
(4) Support relay and Wiegand input and output;
(5) Multiple sets of standard docking protocols (http/websocket/mqtt) to facilitate customer customized development;

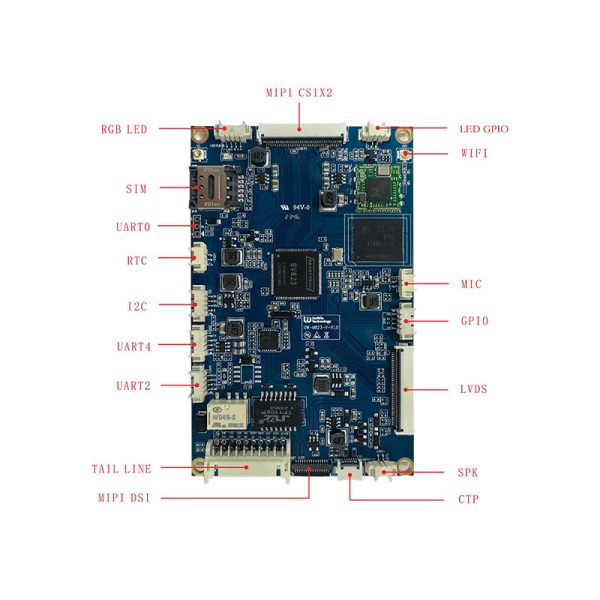

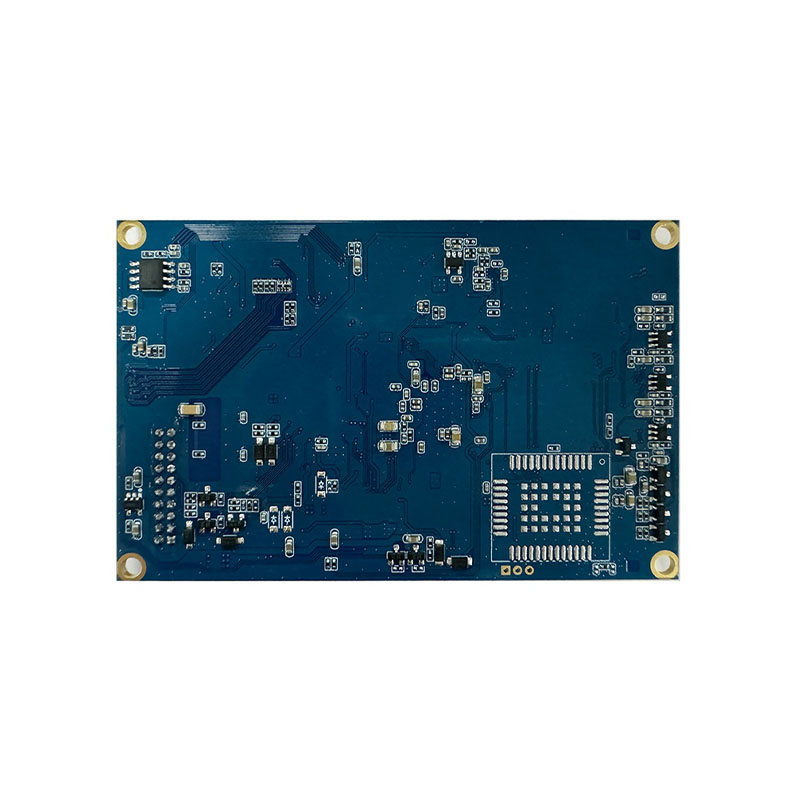

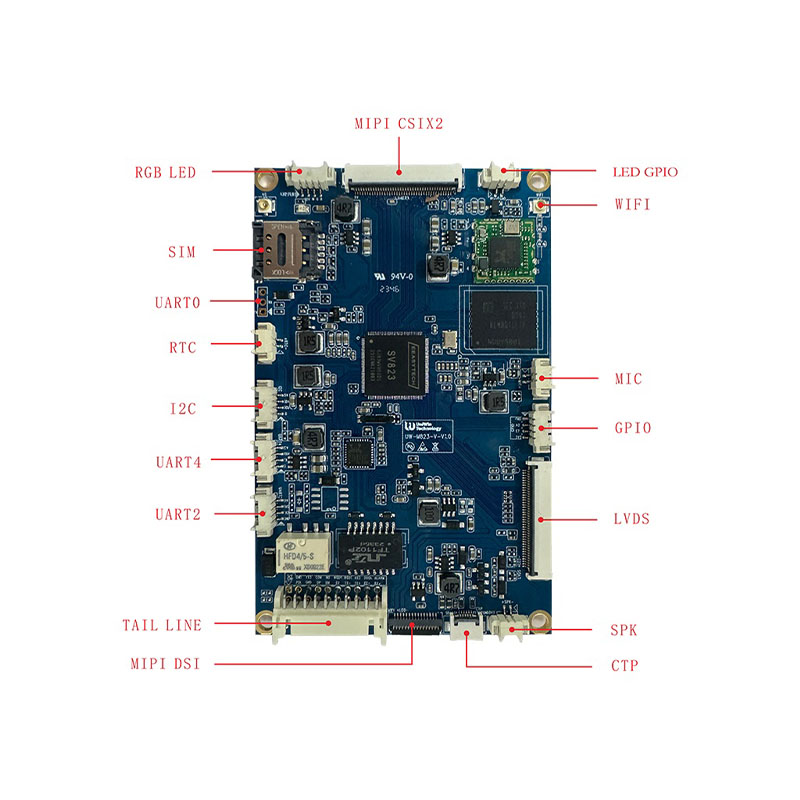

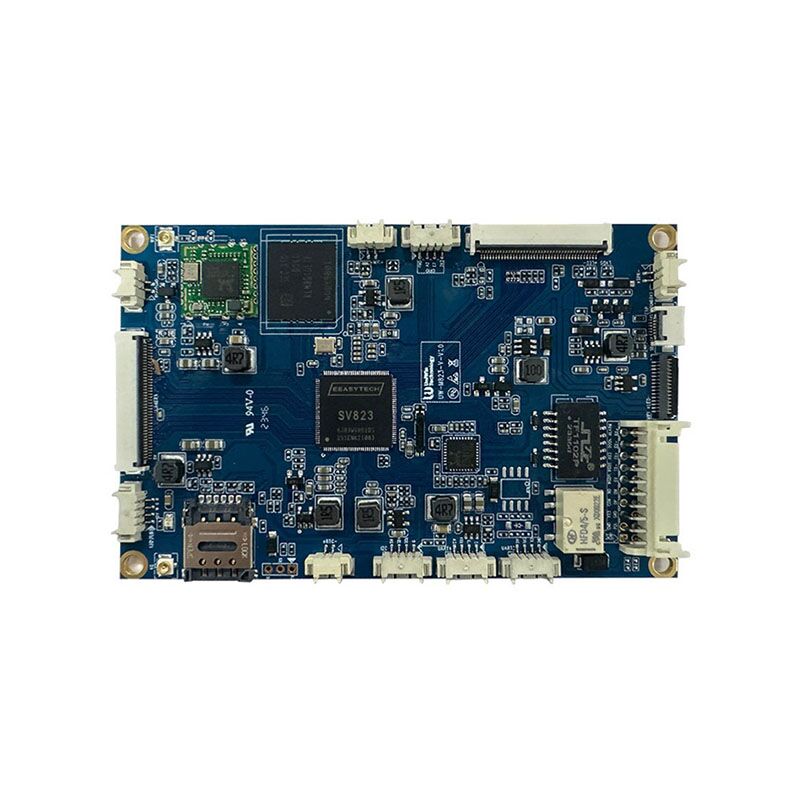

Face Recognition Motherboard E823-V is Your All-in-One Intelligent Access Control Solution.
The E823-V Face Recognition Motherboard redefines access control with its advanced AI capabilities and robust connectivity options, delivering seamless, secure, and smart entry management for modern environments.
It supports both SIP & private protocols for versatile video communication.High-definition audio/video ensures secure and reliable security interactions.Wired Ethernet + Wireless (WiFi/4G) ensures 24/7 reliable operation with automatic failover.
Dynamic face recognition is with anti-spoofing technology. What’s more, complete SDK support allows for tailor-made solutions to meet your exact requirements.
FAQ
Q: Could you list the EEASYTECH face recognition motherboard solution from entry-level to high-end.
A: Entry level E830-V, then E230-V, E518-V and E823-V.
| Operating system | Linux |
| CPU | EEASYTECH SV823 Dual-Core CPU |
| Memory (DDR) | Built-in 256M DDR3 |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
|
Display Interface |
MIPI interface, supports maximum resolution 1920×1200@60Hz |
| LVDS interface, supports maximum resolution 1280×800@60Hz | |
| Display voltage | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (support multi-point capacitive touch) |
|
Audio |
Built-in amplifier, supports 8Ω 2W speakers |
| Support MIC, 1 microphone interface | |
| NPU | Built-in convolutional neural network accelerator NPU, 1T computing power |
| 3G/4G | Support 4G (optional) |
| USB | 1*USB_OTG |
| Serial Port | 3*TTL (one port is used as Debug port by default) |
| IO | 1-way Wiegand IN/OUT onboard relay, multiple IOs available |
|
Network |
100M Ethernet interface, support Ethernet |
| Equipped with WIFI module, supports Wi-Fi 802.11b/g/n protocol | |
| Face database | Support 5000 face databases |
| Power supply | DC12V/2A |
| Size | 95.4mmx60.9mmx10mm |
 |
 |
 |
|
villa |
apartment |
Residential area |
Face Recognition Motherboard E823-V is Your All-in-One Intelligent Access Control Solution.
The E823-V Face Recognition Motherboard redefines access control with its advanced AI capabilities and robust connectivity options, delivering seamless, secure, and smart entry management for modern environments.
It supports both SIP & private protocols for versatile video communication.High-definition audio/video ensures secure and reliable security interactions.Wired Ethernet + Wireless (WiFi/4G) ensures 24/7 reliable operation with automatic failover.
Dynamic face recognition is with anti-spoofing technology. What’s more, complete SDK support allows for tailor-made solutions to meet your exact requirements.
FAQ
Q: Could you list the EEASYTECH face recognition motherboard solution from entry-level to high-end.
A: Entry level E830-V, then E230-V, E518-V and E823-V.
| Operating system | Linux |
| CPU | EEASYTECH SV823 Dual-Core CPU |
| Memory (DDR) | Built-in 256M DDR3 |
| Built-in storage (emmc) | EMMC 8GB/16GB/32GB optional (label 8GB) |
|
Display Interface |
MIPI interface, supports maximum resolution 1920×1200@60Hz |
| LVDS interface, supports maximum resolution 1280×800@60Hz | |
| Display voltage | Not available |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | 1*I2C (support multi-point capacitive touch) |
|
Audio |
Built-in amplifier, supports 8Ω 2W speakers |
| Support MIC, 1 microphone interface | |
| NPU | Built-in convolutional neural network accelerator NPU, 1T computing power |
| 3G/4G | Support 4G (optional) |
| USB | 1*USB_OTG |
| Serial Port | 3*TTL (one port is used as Debug port by default) |
| IO | 1-way Wiegand IN/OUT onboard relay, multiple IOs available |
|
Network |
100M Ethernet interface, support Ethernet |
| Equipped with WIFI module, supports Wi-Fi 802.11b/g/n protocol | |
| Face database | Support 5000 face databases |
| Power supply | DC12V/2A |
| Size | 95.4mmx60.9mmx10mm |
|
|
|
|
villa |
apartment |
Residential area |
