Highlights:
(1) Quad-core ARM Cortex A7, with a maximum frequency of 1.5GHz;
(2) Supports LVDS dot screen, MIPI dot screen, CVBS input and output, VGA output, YPbPr output and HDMI high-definition output;
(3) Rich expansion interfaces such as 4 serial ports, 3 USB ports, 2 SPI, more than 10 GPIOs;
(4) Supports Android and Linux systems;
Application areas: building video intercom, smart home, smart access control, smart education, smart medical care, smart commercial display, etc.

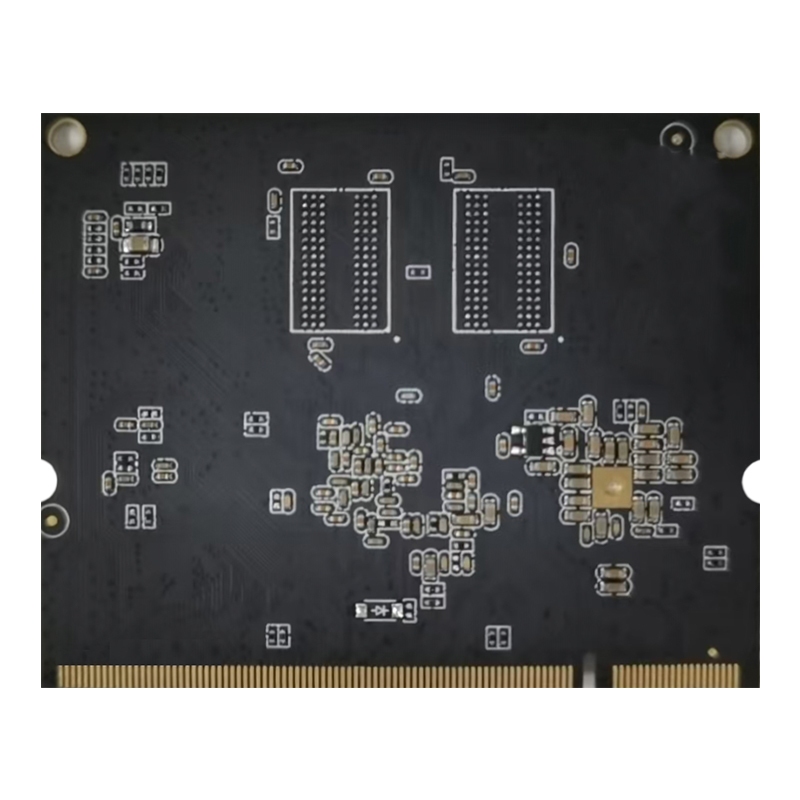

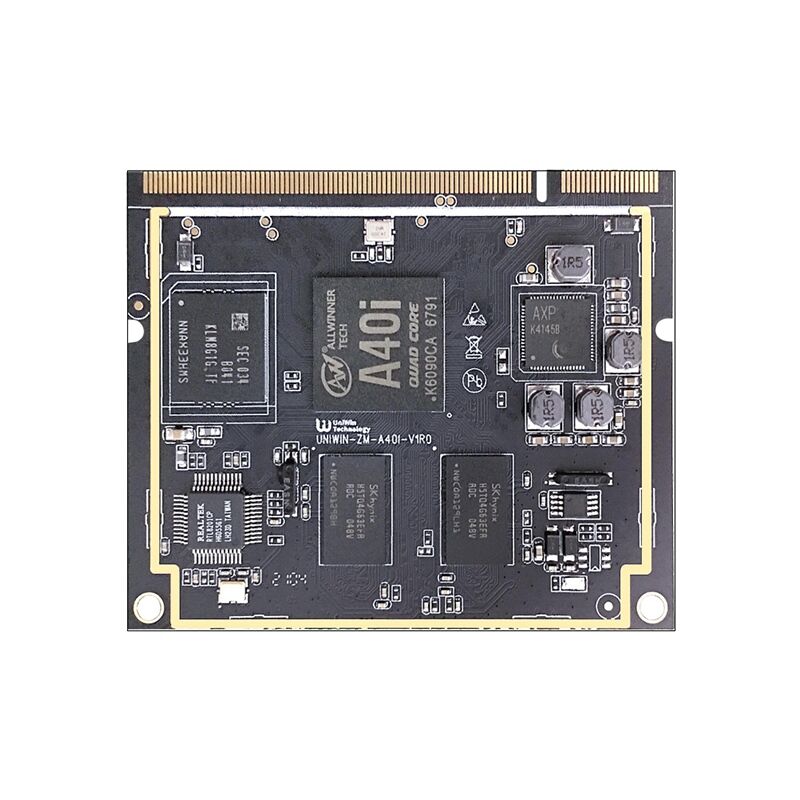

Industrial-Grade Allwinner A40i Core Board delivers the perfect balance of performance and value for mid-range industrial applications.
Powered by a quad-core ARM Cortex-A7 processor running at 1.5GHz with Mali400 MP2 GPU acceleration, this solution ensures reliable operation even in demanding 24/7 industrial environments.
This versatile core board eliminates compatibility headaches by supporting virtually all display types through a single solution, significantly reducing your adapter costs and installation complexity.
Whether you’re upgrading factory automation systems, industrial HMIs, digital signage, or equipment monitoring displays, the A40i delivers premium features at a mid-range price point that makes it the smart choice for cost-conscious industrial applications.
FAQ
Q: Do you offer OEM and ODM services for your product lines?
A: Yes, Uniwin-Global offers both OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services.
We can tailor our Motherboards, Attendance Terminals, Apartment Intercoms, and Villa Intercoms to meet your specific requirements.
| Operating system | Android 4.4/6.0/7.1 |
| CPU | Allwinner A40i, quad-core ARM Cortex A7 1.5 GHz |
| GPU | Mali400 MP2 |
| Memory(ddr） | DDR3 1GB/2GB |
| Built-in storage(emmc） | EMMC 8GB/16GB/32GB Optional (label 8GB) |
| Display Interface | 1 LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Supports maximum resolution of 1920×1080 and supports 7″-100″ displays |
| 1 MIPI interface, supports maximum resolution of 1920×1080, supports 3.5″-13″ display | |
| 1 RGB888 interface, supporting maximum resolution 1920×1080 | |
| Support CVBS output | |
| Support Ypbpr and VGA output | |
| HDMI 1.4 output 1080P | |
| Video Input | Support 1 CVBS input |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support 12C (support multi-point resistive touch, multi-point capacitive touch) |
| Support USB infrared, resistance, capacitive touch screen | |
| Audio | Support left and right channels and microphone |
| USB | Support 1-way USB OTG, 2-way USB HOST |
| Serial Port | 4-channel TTL (1 channel is the default debug port) |
| IO | 10 or more GPIOs |
| Network | Supports 1 100M Ethernet interface (built-in network PHY) and 1 Gigabit Ethernet RGMII interface |
| Support WI-FI & Bluetooth interface（SDIO&UART） | |
| Power supply | DC12V3A |
| size | 67.7mm x55.4mmx 5.5mm |
 |
 |
 |
|
Building video intercom |

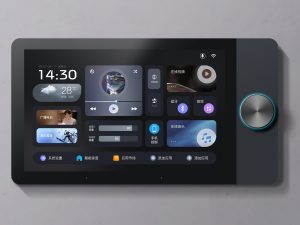

Smart Home |
Smart access control |
 |
 |
 |
|

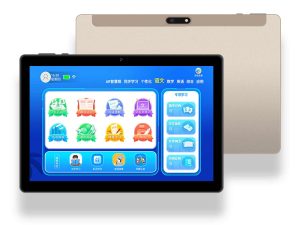

Smart Education |

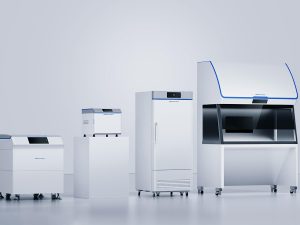

Smart Healthcare |
Smart Business Display |
Industrial-Grade Allwinner A40i Core Board delivers the perfect balance of performance and value for mid-range industrial applications.
Powered by a quad-core ARM Cortex-A7 processor running at 1.5GHz with Mali400 MP2 GPU acceleration, this solution ensures reliable operation even in demanding 24/7 industrial environments.
This versatile core board eliminates compatibility headaches by supporting virtually all display types through a single solution, significantly reducing your adapter costs and installation complexity.
Whether you’re upgrading factory automation systems, industrial HMIs, digital signage, or equipment monitoring displays, the A40i delivers premium features at a mid-range price point that makes it the smart choice for cost-conscious industrial applications.
FAQ
Q: Do you offer OEM and ODM services for your product lines?
A: Yes, Uniwin-Global offers both OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services.
We can tailor our Motherboards, Attendance Terminals, Apartment Intercoms, and Villa Intercoms to meet your specific requirements.
| Operating system | Android 4.4/6.0/7.1 |
| CPU | Allwinner A40i, quad-core ARM Cortex A7 1.5 GHz |
| GPU | Mali400 MP2 |
| Memory(ddr） | DDR3 1GB/2GB |
| Built-in storage(emmc） | EMMC 8GB/16GB/32GB Optional (label 8GB) |
| Display Interface | 1 LVDS interface (single channel, 6-bit dual channel, 8-bit dual channel). Supports maximum resolution of 1920×1080 and supports 7″-100″ displays |
| 1 MIPI interface, supports maximum resolution of 1920×1080, supports 3.5″-13″ display | |
| 1 RGB888 interface, supporting maximum resolution 1920×1080 | |
| Support CVBS output | |
| Support Ypbpr and VGA output | |
| HDMI 1.4 output 1080P | |
| Video Input | Support 1 CVBS input |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support 12C (support multi-point resistive touch, multi-point capacitive touch) |
| Support USB infrared, resistance, capacitive touch screen | |
| Audio | Support left and right channels and microphone |
| USB | Support 1-way USB OTG, 2-way USB HOST |
| Serial Port | 4-channel TTL (1 channel is the default debug port) |
| IO | 10 or more GPIOs |
| Network | Supports 1 100M Ethernet interface (built-in network PHY) and 1 Gigabit Ethernet RGMII interface |
| Support WI-FI & Bluetooth interface（SDIO&UART） | |
| Power supply | DC12V3A |
| size | 67.7mm x55.4mmx 5.5mm |
|
|
|
|
Building video intercom |
Smart Home |
Smart access control |
|
|
|
|
Smart Education |
Smart Healthcare |
Smart Business Display |
