Highlights:
(1) Quad-core 64-bit A53 core, up to 1.6GHz main frequency;
(2) Supports single-channel or dual-channel LVDS dot screen or 1-channel MIPI screen;
(3) 3 serial ports, 2 USB ports, 2X SDIO, RGMII, 2X MIPI CSI, AUDIO, I2C and other expansion interfaces;
(4) Stable Android system, providing rich custom APIs to facilitate customer application development;

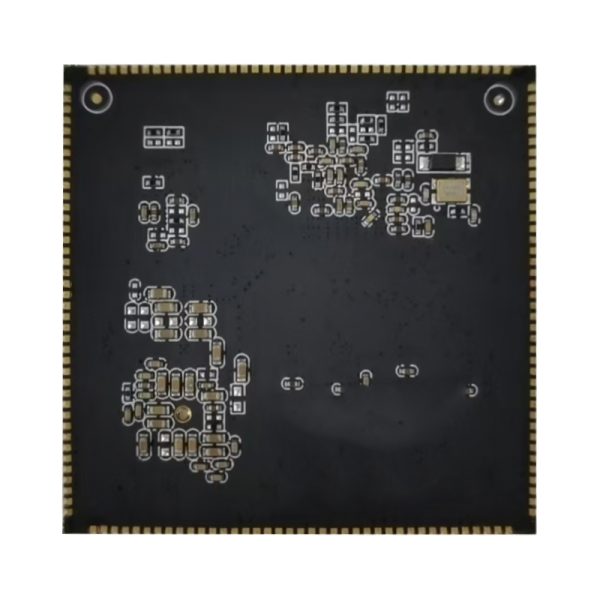

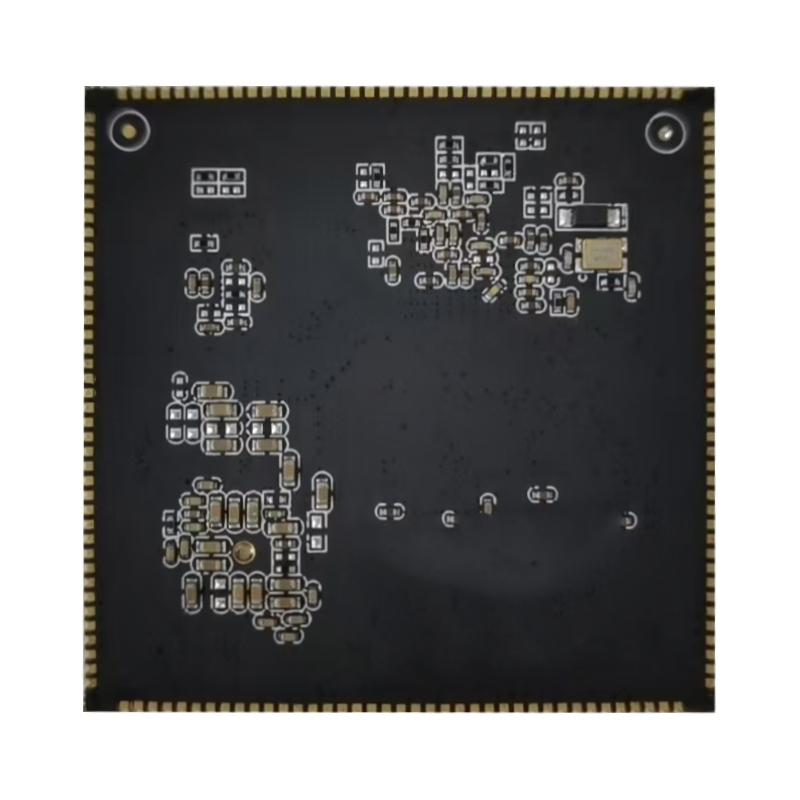

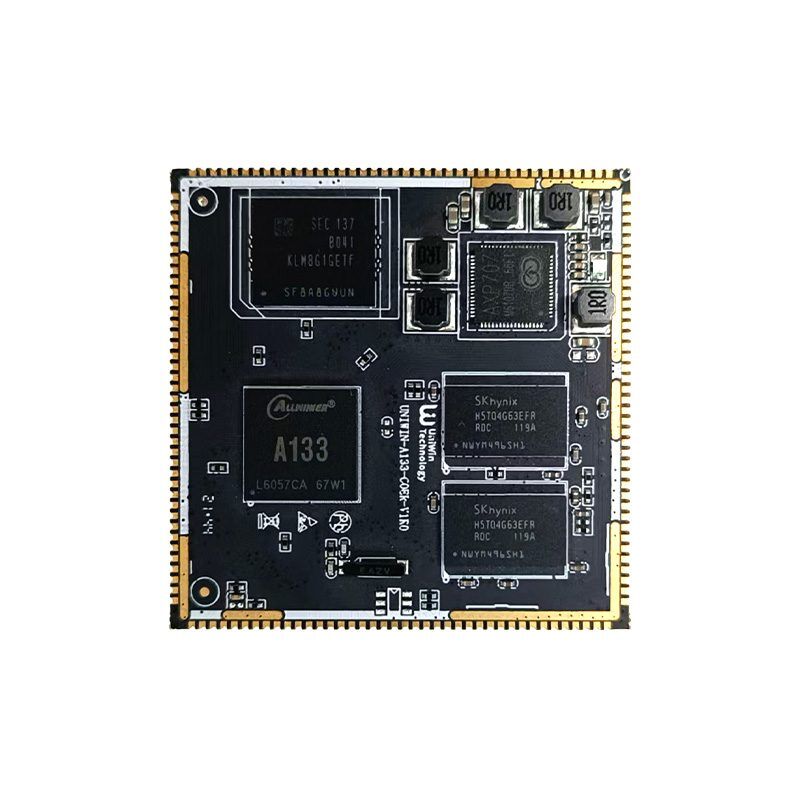

Industrial-Grade A133 Core Board – Compact yet robust, this ultra-small form factor module delivers stable Android performance.
Equipped with a quad-core Arm® Cortex®-A53 CPU and Imagination PowerVR GE8300 GPU, the A133 integrates multiple computing units for efficient multitasking.
It features advanced hardware-accelerated encoding/decoding; rich display interfaces for versatile connectivity
and cost-optimized for entry-level customized industrial motherboards.
FAQ
Q: what is the size of Industrial-Grade A133 Core Board?
A: 50.0mm*49.6mm*5.45mm
Q: If I choose this Industrial-Grade A133 Core Board,how many other work need to do?
A: Your hardward need to draw circuit board according to your product and we will provide technology support for circuit board review and software debugging.
| Operating system | Android10 |
| CPU | Allwinner A133, quad-core ARM Cortex A53 1.6 GHz |
| GPU | GE8300 |
| Memory(ddr） | DDR3 1GB (2GB optional, maximum 4GB) |
| Built-in storage(emmc） | EMMC 8GB/16GB/32GB Optional (label 8GB) |
| External memory card | SDIO supports TF card expansion, up to 128GB |
| Display Interface | 1 LVDS interface (single channel, 6 or 8 bit dual channel) supports maximum resolution 1920×1080 |
| 1 MIPI interface, supporting maximum resolution 1920×1080 | |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support 12C (support multi-point resistive touch, multi-point capacitive touch) |
| Support USB infrared, resistance, capacitive touch screen | |
| Audio | Support MIC*2 |
| Support headphone output | |
| USB | 2-way USB interface |
| Serial Port | 3 TTL (can also be configured as 1 TTL or 2 RS232) |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
| Network
|
RRGMII Ethernet interface |
| SDIO&UART*PCM interface, supports external WI-FI/BT module | |
| Power supply | DC 12V3A |
| Size | 50.0mm×49.6mm×5.45mm |
 |
 |
 |

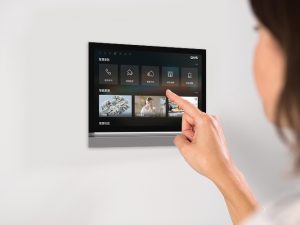

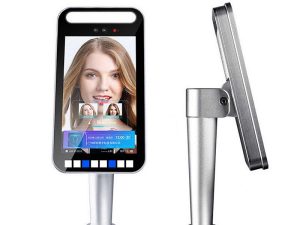

| AI Electronic Scale | Building video intercom | Smart access control |
 |
 |
 |

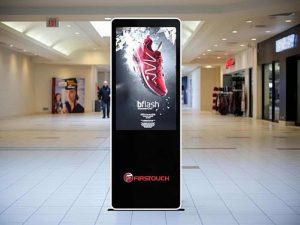

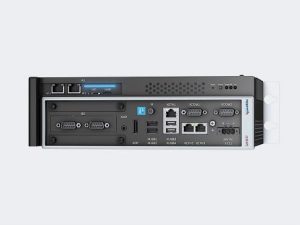

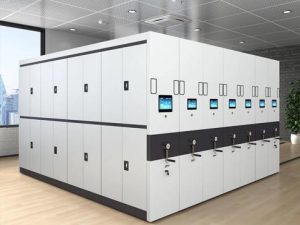

| Smart storage cabinet | Smart Business Display | Industrial computer |
 |
||

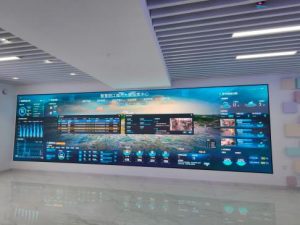

| Smart big screen |
Industrial-Grade A133 Core Board – Compact yet robust, this ultra-small form factor module delivers stable Android performance.
Equipped with a quad-core Arm® Cortex®-A53 CPU and Imagination PowerVR GE8300 GPU, the A133 integrates multiple computing units for efficient multitasking.
It features advanced hardware-accelerated encoding/decoding; rich display interfaces for versatile connectivity
and cost-optimized for entry-level customized industrial motherboards.
FAQ
Q: what is the size of Industrial-Grade A133 Core Board?
A: 50.0mm*49.6mm*5.45mm
Q: If I choose this Industrial-Grade A133 Core Board,how many other work need to do?
A: Your hardward need to draw circuit board according to your product and we will provide technology support for circuit board review and software debugging.
| Operating system | Android10 |
| CPU | Allwinner A133, quad-core ARM Cortex A53 1.6 GHz |
| GPU | GE8300 |
| Memory(ddr） | DDR3 1GB (2GB optional, maximum 4GB) |
| Built-in storage(emmc） | EMMC 8GB/16GB/32GB Optional (label 8GB) |
| External memory card | SDIO supports TF card expansion, up to 128GB |
| Display Interface | 1 LVDS interface (single channel, 6 or 8 bit dual channel) supports maximum resolution 1920×1080 |
| 1 MIPI interface, supporting maximum resolution 1920×1080 | |
| Screen rotation | Support 0, 90, 180 and 270 degree manual rotation |
| Touchscreen | Support 12C (support multi-point resistive touch, multi-point capacitive touch) |
| Support USB infrared, resistance, capacitive touch screen | |
| Audio | Support MIC*2 |
| Support headphone output | |
| USB | 2-way USB interface |
| Serial Port | 3 TTL (can also be configured as 1 TTL or 2 RS232) |
| IO | Support external power button, reset button or external button board or light board, with multiple available interrupt IO ports |
| Network
|
RRGMII Ethernet interface |
| SDIO&UART*PCM interface, supports external WI-FI/BT module | |
| Power supply | DC 12V3A |
| Size | 50.0mm×49.6mm×5.45mm |
|
|
|
| AI Electronic Scale | Building video intercom | Smart access control |
|
|
|
| Smart storage cabinet | Smart Business Display | Industrial computer |
|
||
| Smart big screen |
