M806-V

Highlights

（1） Offline face recognition technology with recognition speed less than 300ms

（2）Supports multiple personnel types on the WEB management platform, including staff, visitors, blacklists, and strangers, with real-time traceable access records

（3） Built-in IC card reader for person-card comparison

（4） Dual-camera liveness detection to prevent photo spoofing

（5） Face collection and batch import of lists, making list management more time-efficient

（6） Customizable voice prompts for personalized announcements

（7） Supports image and video advertisement playback

（8） Locally stores up to 20,000 access records

（9） Supports remote WEB upgrades and local USB upgrades

（10） Open interfaces for secondary development and integration

WO501(5 inch outdoor station)

WO801(8 inch outdoor station)

WO101(10 inch outdoor station)

Attendance Terminal

WO501(5 inch attendance terminal with intercom)

WR501(5 inch attendance terminal)

WR502F(5 inch attendance terminal with fingerprinter

WR701(7 inch attendance terminal)

WR502(5 inch attendance terminal)

Villa Intercom

WOZ01(mini outdoor station)

WI701(7 inch indoor monitor)

WI704(7 inch indoor monitor with split-screen）

New Products

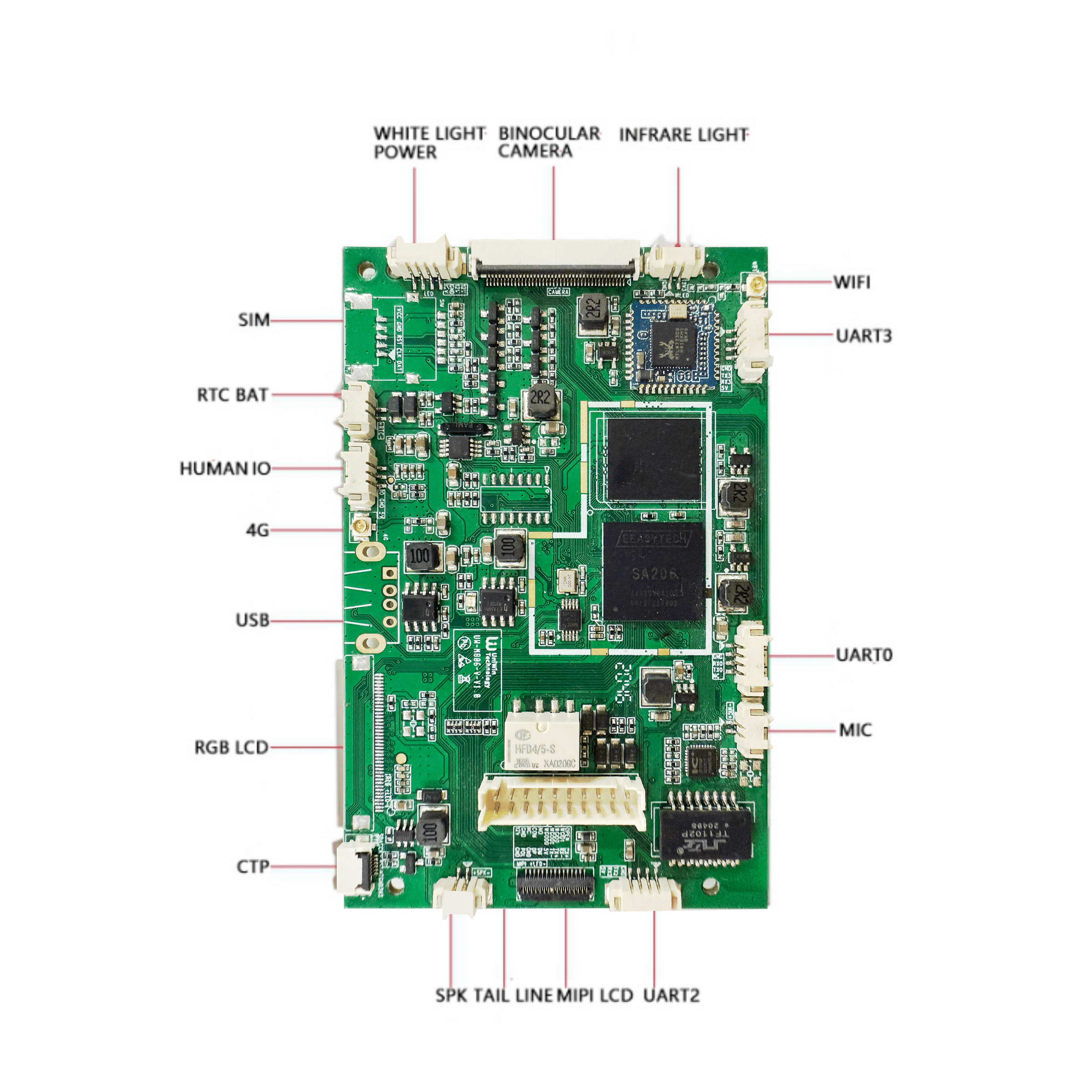

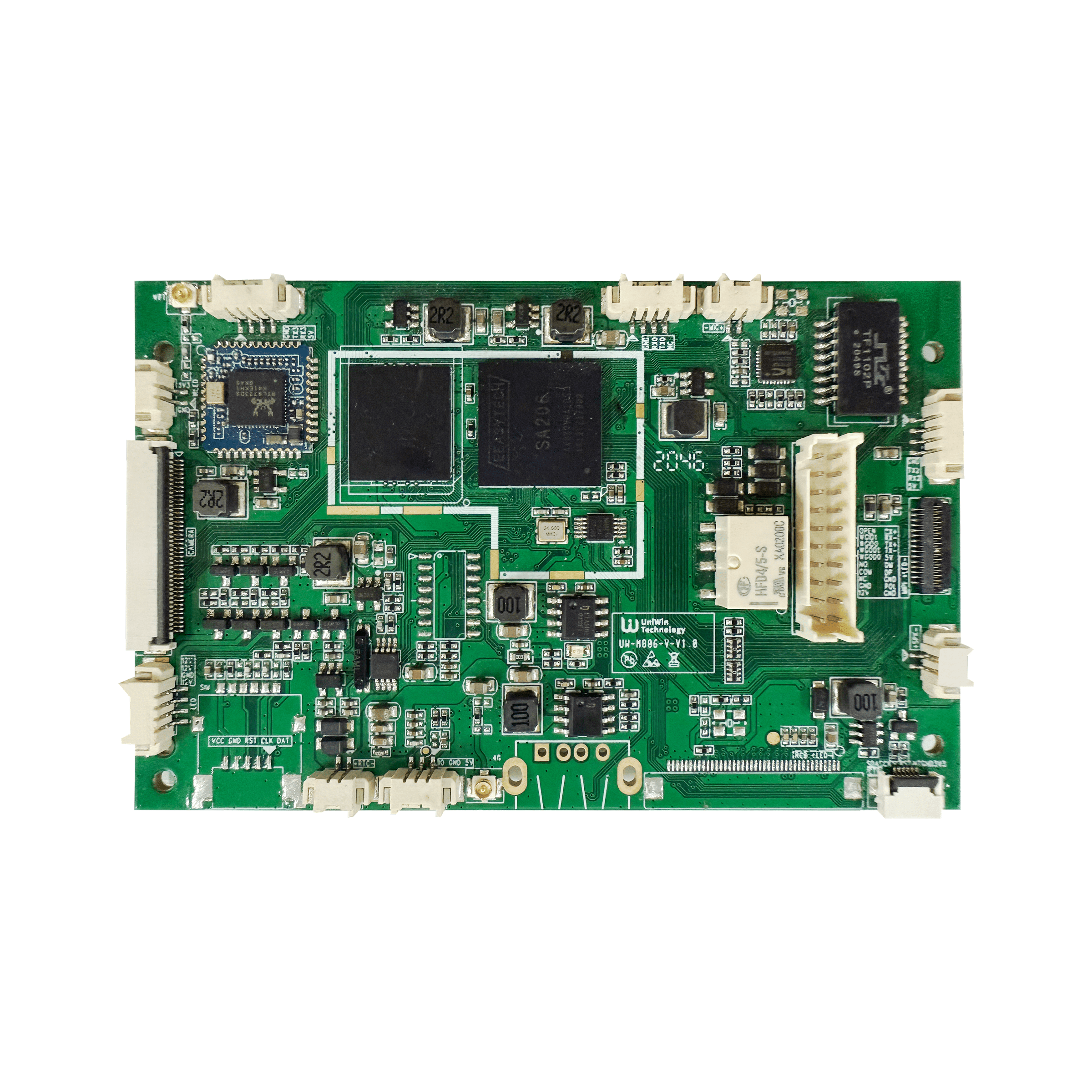

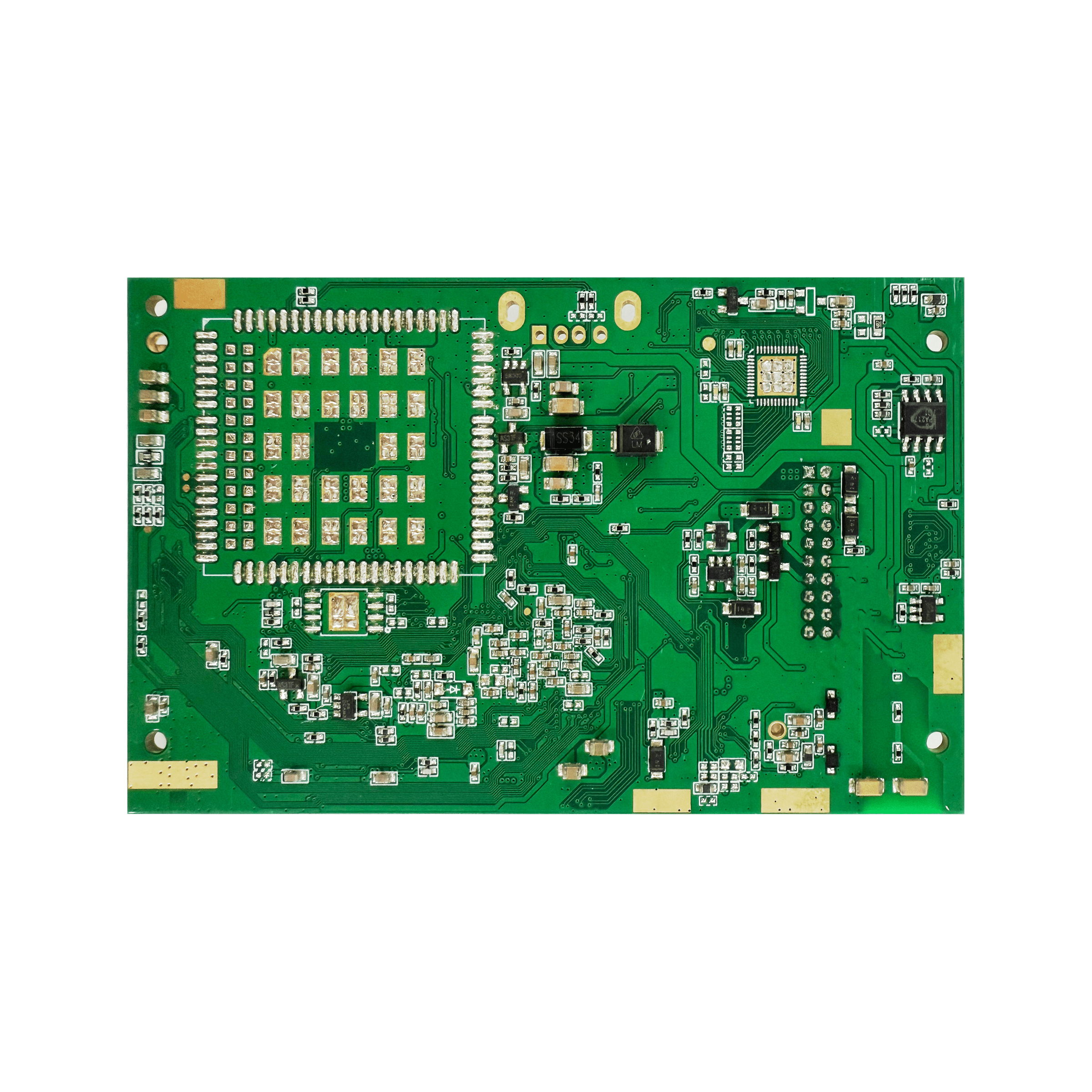

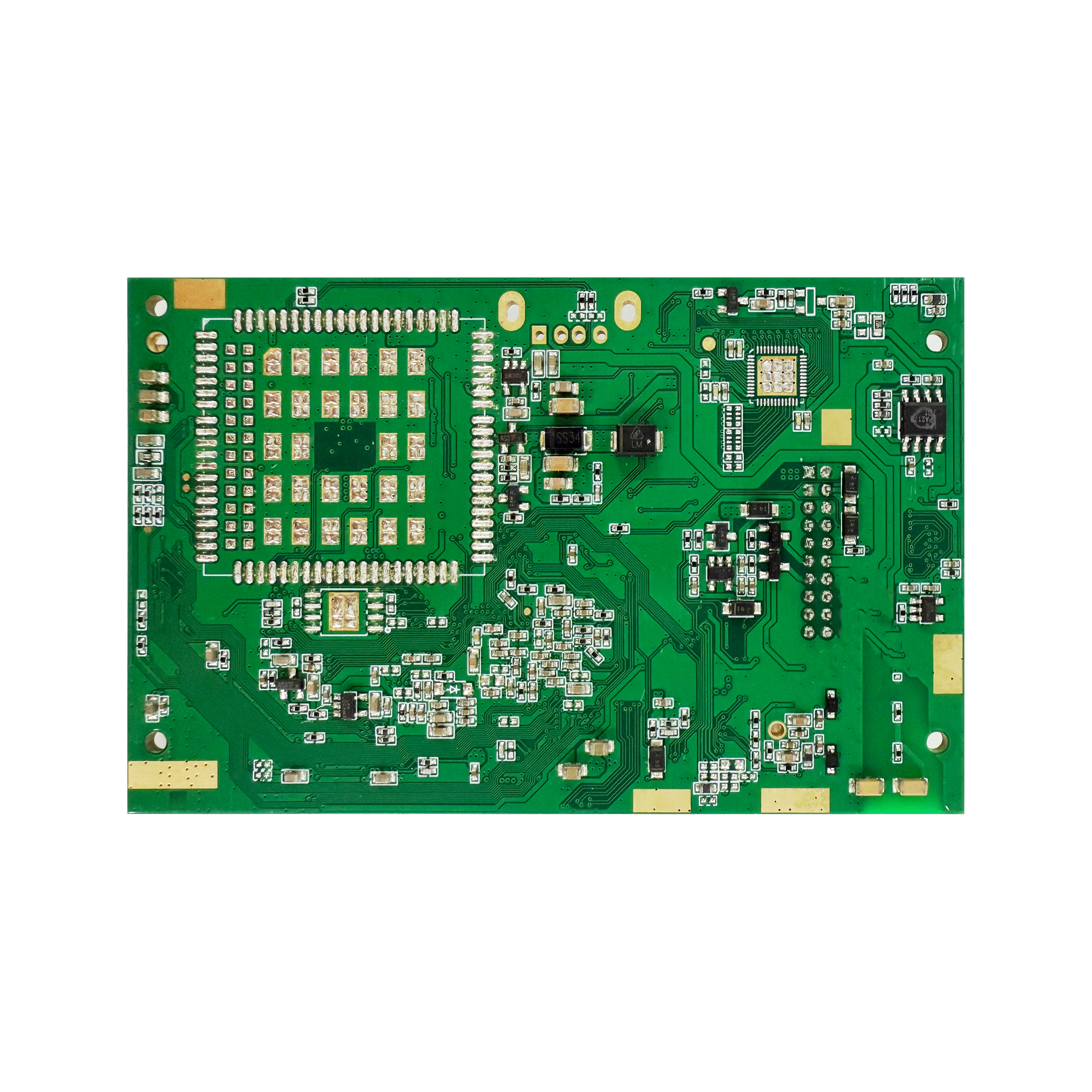

The M806-V is a high-performance Linux-based motherboard designed for face recognition attendance and access control systems. Powered by the EEASYTECH SV806 chip (ARM Cortex-A7, 1GHz) and a 0.6TOPS NPU accelerator, it delivers fast, accurate facial authentication with dual-camera liveness detection to prevent spoofing.
It is ideal for smart offices, secure buildings, and community gates, the M806-V combines AI-powered security with robust expandability.

Operating system	Linux
CPU	EEASYTECH SV806 Arm Cortex-A7 1GHz
Memory (DDR)	DDR3 256MB
Storage (emmc)	EMMC 8GB/16GB/32GB optional (label 8GB)
Display Interface	1*MIPI interface, supports max resolution 720×1280
Display Interface	1*RGB interface, supports max resolution 720×1280
Display voltage	Not available
Screen rotation	Support 0, 90, 180 and 270 degree manual rotation
Touchscreen	1*I2C (support multi-point capacitive touch)
Audio	Supports MIC, 1 microphone interface
Audio	Built-in amplifier, supports 3W 4Ω speaker
NPU	Built-in convolutional neural network accelerator NPU, 0.6T computing power
3G/4G	Support 4G (optional)
USB	1*USB_OTG
Serial Port	3*TTL (one port is used as Debug port by default)
IO	Supports infrared or microwave human motion detection module
Network	RJ45 standard interface, built-in Ethernet
	Equipped with Bluetooth + WiFi module, supports Wi-Fi 802.11b/g/n protocol
	Supports Bluetooth 4.0 protocol
Face database	Support 5000 face databases
Power supply	DC12V/2A
Size	95.4mmx60mmx8mm


Barrier gate passage	school	office building

Overview

Specification

Operating system	Linux
CPU	EEASYTECH SV806 Arm Cortex-A7 1GHz
Memory (DDR)	DDR3 256MB
Storage (emmc)	EMMC 8GB/16GB/32GB optional (label 8GB)
Display Interface	1*MIPI interface, supports max resolution 720×1280
Display Interface	1*RGB interface, supports max resolution 720×1280
Display voltage	Not available
Screen rotation	Support 0, 90, 180 and 270 degree manual rotation
Touchscreen	1*I2C (support multi-point capacitive touch)
Audio	Supports MIC, 1 microphone interface
Audio	Built-in amplifier, supports 3W 4Ω speaker
NPU	Built-in convolutional neural network accelerator NPU, 0.6T computing power
3G/4G	Support 4G (optional)
USB	1*USB_OTG
Serial Port	3*TTL (one port is used as Debug port by default)
IO	Supports infrared or microwave human motion detection module
Network	RJ45 standard interface, built-in Ethernet
	Equipped with Bluetooth + WiFi module, supports Wi-Fi 802.11b/g/n protocol
	Supports Bluetooth 4.0 protocol
Face database	Support 5000 face databases
Power supply	DC12V/2A
Size	95.4mmx60mmx8mm
